9
c) kit 2 FO daisy chain
d) kit 2 LAN daisy chain
e) kit FO/LAN daisy chain

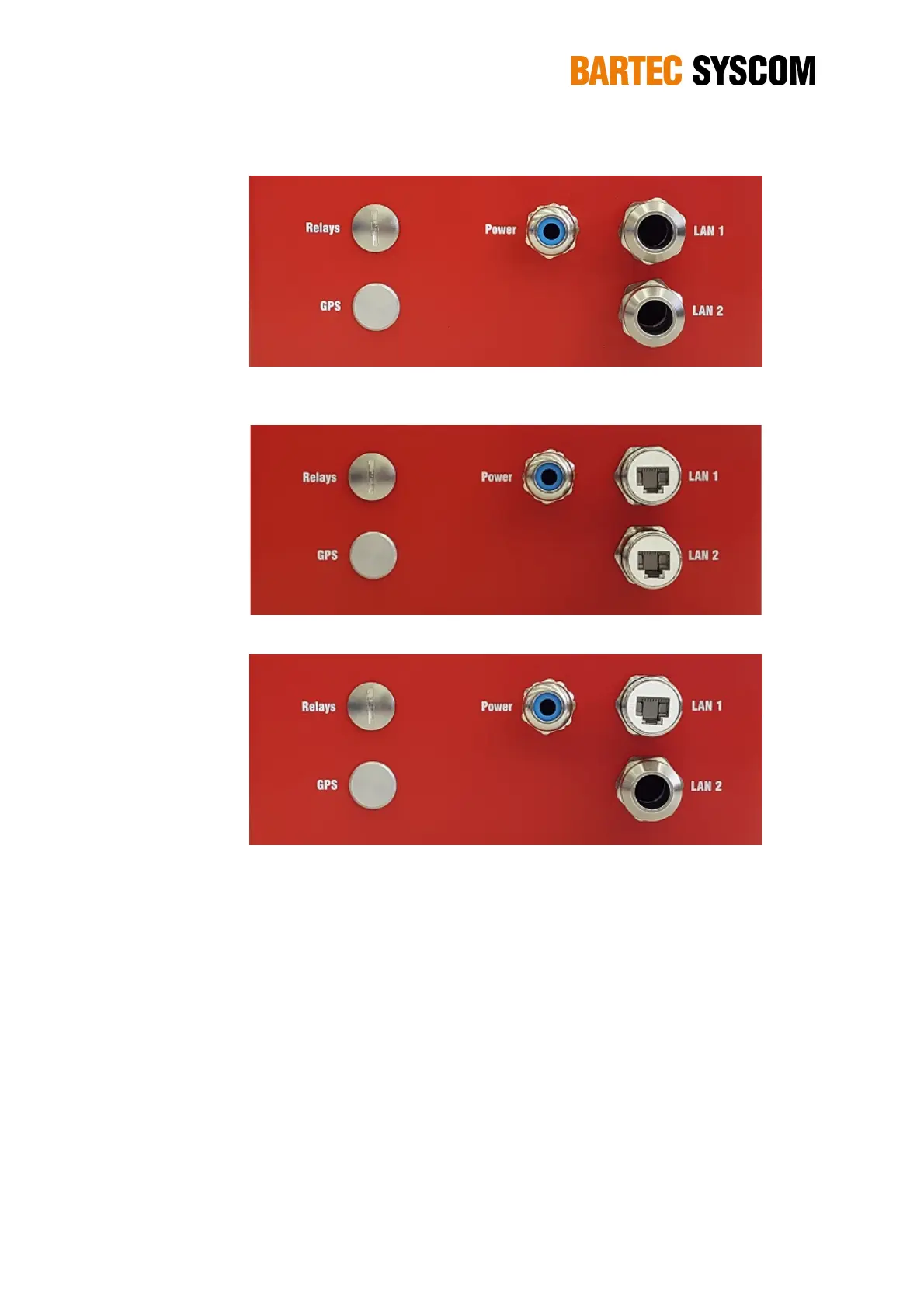

Figure 2.2.1. View of the different panel mounts of the MR3000SB showing the sockets for Relays, Power,
LAN1, LAN2 and GPS.
2.2.1. Power
Here you connect the MR3000SB to:
• the main power (100-240VAC, 50-60 Hz) in case the AC version has been purchased
• to an external DC (10-36 VDC) source if the DC version has been purchased
2.2.2. LAN 1
Here you connect the Fiber optic cable (or the copper Ethernet cable, based on the kit that has
been ordered) – for further detail check chapter 3.1.1 and 3.1.2.
M20 cable gland 6-13 mm and ST connectors are used. The FO type that should be used is
Multimode OM2 fiber with wavelength 1300 nm, 50/125 μm, Rx/Tx, ST connectors.
