8
2.2 Connectors

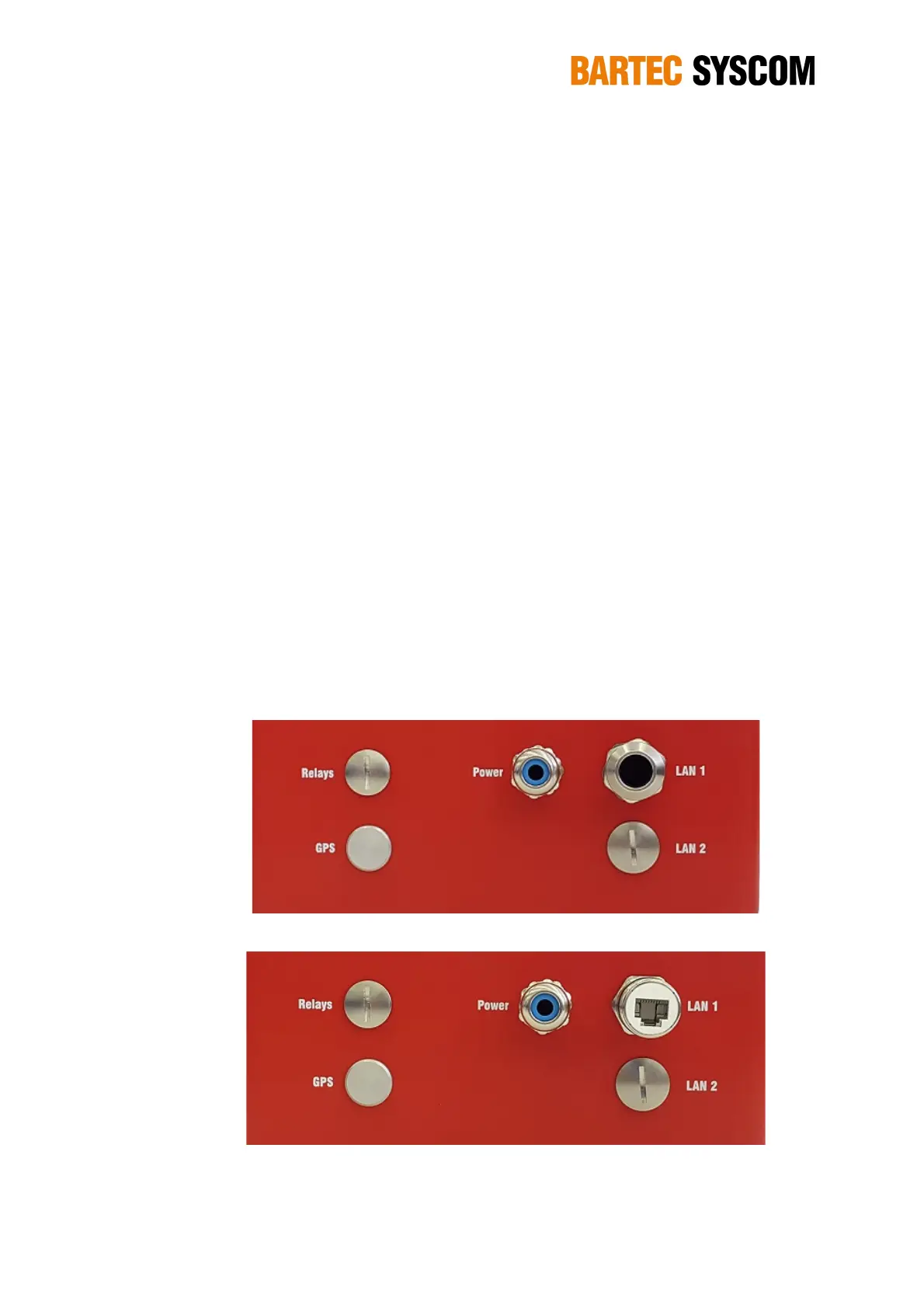

The MR3000SB provides rugged cable glands and caps depending on the version, as it is shown in
Figure 2.2.1:
• Power for 100-240VAC power supply or DC/DC (10-36 VDC).
• Relays for relay outputs.
• GPS to connect an external GPS antenna. If the GPS antenna is not ordered, then the
connector is replaced by a cap, directly inserted in the red box.
• LAN. The MR3000SB has 5 different panel mount configurations (see Figure 2.2.1),
depending on the kit that has been ordered:
• 1 cable gland for fiber optic cable (kit 1 FO)
• 1 RJ45 connector (kit 1 LAN)
• 2 cable glands for fiber optic cables (kit 2 FO daisy chain)
• 2 RJ45 connectors (kit 2 LAN daisy chain)
• 1 cable gland for fiber optic cable and 1 RJ45 connector (kit FO/LAN daisy chain)
a) kit 1 FO
b) kit 1 LAN
