Bartec Syscom MR3000C User Manual

39
In the table Recording list below all recordings currently stored on the SD card are shown. New
files show up after clicking on the refresh icon. Double-clicking on a file starts the download of the
file and the waveform is shown using the PC software EAWlight (only available for WINDOWS
PCs). You may select one or many files for download and further analysis on the PC.
Data can also be sent automatically or downloaded and then uploaded on the SCS Cloud software.
Please refer to section 5.3.8 and to the description on our website:
http://www.syscom.ch/products/software/scs-cloud-software/

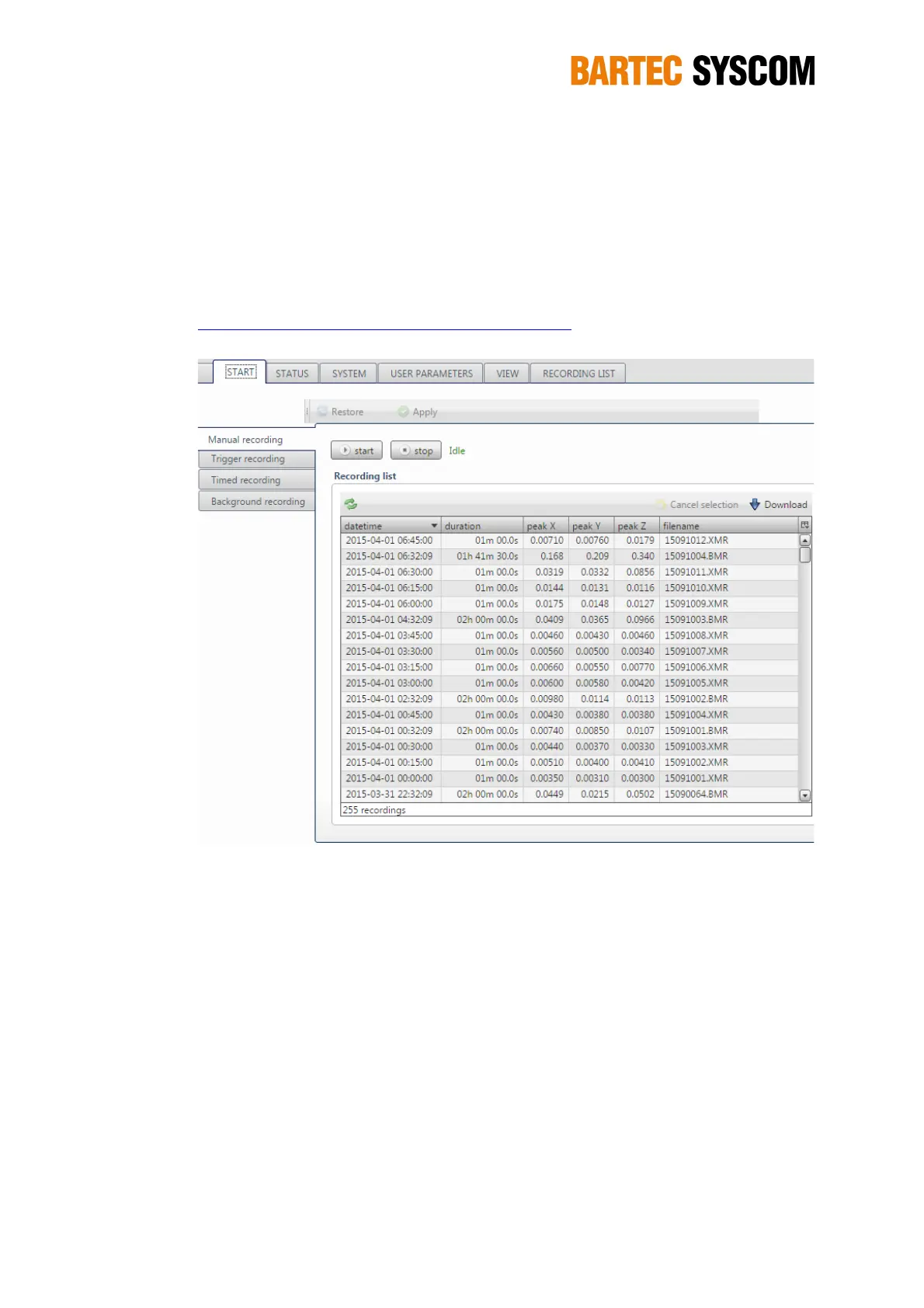

Figure 5.1.1. Manual recording interface.
5.1.2. Trigger recording
The trigger is a feature that allows the SB to start recording if the signal reaches the threshold level.
In this case the MR3000SB is “triggered”. When the signal comes back below the threshold level,
the trigger is “idle” – see section Activity on the Status screen.
In the Time section you can set-up the duration of the recording
 The Pre-event indicates how much time is recorded before the MR3000DMS is triggered.
The Pre-event time depends on the sampling rate. For example, up to 30 seconds can be
set for a sampling rate of 1000 Hz.
 The Post-event indicates how much time is recorded after the trigger has become idle. The
post-event time can be chosen up to 100 seconds. If the MR3000DMS is triggered again
during the post-event time, the post-event countdown will restart from the beginning and the
DMS keeps on recording in the same file.

Bartec Syscom MR3000C Specifications

General

Category	Measuring Instruments
Type	Seismic Recorder
Channels	3
GPS Synchronization	Yes
Data Storage	Internal Flash Memory
Communication Interface	Ethernet, USB
Operating Temperature	-20°C to +60°C
Protection Class	IP67
Resolution	24 bit
Sampling Rate	Up to 1000 samples per second
Accuracy	0.1%
Response Time	1 ms

Summary

1. INTRODUCTION

1.1 Features

Details the main capabilities and characteristics of the MR3000SB device.

1.2 Specifications

Lists the operational parameters and environmental limits of the MR3000SB.

1.3 Applications

Outlines the primary use cases for structural monitoring with the MR3000SB.

2. HARDWARE

2.1 Mechanical Drawing – Overview

Provides visual diagrams and dimensions of the MR3000SB unit.

2.2 Connectors

Describes the various input/output ports and their functions on the MR3000SB.

2.3 Status LEDs

Explains the meaning of the status indicator lights on the MR3000SB.

2.4 Opening the Lid

Details the procedure and precautions for accessing the internal components of the MR3000SB.

4. OPERATING WITH THE MR3000SB

4.1 Preparing the SB for field use

Guides on setting up the MR3000SB for deployment and data acquisition in the field.

4.2 Power Options

Explains the different methods for powering the MR3000SB, including battery and mains.

4.3 Additional services

Covers supplementary features like embedded SFTP server for data access.

5. The Web User Interface (WebUI)

5.1 Start

Details how to initiate recording sessions and access recent data via the WebUI.

5.2 Status

Describes how to monitor the operational status and key indicators of the MR3000SB.

5.3 System

Covers configuration of hardware interfaces and software services like LAN, DDNS, and VPN.

5.4 User Parameters

Explains how to configure alerting and general device parameters not related to acquisition.

5.5 VIEW

Describes how to view real-time waveform data and background recording levels.

5.6 Master functionality

5.6.1. Config / Status and Master/slave configuration

Explains how to set up and manage a network of MR3000SB/MR3000C devices.

5.6.2. Common Trigger

Details configuring synchronized trigger events across multiple networked MR3000SB units.

5.7 Recording List

Provides access to stored event files and options for immediate download.

5.8 System warning

Describes how the system alerts users to configuration issues or errors.

5.9 Rest API

Information on the REST API for programmatic interaction with the MR3000SB.

6. Available spare parts and accessories

Appendix A: SAFETY INSTRUCTIONS

Crucial safety guidelines for installation, operation, and handling of the MR3000SB.
