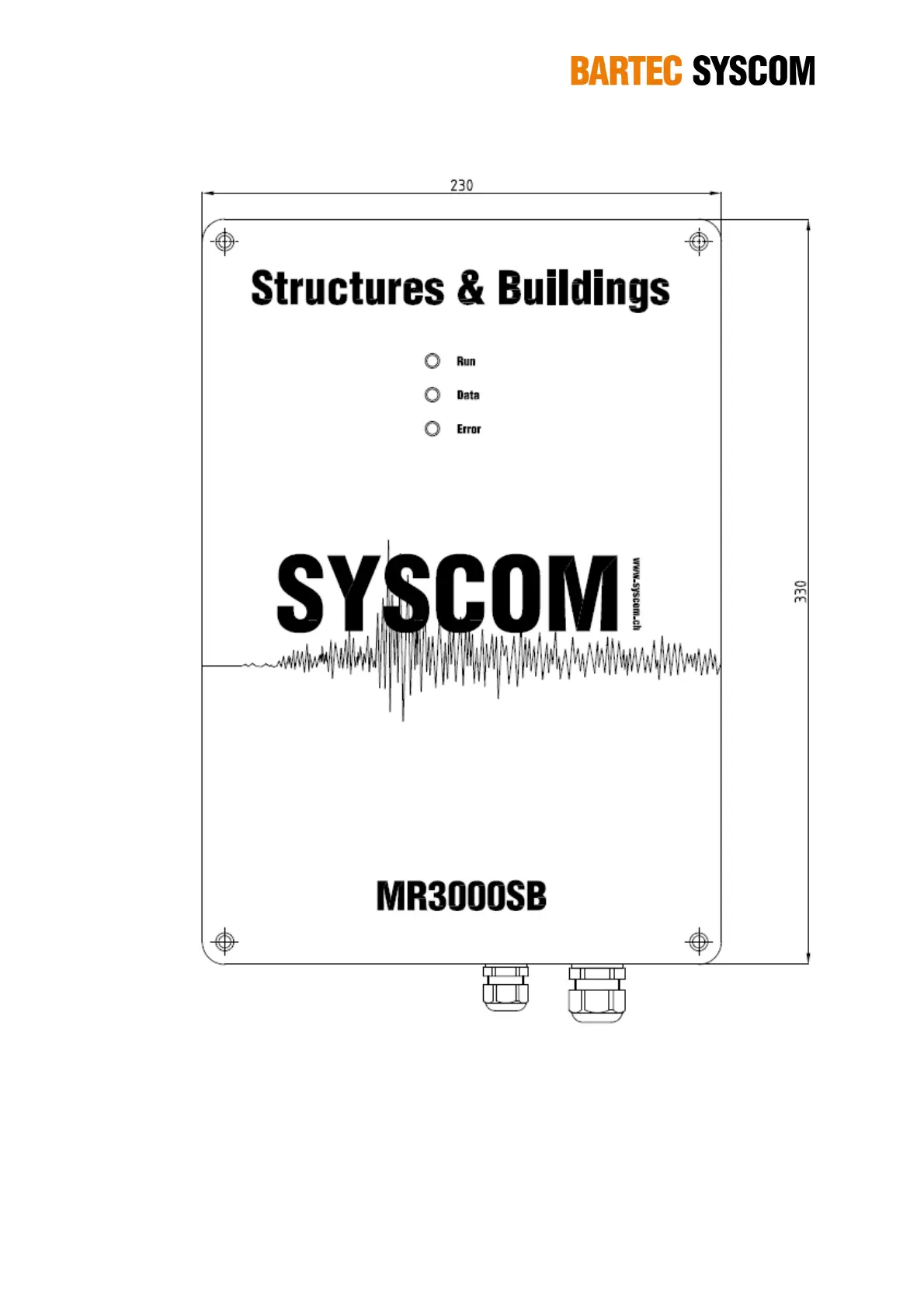

Figure 2.4.15. Drawing of the SB. The values are in mm.
In case of a mounting platform, the same holes are used to fix it to the MR3000SB. This application
must be preferred in cases where the surface of installation is not perfectly smooth. In Figure 2.4.16
it is possible to have all the information about the distances.
Syscom provides 8 screws M8 in the kit with the mounting plate. The tools can be seen in Figure
2.4.17.
