75
software to visualize the data) installed, the file (peak or event) is shown immediately. You may use
EAWlight to perform a Frequency Analysis (FFT) of the waveform and to print the waveform.
You may select several files and then click on the Download button. The files are packed in a
single Zip-File and transferred to the PC. The Zip-File is stored in the DOWNLOAD directory of the
PC.

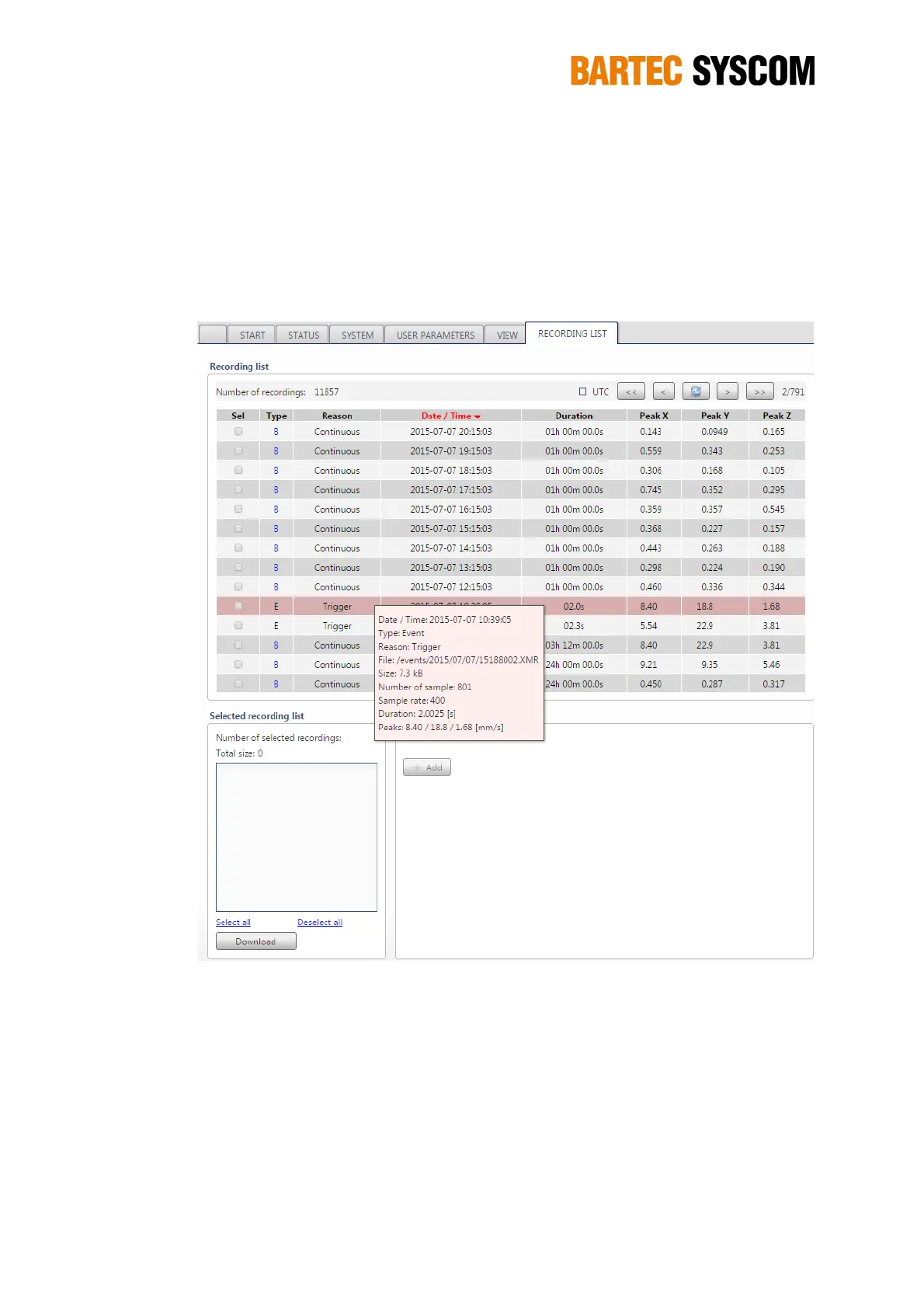

Figure 5.7.1. Section dedicated to the recording list.
A more sophisticated method is to enable the Filters section and to click on the Add button (see
Figure 5.7.2). You may then select all the files matching certain criteria (e.g. all the files that have
been recorded since a specific date). You may use more than one line to narrow down your
selection.
NOTE: It is recommended to erase the SD-card at the beginning of the measurements at a specific
location and to keep all the files on the SD-card throughout the whole monitoring period. In order to
have seamless (without any interruption) recordings (peak files if the vibration level was below the
trigger threshold or additionally event files if the vibration level exceeds the trigger threshold)
throughout the whole monitoring period, it is NOT possible to erase single files. The SD-card is
considered as documentary evidence.
