DECS-150 Front Panel
2 • Front Panel
The DECS-150 front panel consists of 11 status LEDs. A USB port may be mounted on the front or rear
panel of the DECS-150. Refer to the USB Mounting Option in the style chart in the Introduction section.
Front Panel Illustration and Description
DECS-150 indicators are illustrated in Figure 2-1 and described in Table 2-1.

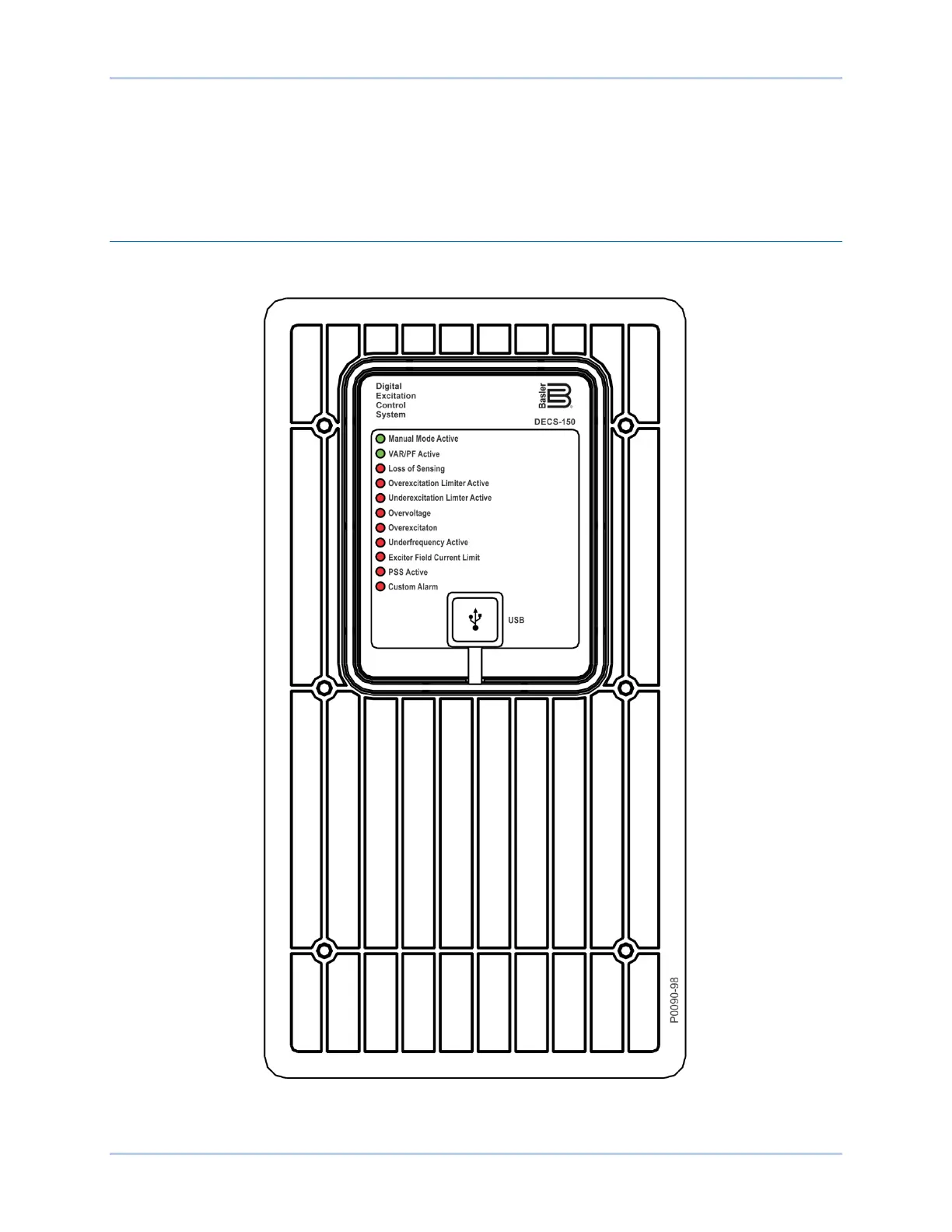

Figure 2-1. Front Panel Indicators
