DECS-150 Metering
11 • Metering
The DECS-150 provides comprehensive metering of internal and system conditions. These capabilities
include extensive parameter metering, status indication, reporting, and real-time metering analysis.
BESTCOMSPlus
®
Metering Explorer
DECS-150 metering is accessed through the BESTCOMSPlus
®
metering explorer. The metering explorer
is located in the upper left portion of the application window.
BESTCOMSPlus metering is not available when the DECS-150 is
powered through the USB port when no operating power is applied.
Metering Screen Docking
A docking feature within the metering explorer allows arrangement and docking of multiple metering
screens. Clicking and dragging a metering screen tab displays a blue, transparent square, several arrow
boxes, and a tab box. These docking elements are illustrated in Figure 11-1.

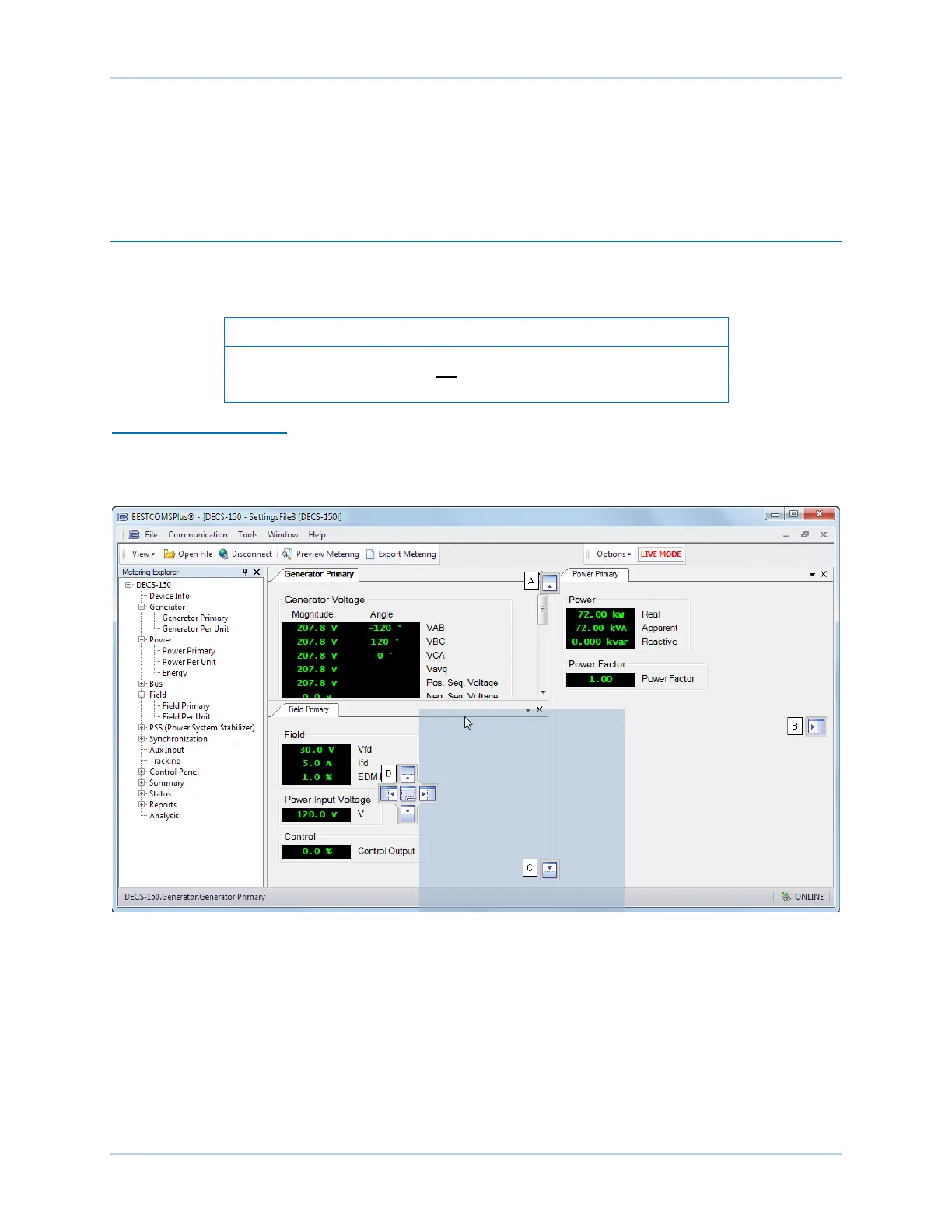

Figure 11-1. Metering Screen Docking Controls
Dragging the blue square to the “up” (locator A), “right” (locator B), or “down” (locator C) arrow box places
the selected metering screen across the top, along the side, or at the bottom of the window. Once placed,
the screen’s thumbtack icon can be clicked to dock the screen on the corresponding top, right, or lower
bar. A docked screen is viewed by hovering the mouse pointer over the docked screen.
Dragging the blue square to one of the four arrow boxes (locator D) places the screen inside the selected
window according to the arrow box selected. A metering screen can be placed as a tab inside the
selected window by dropping the screen on the tab box at the center of the four arrow boxes.
Dragging the blue square anywhere other than one of the arrow/tab boxes places the selected metering
screen as a floating window. Double-click near the top of the screen to dock.
