Basler DECS-150 - Page 137

9492600990 19-3

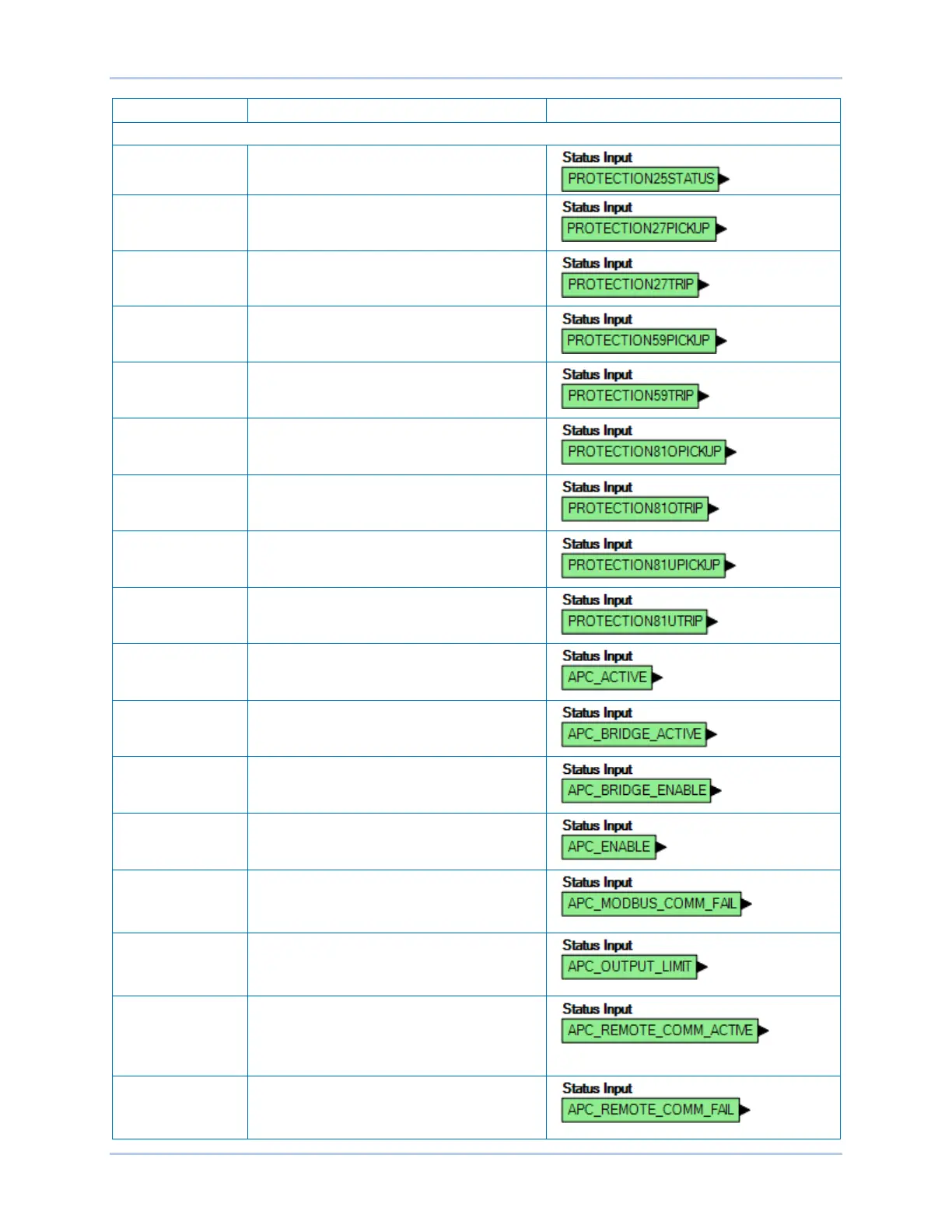

DECS-150 BESTlogic™Plus
Name
Description
Symbol
Status Inputs
25 Sync Status
True when the machine/bus differences fall
within the setting for each parameter.
27 Undervoltage
Pickup
True when the undervoltage pickup threshold
is exceeded and the element is timing
towards a trip.
27 Undervoltage
Trip
True when the undervoltage pickup threshold
is exceeded for the duration of the time
delay.
59 Overvoltage
Pickup
True when the overvoltage pickup threshold
is exceeded and the element is timing
towards a trip.
59 Overvoltage
Trip
True when the overvoltage pickup threshold
is exceeded for the duration of the time
delay.
81 Overfrequency
Pickup
True when the overfrequency pickup
threshold is exceeded and the element is
timing towards a trip.
81 Overfrequency
Trip
True when the overfrequency pickup
threshold is exceeded for the duration of the
time delay.
81
Underfrequency
Pickup
True when the underfrequency pickup
threshold is exceeded and the element is
timing towards a trip.
81
Underfrequency
Trip
True when the underfrequency pickup
threshold is exceeded for the duration of the
time delay.
APC Active
True when Active Power Control (APC)
mode is active.
APC Bridge Active
True when APC Bridge mode is active.
APC Bridge
Enable
True when APC Bridge mode is enabled.
APC Enable
True when APC mode is enabled.
APC Modbus
Comm Fail
True when the APC Adjust Source setting is
set to Modbus and the Remote Control
Failure Timer has expired.
APC Output Limit
True when the Active Power PI controller is
at either its maximum or minimum output
limit.
APC Remote
Comm Active
True while the Remote Control Failure Timer
is active. The Remote Control Failure Timer
is always active and resets frequently, during
good communications.
APC Remote
Comm Fail
True when the Remote Control Failure Timer
has expired for any communication protocol
(defined by the Adjust Source setting).
