Voltage and Current Sensing DECS-150

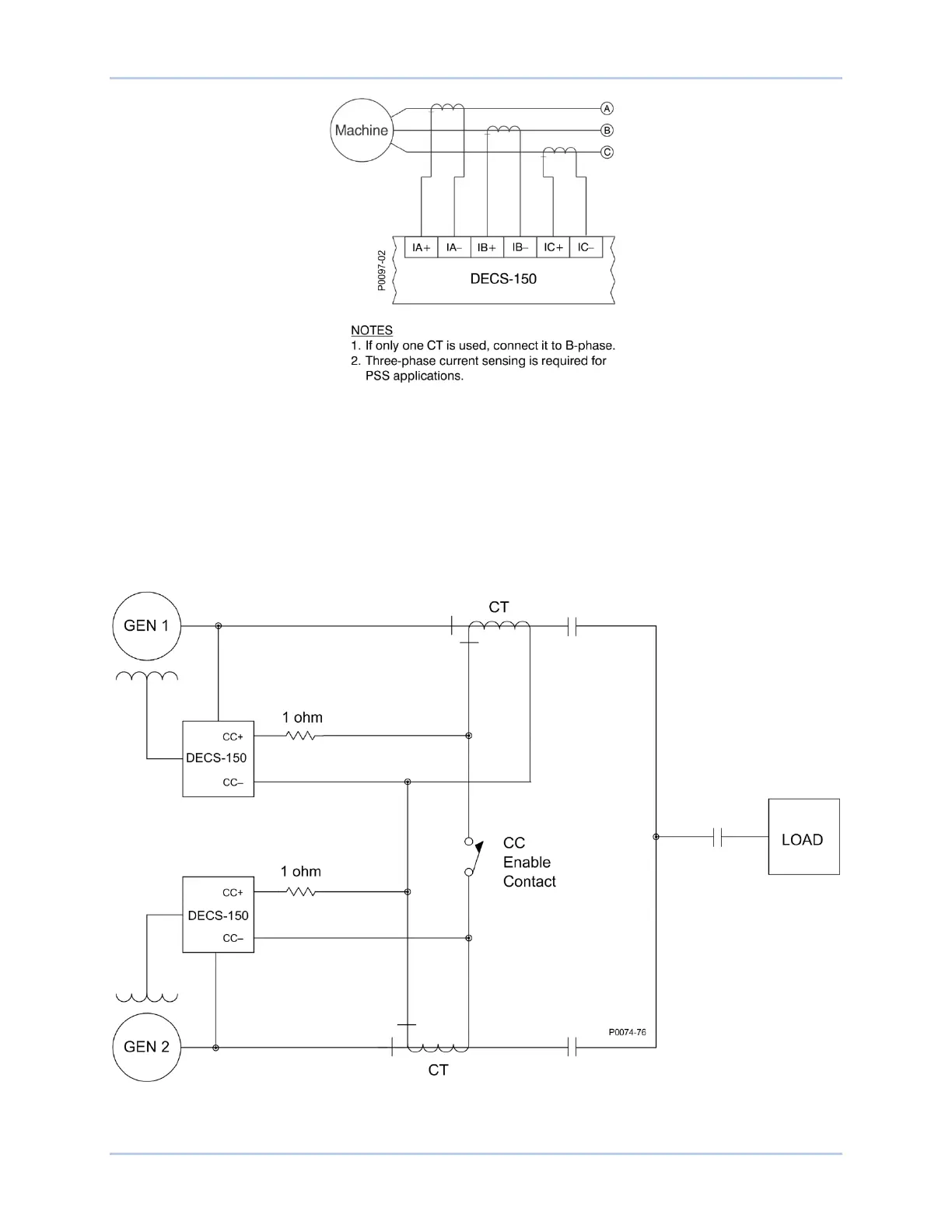

Figure 4-2. Typical Machine Current Sensing Connections
Cross-Current Compensation
Cross-current compensation (reactive differential) mode allows two or more paralleled generators to
share a common reactive load. As shown in Figure 4-3, each generator is controlled by a DECS-150
using the DECS-150 cross-current compensation input (terminals CC+ and CC–) and a dedicated,
external current transformer (CT) to sense generator current. The resistors shown in Figure 4-3 are used
to set the burden and may be adjusted to suit the application. Ensure that the power rating of the resistors
is adequate for the application.
Figure 4-3. Connections for Cross-Current Compensation
