8-8 9492600990
Protection DECS-150
(Disabled). The pickup level for the monitored parameter is defined by a Threshold setting. While the
threshold setting range is broad, you must use a value within the setting range limits for the monitored
parameter. Using an out-of-limits threshold will prevent the protection element from functioning. An
activation delay serves to delay a protective trip after the threshold (pickup) level is exceeded.

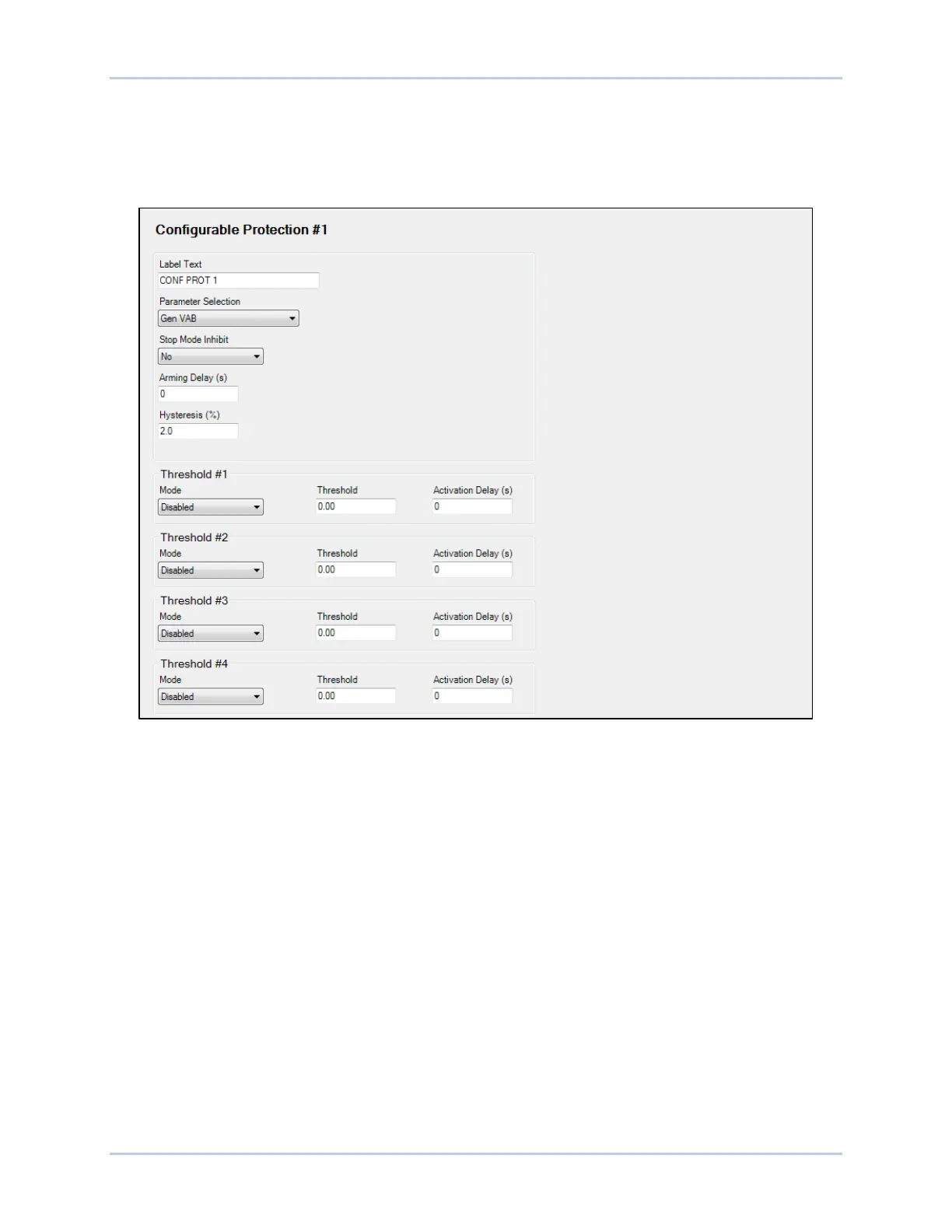

The Configurable Protection #1 screen is illustrated in Figure 8-10.
Figure 8-10. Configurable Protection #1 Screen
