DECS-150 Limiters
Settings that are related to machine ratings can be set in either actual units of voltage or in per unit
values. When a native unit is edited, BESTCOMSPlus automatically recalculates the per unit value based
on the native unit setting and the rated data parameter (on the System Parameters, Rated Data screen)
associated with it. When a per unit value is edited, BESTCOMSPlus automatically recalculates the native
value based on the per unit setting and the rated data parameter associated with it.
Once all per unit values are assigned, if the rated data parameters are changed, BESTCOMSPlus
automatically recalculates all native unit settings based on the modified rated data parameters.
The levels have native units of Primary Amps and the rated data associated with them is Machine Rated
Data, Current (on the System Parameters, Rated Data screen).
Takeover OEL settings are illustrated in Figure 9-6.

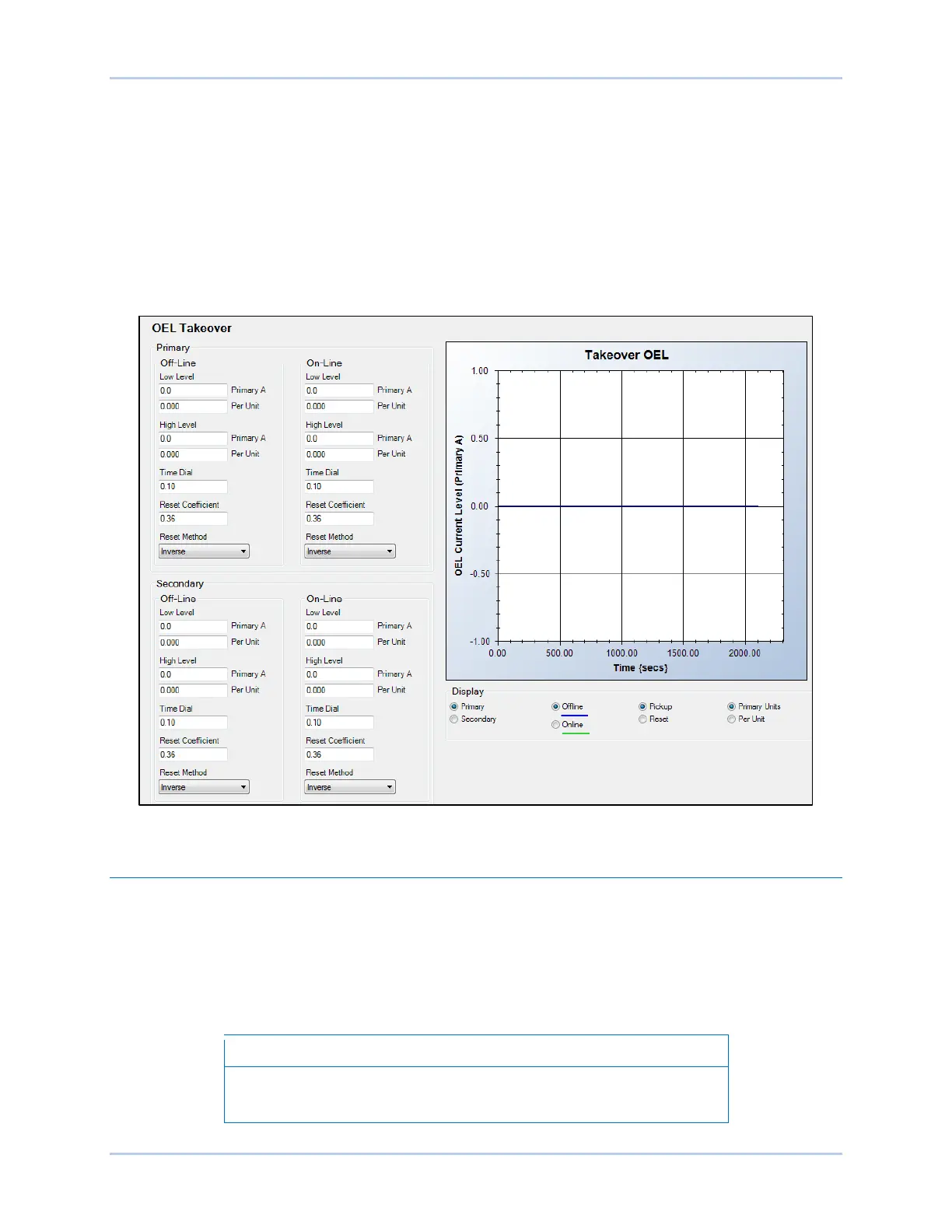

Figure 9-6. Takeover OEL Screen
Underexcitation Limiter
BESTCOMSPlus Navigation Path: Settings Explorer, Operating Settings, Limiters, UEL
Operating a machine in an underexcited condition can cause the stator end iron to overheat. Extreme
underexcitation may lead to a loss of synchronism. The underexcitation limiter (UEL) senses the leading
var level of the machine and limits decreases in excitation to limit end-iron heating. When enabled, the
UEL operates in all regulation modes. UEL behavior in manual mode can be configured to limit excitation
or issue an alarm. This behavior is configured in BESTlogicPlus.
Note
For UEL to operate, the PARALLEL_ENABLE_LM logic block must be
set true in BESTlogicPlus programmable logic.
