9492600990 11-7
DECS-150 Metering

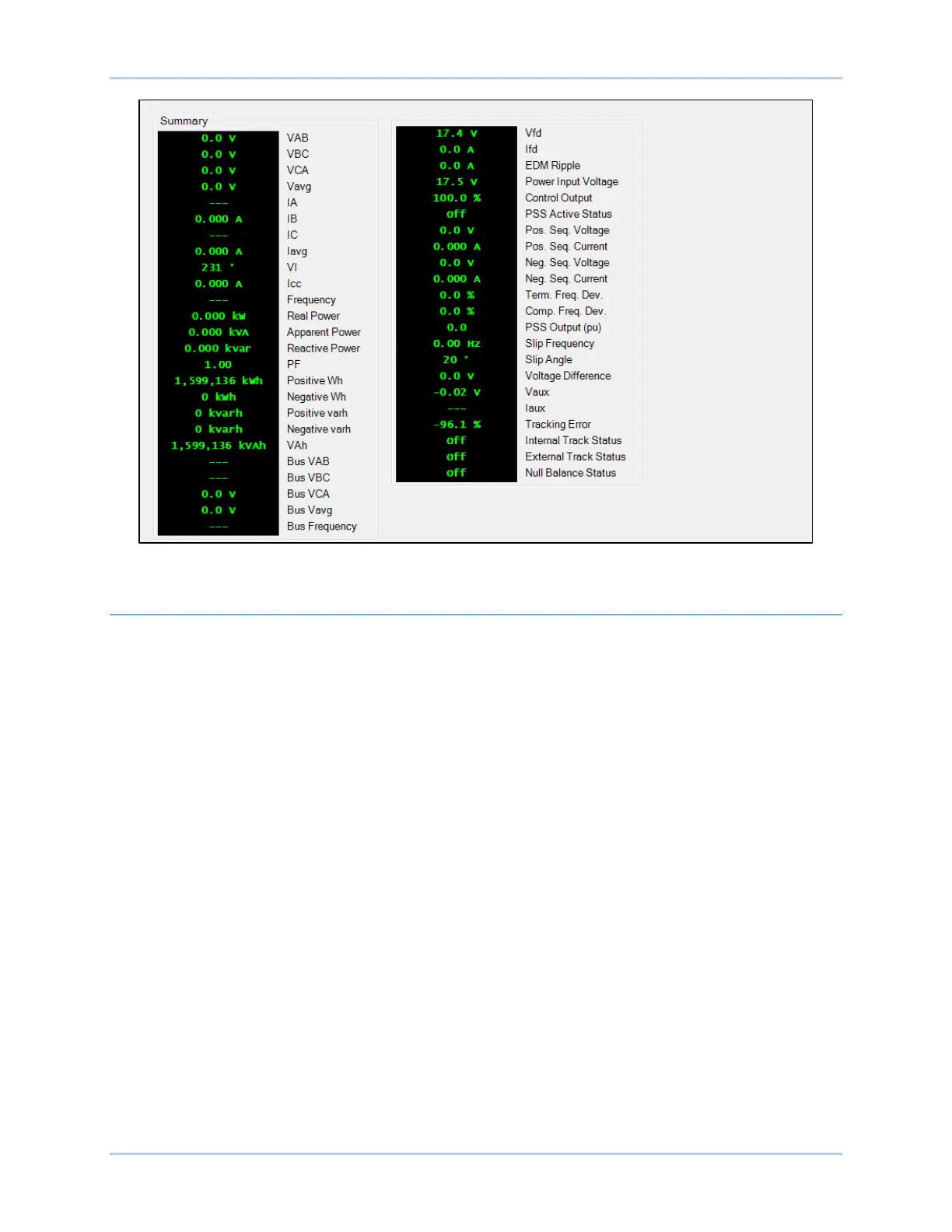

Figure 11-12. Metering Summary Screen
Status Indication
Status indication is provided for DECS-150 system functions, inputs, outputs, network load share, grid
code, configurable protection, alarms, and the real-time clock.
System Status
BESTCOMSPlus Navigation Path: Metering Explorer, Status, System Status
When any of the system functions illustrated in Figure 11-13 are active, the corresponding indicator
changes from gray to green. An inactive function is represented by a gray indicator.
