DECS-150 Reports
of a data log when the parameter increases above the upper threshold setting or decreases below the
lower threshold setting. The parameters available to trigger a data log are listed below.

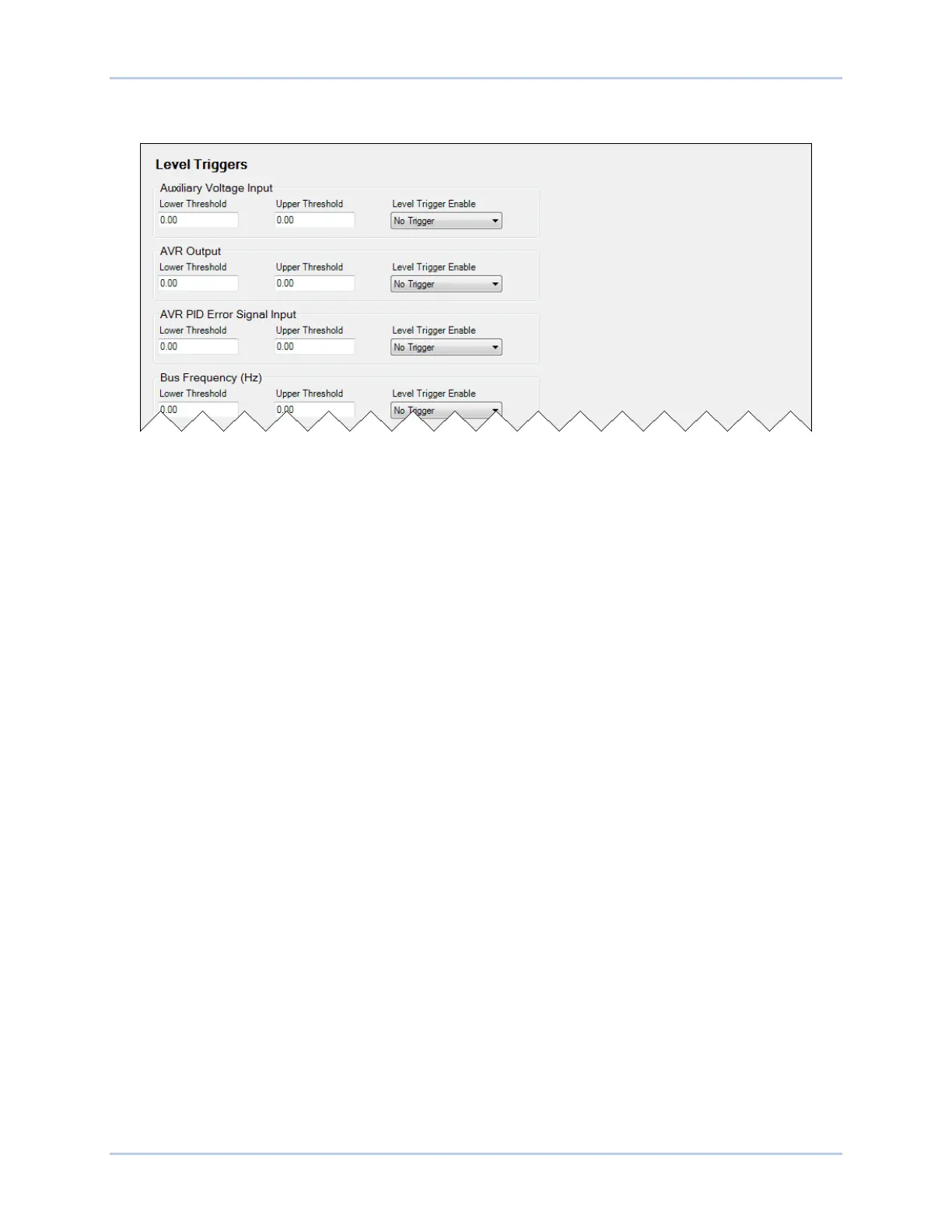

Figure 12-4. Level Triggers Screen
• Auxiliary voltage input
• APC desired reference
• APC error
• APC output
• APC state
• AVR output
• AVR PID error signal input
• Bus frequency
• Bus voltage
• Comp. frequency deviation
• Control output
• Cross current input
• Droop
• FCR error
• FCR output
• FCR state
• Field current
• Field voltage
• Frequency response
• Generator/Motor apparent power
• Generator/Motor average current
• Generator/Motor average voltage
• Generator/Motor current Ia
• Generator/Motor current Ib
• Generator/Motor current Ic
• Generator/Motor frequency
• Generator/Motor power factor
• Generator/Motor reactive power
• Generator/Motor real power
• Generator/Motor voltage Vab
• Generator/Motor voltage Vbc
• Generator/Motor voltage Vca
• Negative sequence current
• Negative sequence voltage
• Null balance level
• OEL controller output
• OEL ref.
• OEL state
• Internal State
• Network Load Share
• Position Indication
• Positive sequence current
• Positive sequence voltage
• PSS electrical power
• PSS filtered mech. Power
• PSS final output
• PSS lead/lag #1
• PSS lead/lag #2
• PSS lead/lag #3
• PSS lead/lag #4
• PSS mechanical power
• PSS mechanical power LP #1
• PSS mechanical power LP #2
• PSS mechanical power LP #3
• PSS mechanical power LP #4
• PSS post-limit output
• PSS power HP #1
• PSS pre-limit output
• PSS speed HP #1
• PSS synthesized speed
• PSS terminal voltage
• PSS torsional filter #1
• PSS torsional filter #2
• PSS washed out power
• PSS washed out speed
• SCL controller output
• SCL PF ref.
• SCL ref.
• SCL state
• Terminal frequency deviation
• Time response signal
• UEL controller output
