Baumuller BUS 6 VC - 4 ASSEMBLY; 4.1 Dimensions

Assembly
V-Controller (BUS 6 VC) 15
Baumüller Nürnberg Electronic GmbH & Co. KG 5.03047.01
4 ASSEMBLY

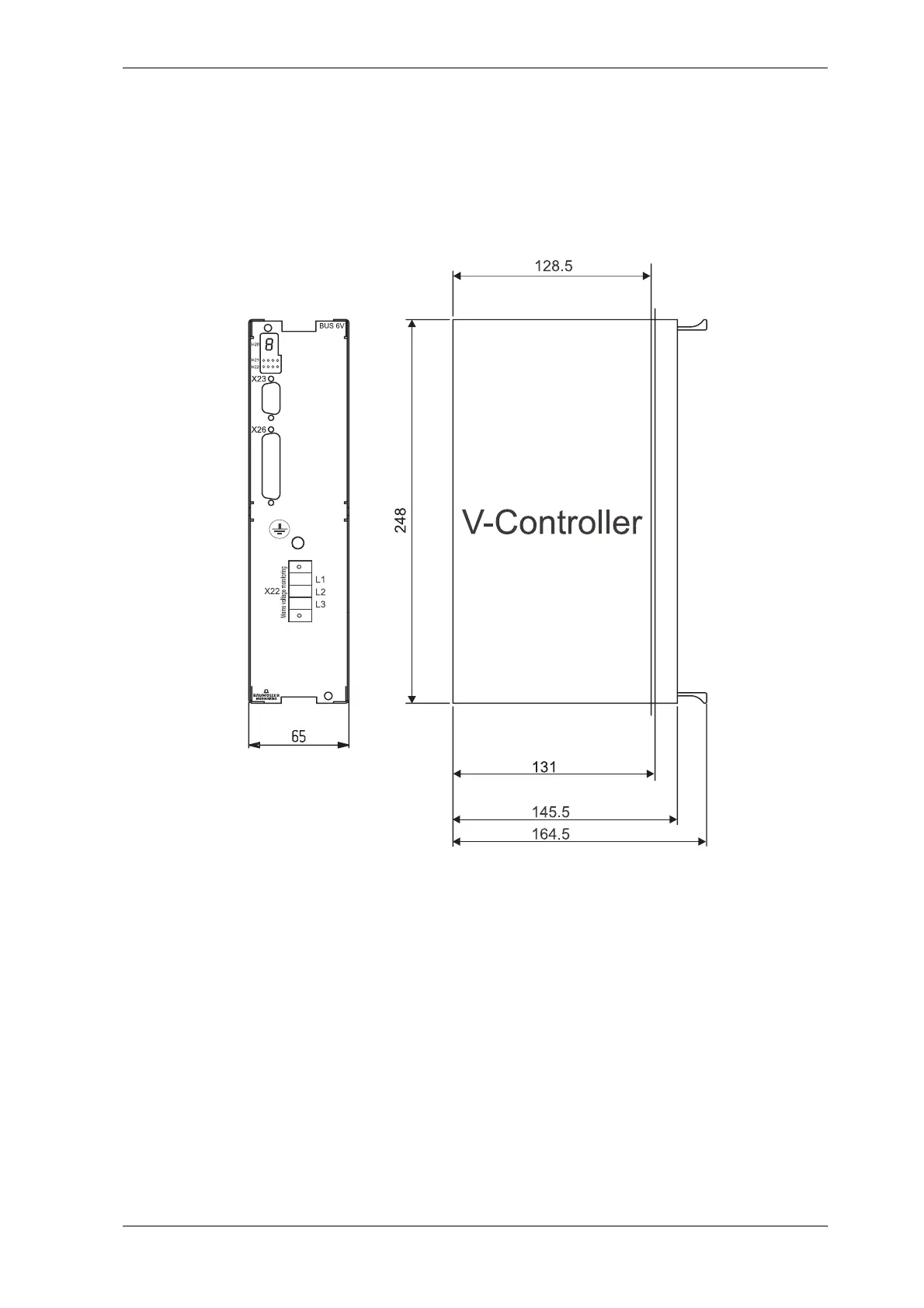

4.1 Dimensions
Plug-in depth of cassette
! BUC 63/64: 131,0 mm
The total depth can only be determined in conjunction with the basic unit. In addition, it is necessary to
take into account the dimensions of the connector to be used (approx. 40 mm).
