Parameter
V-Controller (BUS 6 VC) 73
Baumüller Nürnberg Electronic GmbH & Co. KG 5.03047.01
7.13 Analog Inputs

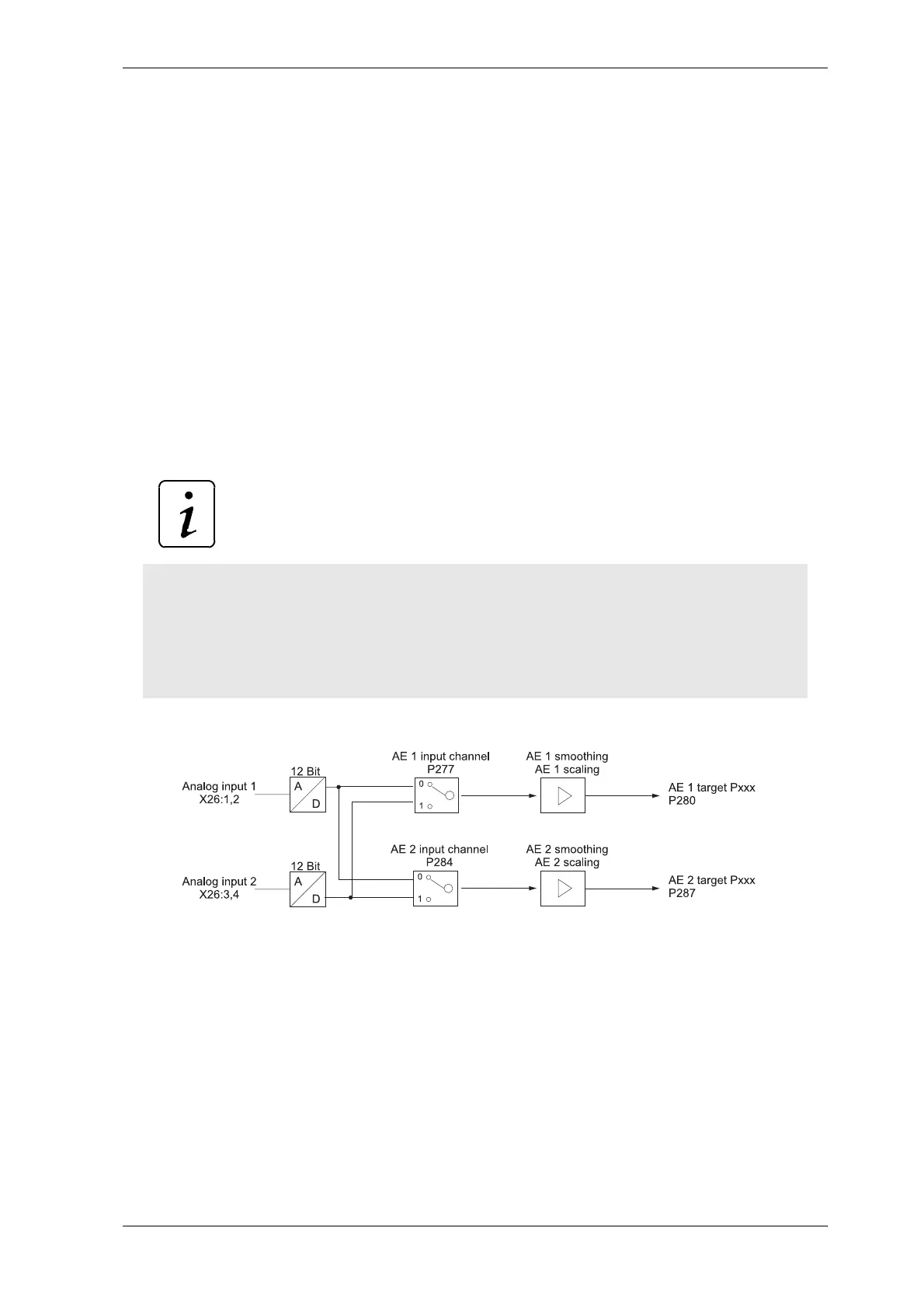

Function
The function module in combination with the 2 analog inputs enable the programming of 2 byte length
parameters. Cycle time of analog inputs: 1 ms
Six parameters are assigned to each input:
– AI input channel: input channel entry
– AI smoothing: smoothing time constant [ms].
– AI scaling: scaling factor entry
– AI offset: offset entry
– AI threshold value: sensitivity of inputs
– AI target Pxxx: target parameter number entry
– AI value: current output value
.
NOTE
The sequence of the parameter setting is irrelevant. Switching is carried out as soon as the target
parameter number has been set.
The target parameter number must be reset to zero in order to deactivate an input. However, the
target parameter still contains the last output value. If AI target Pxxx is deactivated or newly set,
the parameter „AI x offset“ is additionally set to zero.
