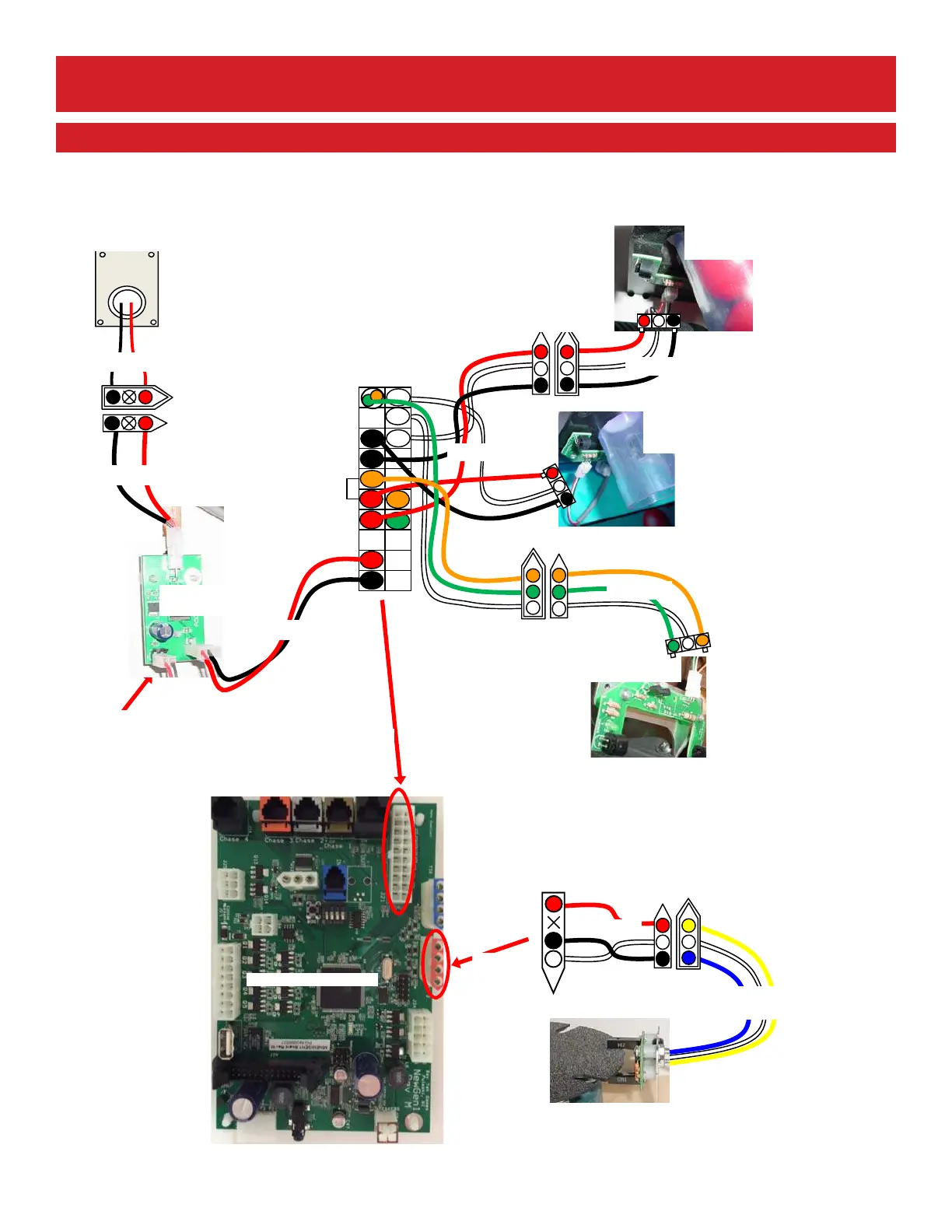

WIRING DIAGRAMS
SENSORS & BALL DISPENSE AUGER MOTOR
ToJ21
connector
ToTIX2
connector
AACB3404
BallDropSensor
AACB3404
BallTubeSensor
AACB3404
BallScoreSensor
AACE5822
12 Volts DC power between the Red
and Black wires.
Normally 3.3 VDC between Black and
White wires (LED is OFF)
When Blocked - 0 VDC between the
Black and White wires. (LED is ON)
AACE5851
12 Volts DC power between the
Orange and Green wires.
Normally 3.3 VDC between Green
and White wires (LED is OFF)
When Blocked - 0 VDC between
the Green and White wires. (LED
is ON)
AACB4401
Carousel Sensor
AACE5831
AAMO5801
AACB3906
Motor Driver BD
AACE5827
AAMO5801
BallDispenseMotor
2.4Ohms
AACE5822
AACE5829
fromPower
Supply
Ohms
Theseconnectors
arecolored
GREEN
These connectors
are colored Yellow
12 Volts DC power between the Red and Black wires.
Normally a ball is blocking sensor and has 0 VDC
between Black and white wires (LED is ON)
When Blocked - 3.3 VDC between the Back and
White wires. (LED is OFF)
AACE5816
AANEWGEN1-PJ/RBN
