Bay Tek Games Quick Drop - Page 25

25

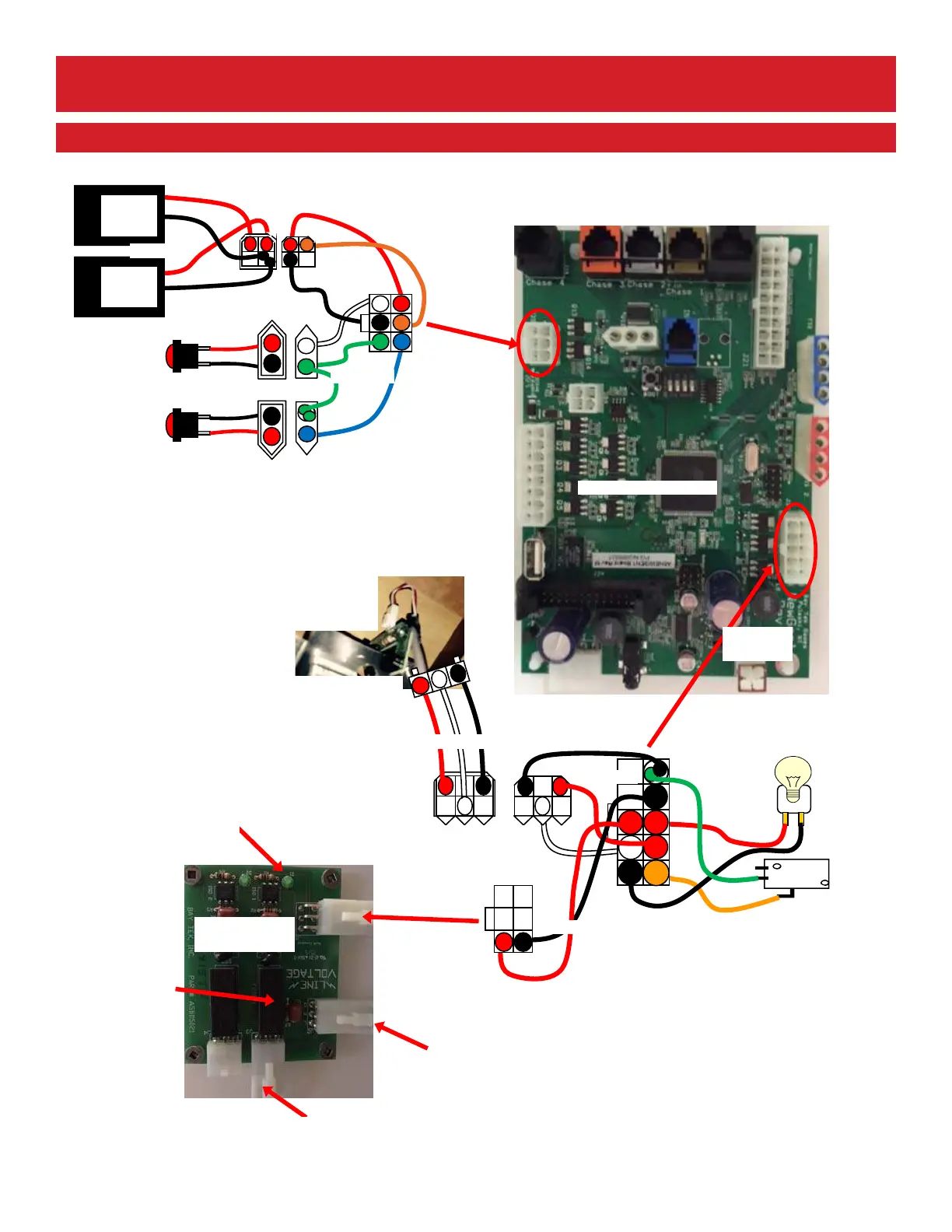

WIRING DIAGRAMS
COUNTERS, MENU BUTTONS, BALL DROP BUTTON, FEED SENSOR & BLOWER
Game
Counter
Ticket
Counter
AACO3320
Menu
Button
Menu
Select
AAPB2700
AAPB2700
AACE5820
A5PB4600
Ball Drop Button
12 Volts DC power between the Black and Red wires.
When Blocked - 0 VDC between the Black and White
wires. (LED is ON)
AACE5815
AACB3404 Ball Feed
Encoder Sensor
Switch is wired
normally open.
Light bulb only is
part # A5LA1003
AACE5853
These connectors
are colored RED
AABD5029-A
AC Driver Board
AACE5815
To J1 on AC
Driver Board for
blower signal
LED is ON when
Newgen is sending
signal to blow balls.
5 Amp mini fuse is
located inside this
box. (A5FUSE4)
To J25
connector
To J24
connector
AACE5803
AC in from
power strip
AABL3200
AC out to
blower
AANEWGEN1-PJ/RBN
