10
AXE MASTER SETUP

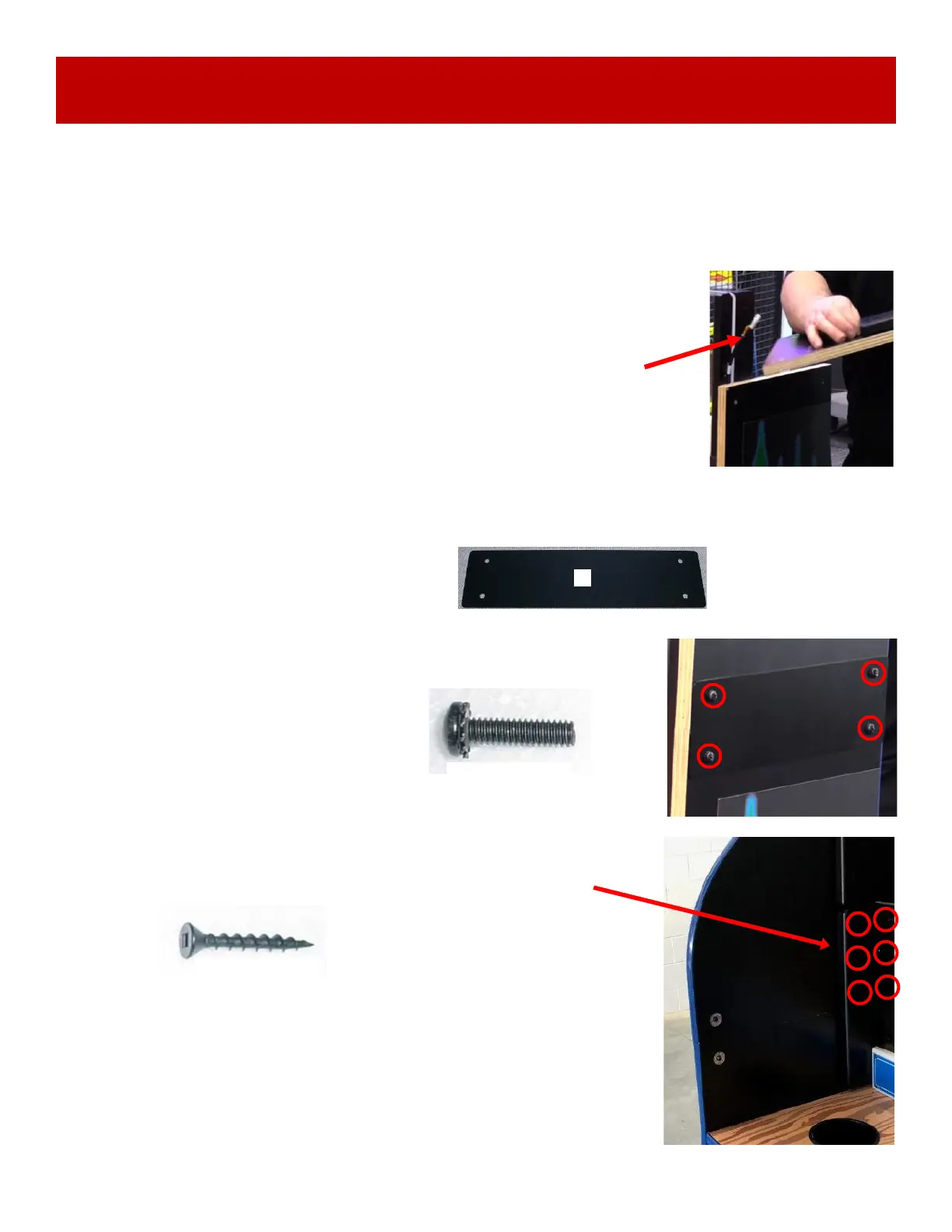

Install the plate across the wood pieces of the cabinets
with 4 of the black ¼-20 X 1 Phillips head
bolts using a # 3 Phillips Head bit.
A5BOPH312
Locate the 1 of medium metal connector plates.
(Label D) (Part # A5ME29011)
Secure the inside of the right upright to the black plastic using
6 of the black 6 X 1 1/4” screws using a # 2 Square Head bit.
A5SCFH040
Locate piece K - the front left side upright. (Part # AACA29057)
The will be a cable inside the groove - connect this cable with the cable
coming up from the lower front console cabinet. (CE29070 to CE29069)
The wire colors should match up across the connectors.
Connect this connector and tuck the access wire up inside the groove.
Place left side upright flat against lower front console cabinet.
Ensure the cable does not get pinched between the wood sections.
D
