34

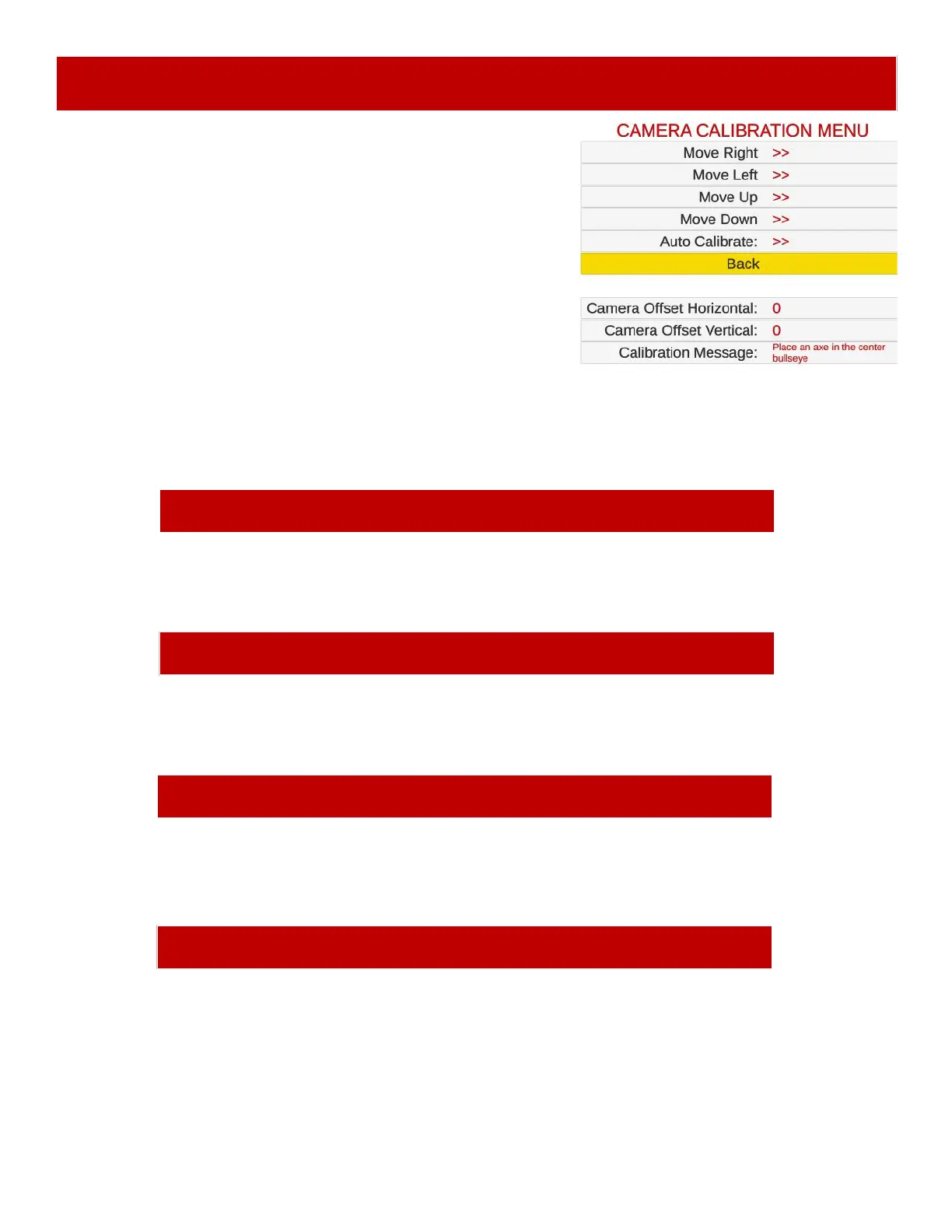

CAMERA CALIBRATION MENU
Scroll through the options by pressing the MENUbutton.
Change selection with the SELECTbutton.
Scroll to BACKand press the SELECTbutton to go
back to the main menu.
Move Right
Moves the camera frame to the right the distance of 1 pin.
Press this if the real Axe on the playfield is more to the right than the video representation on the monitor.
10 represents a width of 1 finger pin on the playfield.
Move Left
Moves the camera frame to the left the distance of 1 pin.
Press this if the real Axe on the playfield is more to the left than the video representation on the monitor.
10 represents a width of 1 finger pin on the playfield.
Move Up
Moves the camera frame up the distance of 1 pin.
Press this if the real Axe on the playfield is higher than the video representation on the monitor.
10 represents a height of 1 finger pin on the playfield.
Move Down
Moves the camera frame down the distance of 1 pin.
Press this if the real Axe on the playfield is lower than the video representation on the monitor.
10 represents a height of 1 finger pin on the playfield.
The following 4 options are for fine-tuning only.
Please use the Auto Calibrationselection on the next page.
