AACB9605-CBL

I/O Aux Board

Left Side

Board Address

Both Dips OFF

A5CORD13000

USB communication

to motherboard

Red and Yellow

Communication

LEDs ON

Green

Power

LED

Flashing

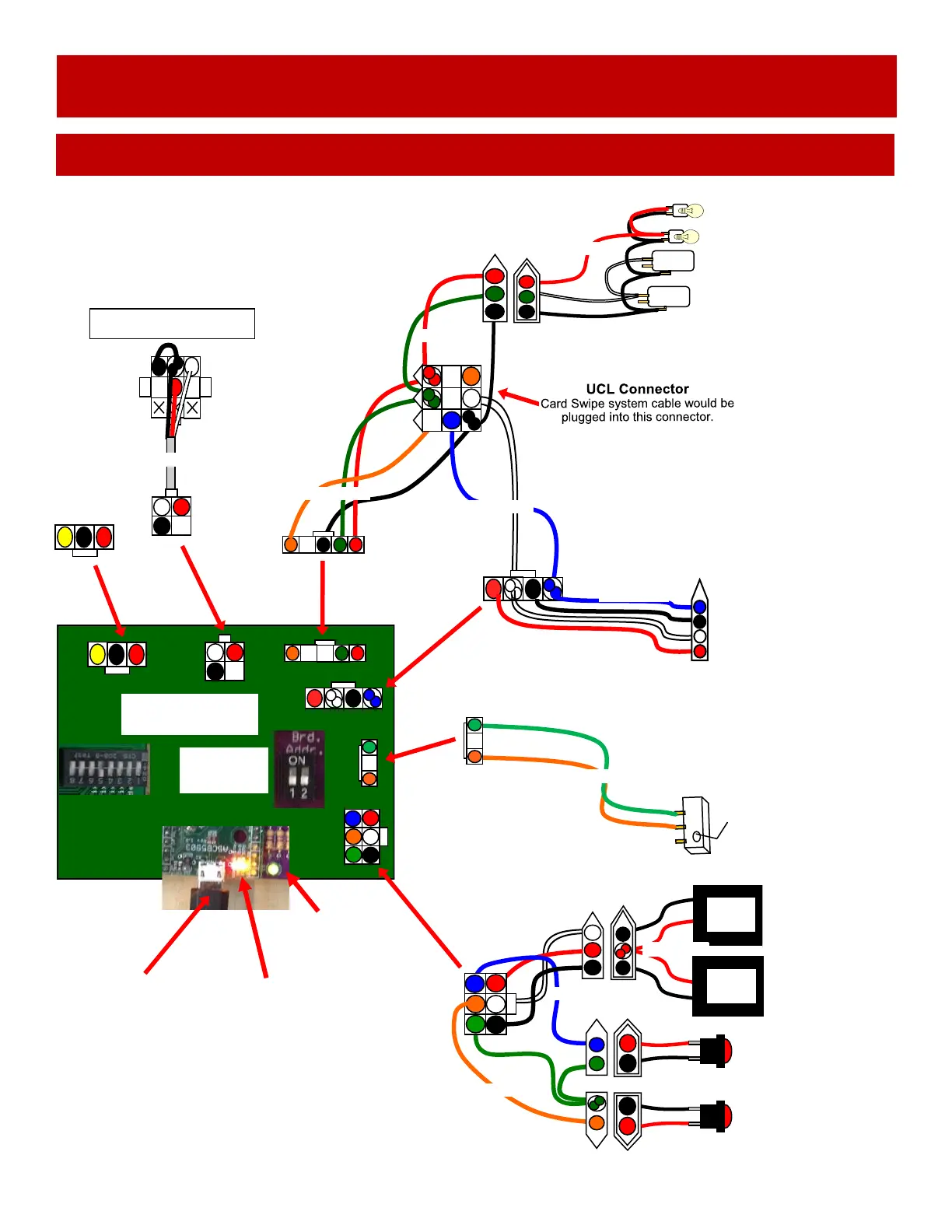

WIRING DIAGRAM

Low Ticket Switch

Wired Normally Open

AASW200

1/4” Spacer A5SENY020

AACE29022

AACE29014

AACE29033

Power in from

Power Dist Bd

Ticket

Counter

AACO1000

Select

AAPB2700

Button

AAPB2700

AACE29021

Game

Counter

Coin Switches

and Lights

AACBL4A-DOORA

AACE29022

4-5 VDC normally

on switches.

Goes to 0 when

activated.

Blue & Black Wires: 5 VDC when notch opto

is blacked. 0 VDC when sees a notch.

White & Black Wires: 5 VDC when enabled

and tickets are trying to dispense.

AACE29022

To Ticket

Dispenser

Part # A5TD1

Notch Signal

Com Ground

Enable Signal

12 Volt Power

AACE29022

AACE29021

LEFT SIDE

AACO1000

Clicks as tickets are

being dispensed.

Clicks as you choose

your game mode.

To 12 Volt DC Bill Acceptor

A5AC9101 or A5AC9094

Questions and Answers:

D
Dominique ColeAug 16, 2025
How to troubleshoot no power on Bay-Tek AXE MASTER?
- R
  Rebecca WarrenAug 16, 2025
  If your Bay-Tek Arcade Game Machine has no power and no lights, check the following: * Ensure the game is plugged into a working wall outlet. * Reset the power strip breaker switch or building circuit breaker. * Replace the Line Filter (Part # A5FI9010). * Change the plug position or replace the power strip if a section does not work (Part # A5OU5000). Check the rocker switch on the power strip. * Refer to the wiring diagram and check connections, reseating cables from the line filter to the outlet strip (Cables # CE29003, CE29002, and CE29000). If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
R
Rebecca CaseAug 21, 2025
What to do if the dollar bill acceptor is not working on Bay-Tek AXE MASTER?
- E
  Elijah RiosAug 22, 2025
  If the dollar bill acceptor on your Bay-Tek Arcade Game Machines is not functioning, consider the following: * Ensure the Bill Acceptor is set to “Always Enable”. * Important: Only a 12 Volt DC DBA should be installed (Model # AE 2454 U5E Part # A5AC9101). To troubleshoot: * The acceptor should cycle the stacker at game power up. If not, check cable connections. * Refer to “How to Clean Bill Acceptor” or clean with a bill reader cleaning card (A5CC9000). * Check the wiring from the bill acceptor to the I/O Aux Board (AACE29014). Repair or replace the wiring harness, ensuring wires are secure in connectors. * Refer to the troubleshooting section of the dollar bill acceptor manual included with the game or the diagnostics label on the back of the unit.
