46

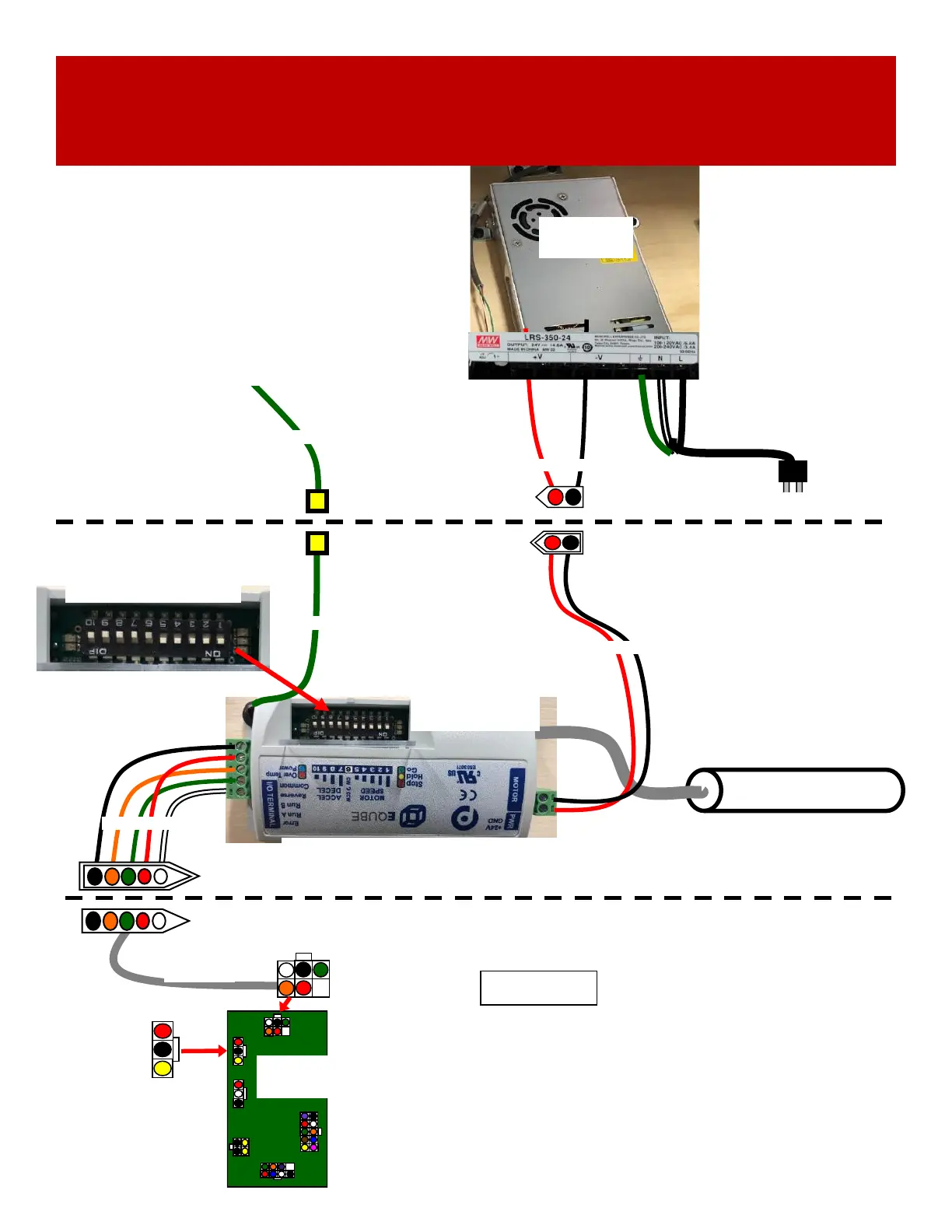

CONVEYOR MOTOR WIRING DIAGRAM
For games manufactured before July 2022
Middle Section
Front Section
AACB29000
Control Board
AACE29010
Power In
from Power
Dist Board
AACE29024
A5MO29001
Conveyor Motor
AACE29001
To AC Splitter
A5PS29000
24 VDC Power
Supply
AACE29028
Rear Section
Middle Section
Conveyor Motor
Control Board
AACE29025
AACE29029
AACE29018
AACE29053
To Ground Stud in
the Back Cabinet
Important!
Dipswitches must be set this way
Blue LED should normally be ON
Green LED is flashing when conveyor is running
A5CT29001
Conveyor Control
Board
