45
Important!
Dipswitches must be set this way
AAAC29002
Ejector Stepper
Motor Actuator
Actuator Limit LED’s:
LED’s are ON if not blocked by peg.
LED’s are OFF when peg is blocking.
AACE29030
AACE29030
AACE29068
A5PS29000
24 VDC Power
Supply
AACE29001
To AC Splitter
AACE29027
A5CT29000
Controller for Motor
AACB29002
Filter for Stepper
Middle Section
Front Section
Rear Section
Middle Section
AACE29031
AACB29000
Control Board
AACE29010
Power In
from Power
Dist Board
AACE29035

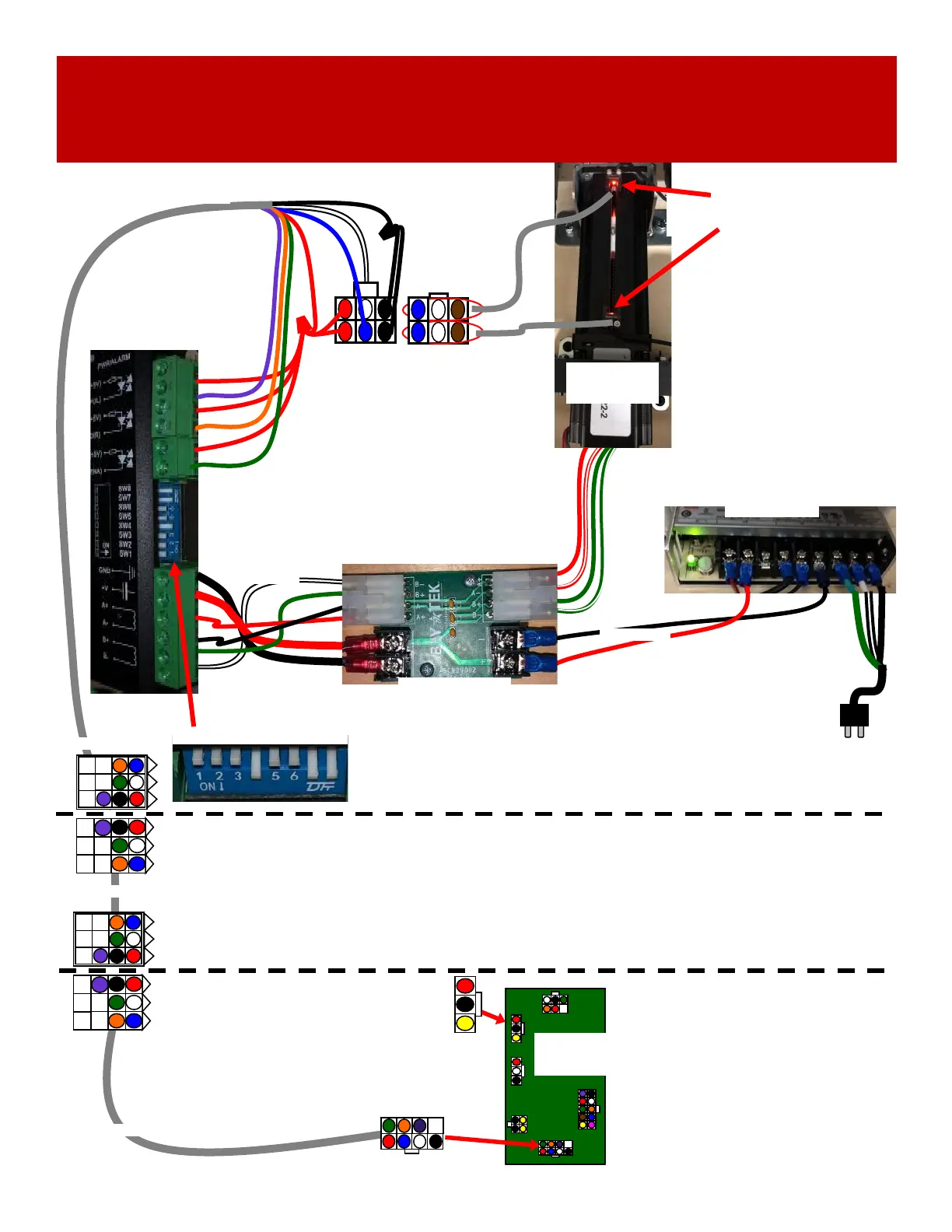

AXE EJECTOR MOTOR WIRING DIAGRAM
For games manufactured after July 2022
