44

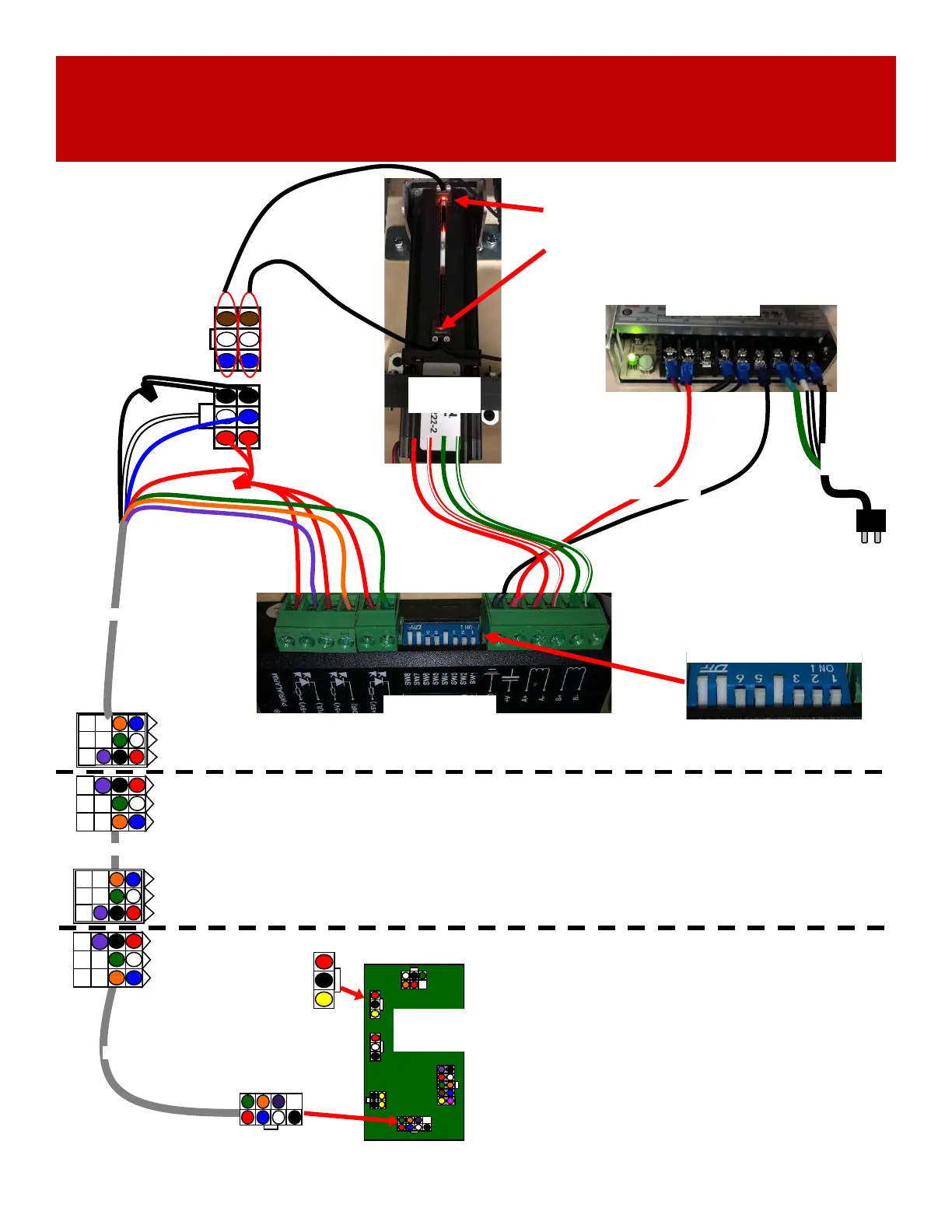

AXE EJECTOR MOTOR WIRING DIAGRAM
For games manufactured before July 2022
Middle Section
Front Section
Rear Section
Middle Section
AACB29000
Control Board
AACE29010
Power In
from Power
Dist Board
AACE29031
AACE29035
A5PS29000
24 VDC Power
Supply
AACE29001
To AC Splitter
AACE29027
AACE29030
AAAC29002
Ejector Motor
Actuator
Important!
Dipswitches must be set this way
Actuator Limit LED’s:
LED’s are ON if not blocked by peg.
LED’s are OFF when peg is blocking.
A5CT29000
Controller for Motor
