Page #48 background imageLoading...
Page #48 background image
48

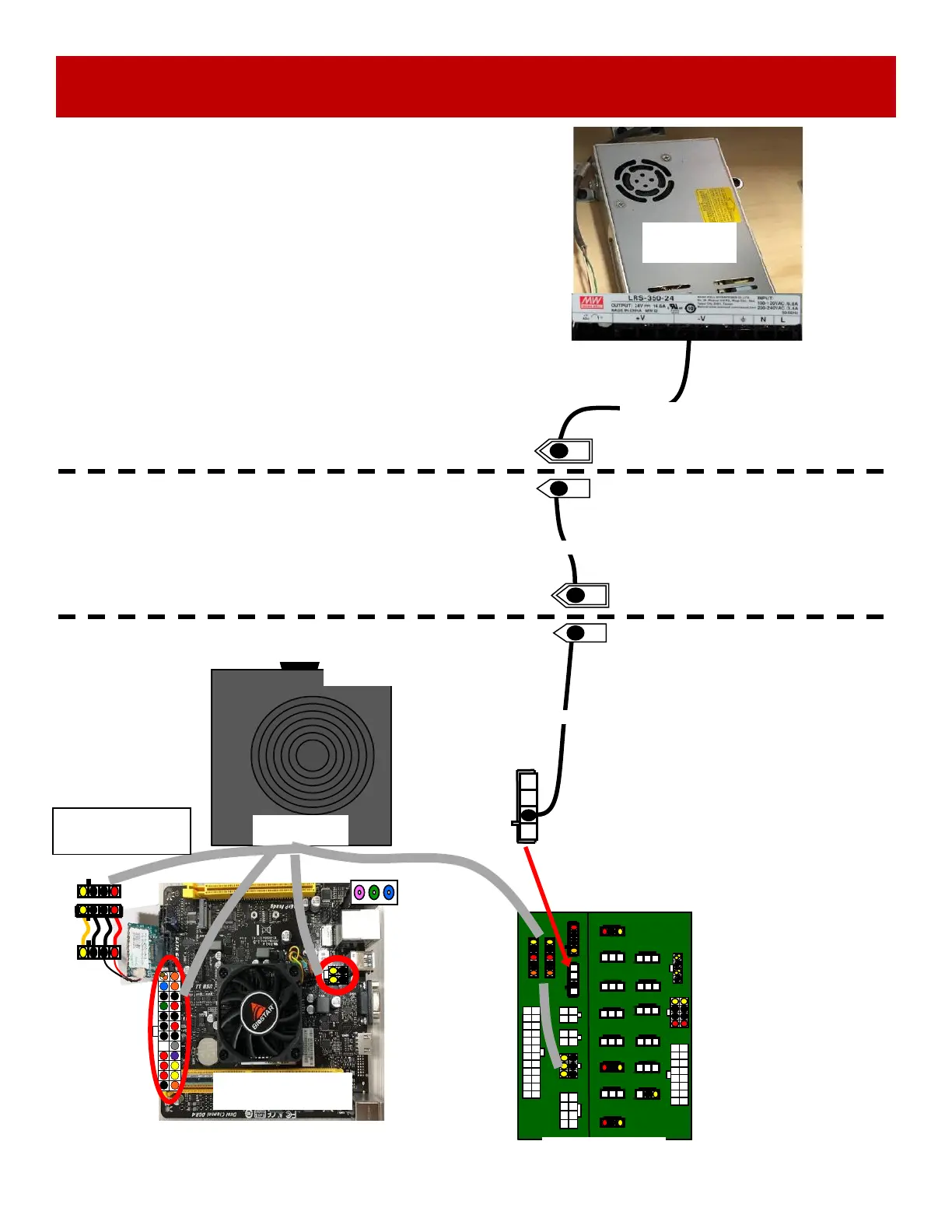

POWER DIST BOARD WIRING DIAGRAM
Middle Section
Front Console
AACE29056
AACE29057
AAHD1900-HH
SATA Hard
Drive
On/Off Rocker
Switch on
Power Supply
A5PS1021
Power Supply
AAMB12-HD/AXM
Motherboard
AACB5156
Power Dist. Board
AACE29055
A5PS29000
24 VDC Power
Supply
Back Section
Middle Section
Note: Newer games
have a hard drive
instead of a SATA drive
Note: If your motherboard looks different,
it is a MB13 Motherboard. Refer to MB13
Motherboard Section for more detail.
