49

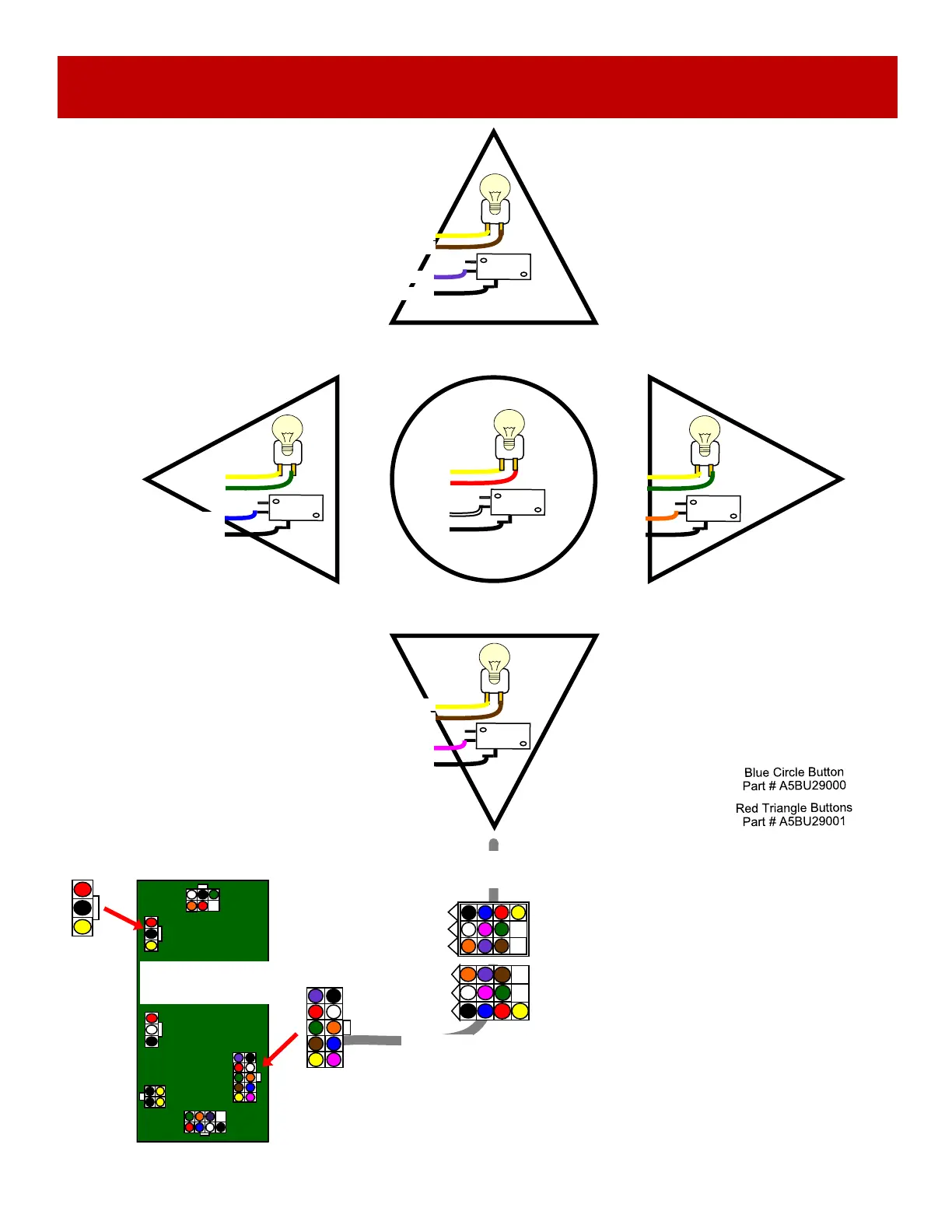

BUTTON WIRING DIAGRAM
AACB29000
Control Board
AACE29026
Important:
Do not short Light Wires to anything.
Switches wired Normally Open
AACE29042
Cable to Switches
Yellow
Green
Orange
Black
Yellow
Red
White
Black
Yellow
Brown
Pink
Black
Yellow
Brown
Purple
Black
Yellow
Green
Blue
Black
AACE29010
Power In
from Power
Dist Board
