Bay-Tek AXE MASTER User Manual

50

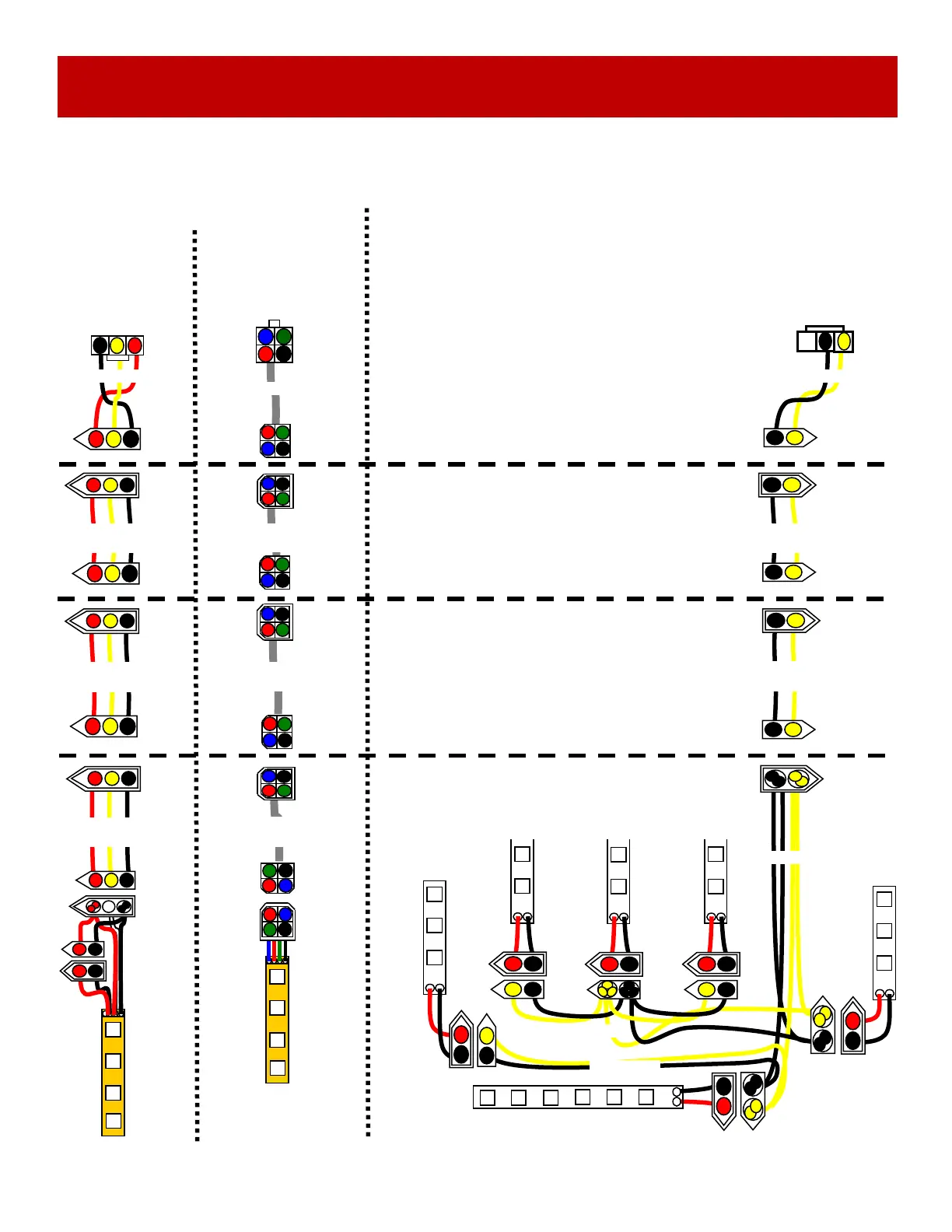

PROTECTION WALL WIRING DIAGRAM
AACE29043
Lights inside Safety Wall
AACE29066
Inside Marquee
AACE29015
Inside Left Pipe
AACE29058
Inside Left Upright
From CB8001
Light Board
AACE29016
AACE29047
Axe Light
+ -
Back Safety Wall
AACE29054
Marquee Light
+ -
Pipe Supports
Inside Uprights
Pipe Supports
AACE29063
Inside Right Pipe
Inside Uprights
Lower Front Section
AACE29065
AACE29062
Inside Right Upright
AACE29061
From Power
Dist Board
+ -
+ -
AACE29064
Marquee
Light
+ -
AACE29047
Axe Light
+ -
AACE29064
Marquee
Light
AACE29064
Marquee
Light
AACE29065
AACE29065
Note: Back Wall LED lights
have changed in July, 2022
Follow diagram to order the
correct parts for your game.
For games
built before
July, 2022
For games
built after
July, 2022
From CB8001
Light Board
AACE29072
Inside Marquee
AACE29071
Inside Left Pipe
AACE29070
Inside Left Upright
AACE29069
AACE29076
Lights inside Safety Wall
