Bay-Tek AXE MASTER User Manual

54

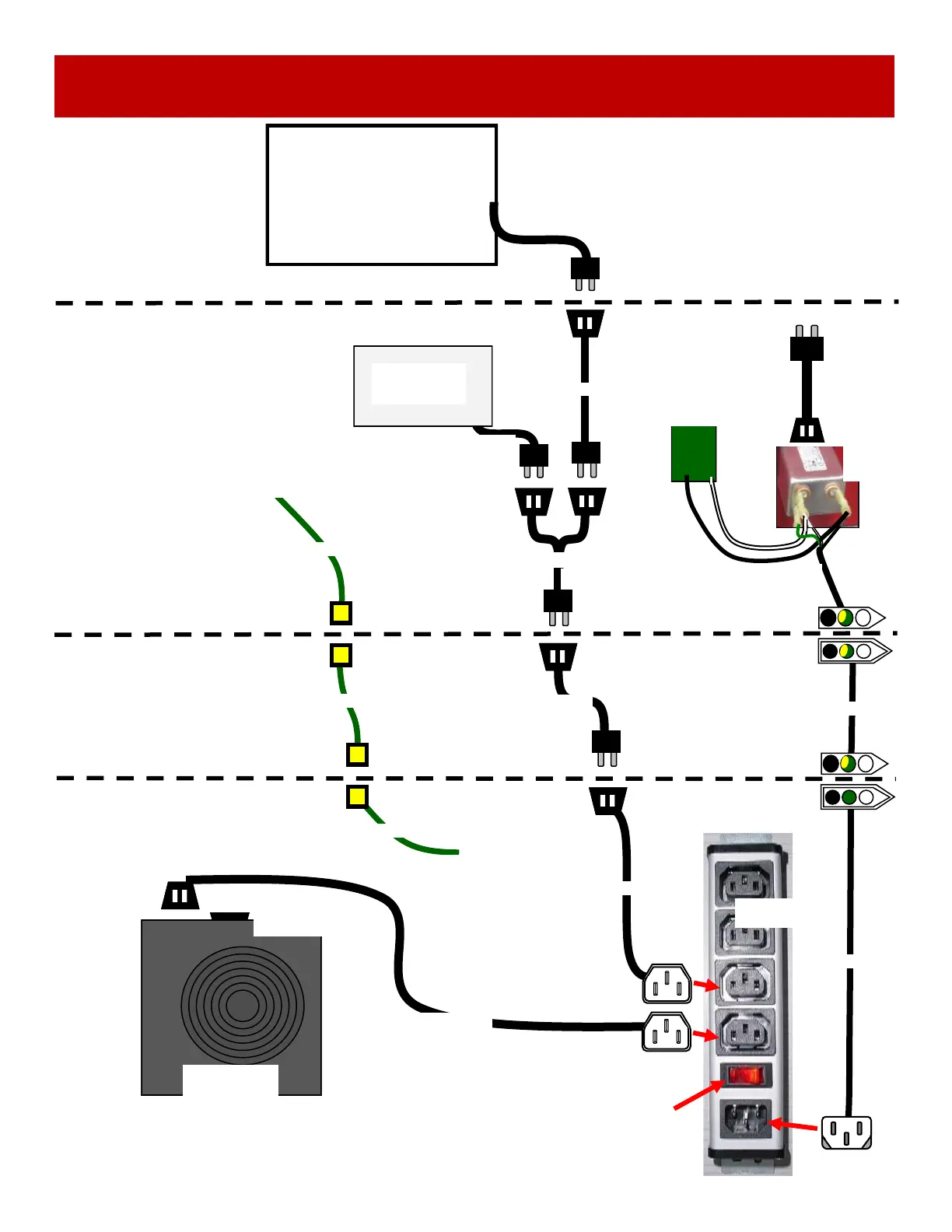

AC POWER IN WIRING DIAGRAM
Front Console
Middle Section
A5CORD5003
Outlet Strip
A5OU5000
On/Off
Rocker
Switch
Rear Section
Middle Section
Monitor
A5MO0032B
Power Cord is
attached to
monitor
Line Filter
A5FI9010
Power In Cord
From Wall
A5CORD5
AACE29003
AC Power In Cable
AC Bleeder
Board
AACB15001
AACE29002
AC Power to
Power Supply
A5CORD5001
On/Off Rocker
Switch on
Power Supply
A5PS1021
Power Supply
AACE29000
A5CORD1
AACE29001 Power
to 24 VDC Power
Supply
A5PS29000
24 VDC Power
Supply
A5SP4100
Monitor Housing
Rear Section
A5CORD1
To Ground Stud
on the back of the
Front Console
AACE29006
AACE29005
AACE29004
To Ground Stud in
the Back Cabinet
If the supply cord is
damaged, it must be
replaced by a special
cord or assembly
available from the
manufacturer or its
service agent
