53
AAMB12-HD/AXM
Motherboard

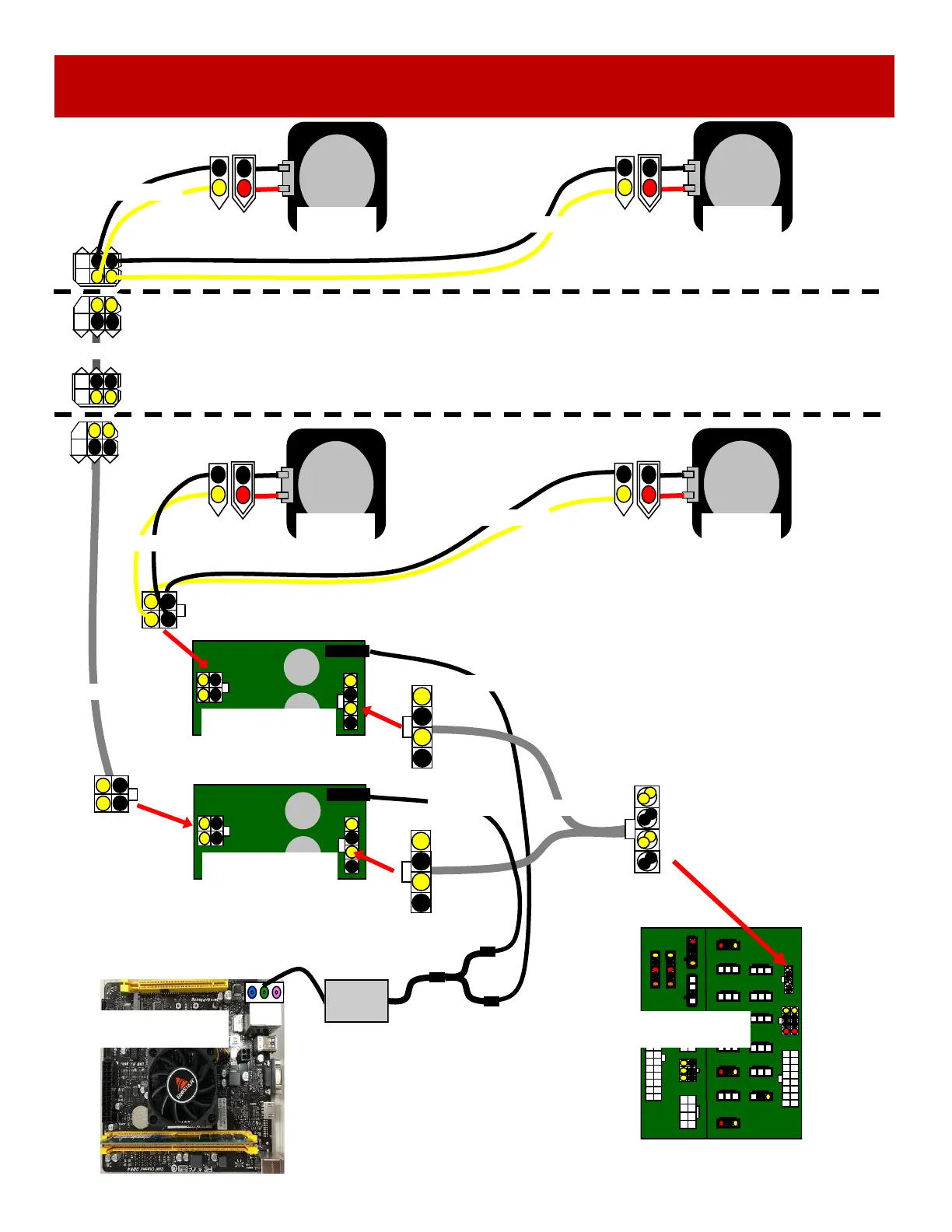

SOUND WIRING DIAGRAM
AACB5156
Power Dist. Board
Front Console
Middle Section
Middle Section
A5CE2300
Audio Filter
A5CE2300
from Green
Socket on
Motherboard to
Audio Splitter
cable
AACB9600A
Audio Amplifier
AACE29039
AACE29038
AACB9600A
Audio Amplifier
AACE29037
+
Speaker
AACE8811
3.3 Ohms
+
Speaker
AACE8811
3.3 Ohms
AACE29037
AACE29012
AACE29040
Rear Section
+
Speaker
AACE8811
3.3 Ohms
+
Speaker
AACE8811
3.3 Ohms
AACE29040
A5SP10001
Audio Splitter
A5CEAU010
A5CEAU010
Note: If your motherboard looks different,
it is a MB13 Motherboard. Refer to MB13
Motherboard Section for more detail.
