Bay-Tek PRIZE HUB Modular User Manual

50

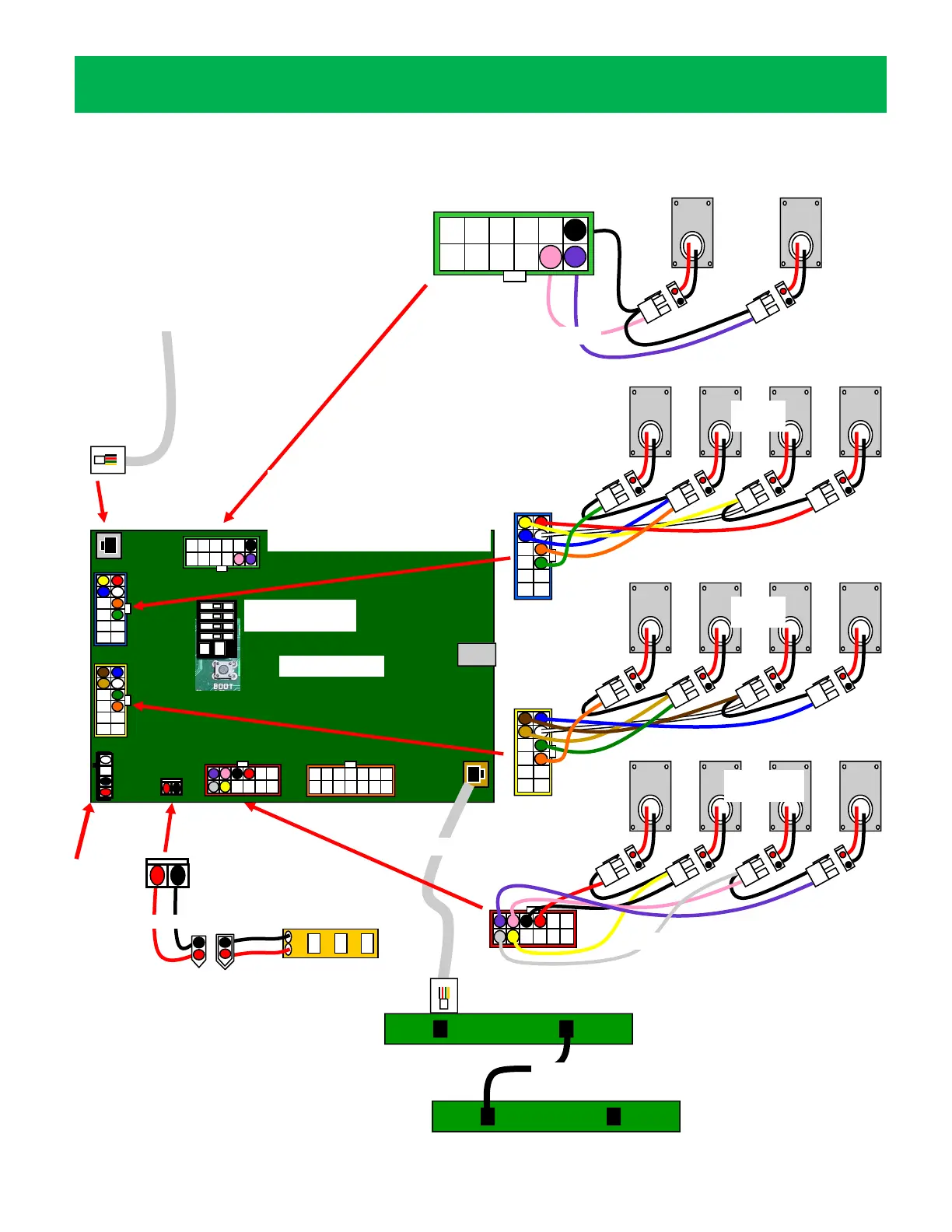

SPINDLE HUB WIRING DIAGRAM
To Power In
on Controller
Board
AACE1820
Row 3
Spindles
B8 B7 B6 B5
B14 B13
Top Row 1
Spindles
Row 2
Spindles
B12 B11 B10 B9
AACE1815
LED lights
on front door
+
-
Bottom Row 4
Spindles
B4 B3 B2 B1
AACE1818
Prize Chute Sensor
Boards AACB4402
AACB1803
AACE1822
AACE1822
AACE1821
AACE1821
AACE1823
AACE1819
Note: All Spindles are
Part # AADSPZ010
1
2 3 4
OFF
ON
All Dips Off
LED Blinks 1 Time
AACE1811
Communication to Blue Socket
on AACB1800 Board
Yellow light is communication,
red is prize chute sensor
blocked, or door locker open,
or other error.
