51

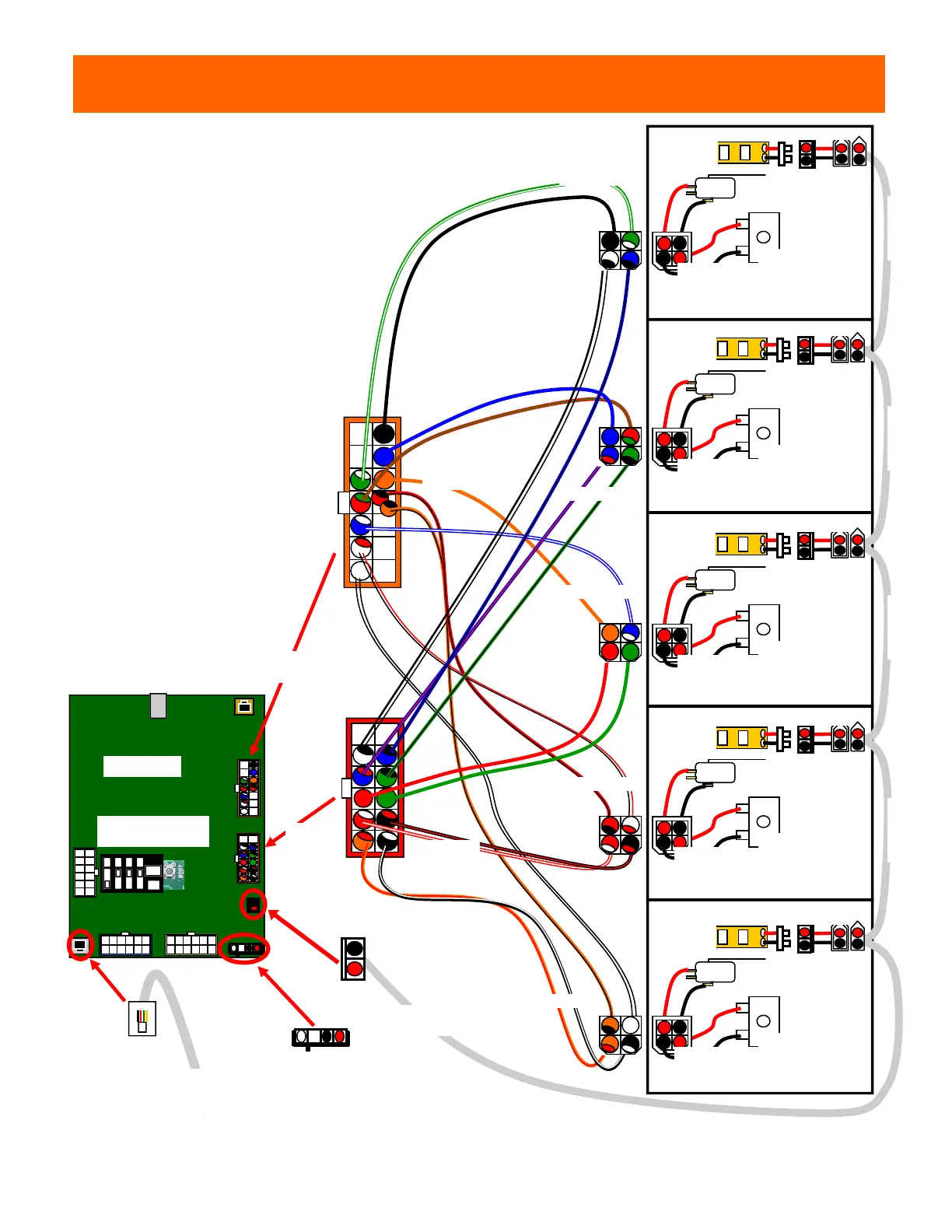

LOCKER HUB WIRING DIAGRAM
Locker Door # 5
A5SW200
Locker Door Switch
A5SO5052
Locker Solenoid
Locker Door # 4
A5SW200
Locker Door Switch
A5SO5052
Locker Solenoid
Locker Door # 3
A5SW200
Locker Door Switch
A5SO5052
Locker Solenoid
Locker Door # 2
A5SW200
Locker Door Switch
A5SO5052
Locker Solenoid
Locker Door # 1
A5SW200
Locker Door Switch
A5SO5052
Locker Solenoid
AACE1807
AACE1807
AACE1807
AACE1807
AACE1807
AACB1803
AACE1810
Power in Jumper
LED Light Cable
AACE1808
AACE1808 AACE1808 AACE1808 AACE1808
1 2 3
4
OFF
ON
4
# 4 Dip On
LED Blinks 3 Times
AACE1809
AACE1809
AACE1809
AACE1809
AACE1809
AACE1809
AACE1809
To J9 on
Main Board
To J5
on Main
Board
AACE1816
Communication to Red Socket
on AACB1800 Board
+
-
AALI1800-1
LED Lights
AACE1781
+
-
AALI1800-1
LED Lights
AACE1781
+
-
AALI1800-1
LED Lights
AACE1781
+
-
AALI1800-1
LED Lights
AACE1781
+
-
AALI1800-1
LED Lights
AACE1781
Yellow light is communi-
cation, red is prize chute
sensor blocked, or door
locker open, or other
error.
