Bay-Tek quik drop User Manual


A5MO3200
Monitor
To J18
Connector
AANEWGEN1-PJ/RBN

 


 

AACE5810
Power Cable
To Newgen
Power Cable to
SATA Hard
Power Supply
AAPS1011-QD
AACE5802
AC power cable
A5CORD5
Power In Cord
from wall
Outlet Strip
AACE5811
Line Filter
A5FI9010
AABL3201-QD
Blower Motor
14.5 Ohms
AACE5803
AC in from
power strip
+ -
Left Instruction
LED lighting
AACE5852
+ -
Right Instruction
LED lighting
AACE5840
AACE5840

 

+ -
Playfield
Illumination
AACE5808

 

AACE5812
AAC5832
A5LI0003
AC LED light
5000K
AAC8868
A5CORD1
AC Power to
back of game
Outlet Strip
AACE5811
A5SP4100
AC Splitter
AABD5029-A
AC Driver
Board
AACE5809
Bill Acceptor
AC Power
A5CORD5
AC Power to
Monitor
A5CORD5
AC Power to
Power Supply
AACE5829

 

AACB3906
Motor Driver
Board

 

AACE5838
12 VDC To
Marquee
LED’s
AACE5842
5 V To Jackpot
Display

 


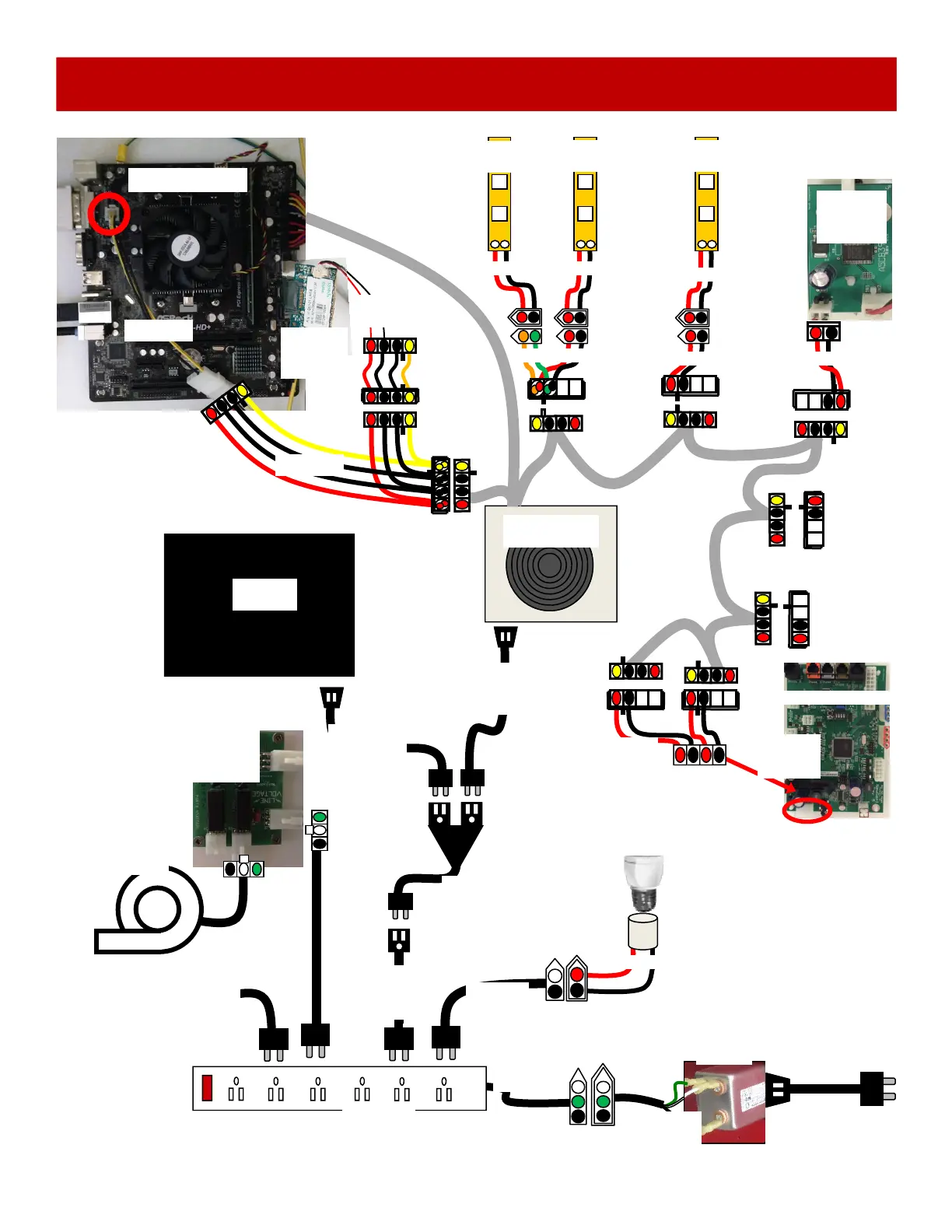

AC IN, POWER SUPPLY WIRING DIAGRAM
Note: 220 VAC
Blower Motor is
part #
AABL1180-QD
AAMB11-HD
A5HD1800
SATA Hard
Drive
!
!
