2.4.9.4 Serial Port 4 configuration
Set Parameters of Serial Port 4

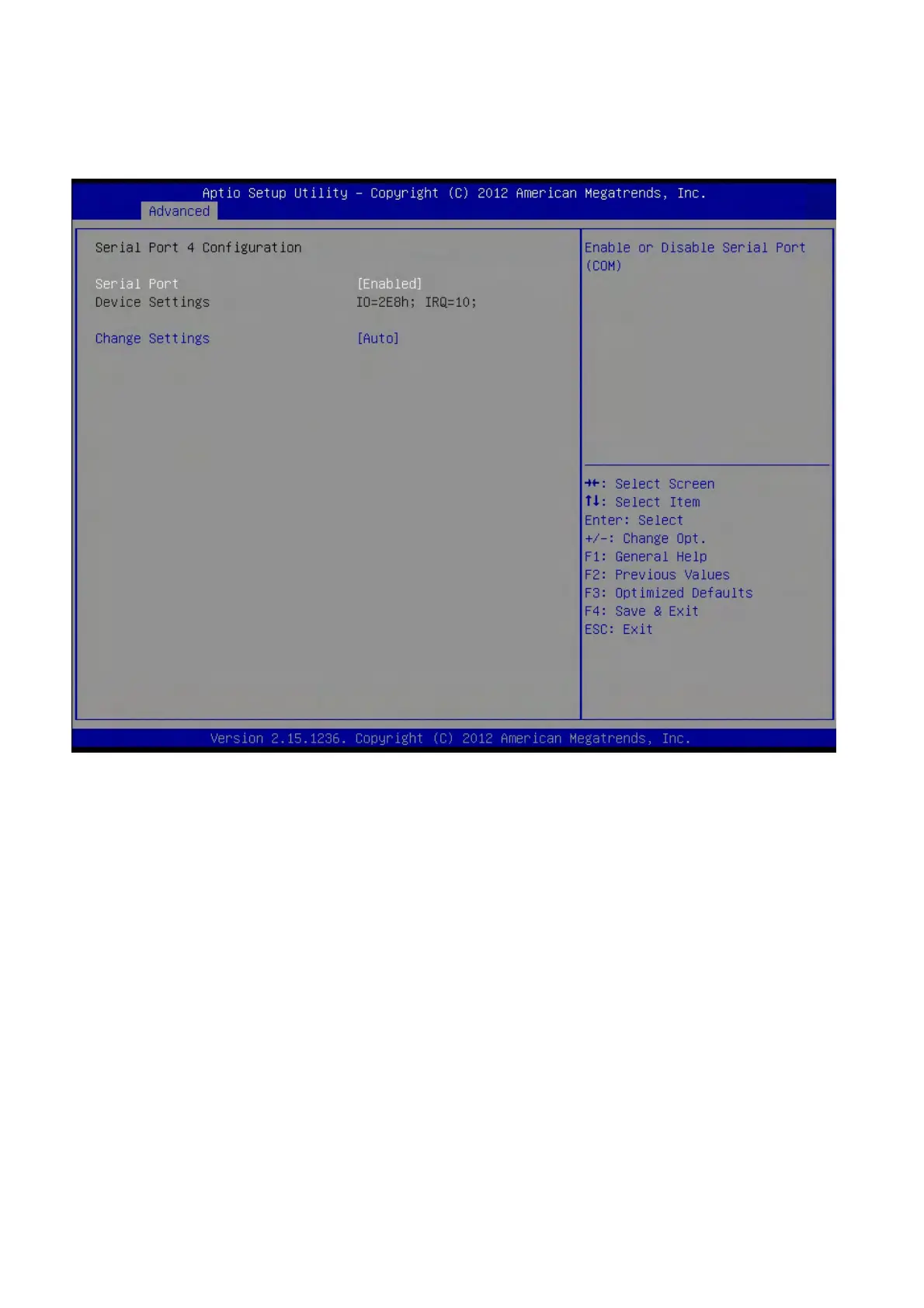

Serial Port 4 Configuration
 Serial Port [Enable]
Enable or Disable Serial Port.
Configuration options: [Disabled] [Enabled]
 Device Setting [IO=2E8h; IRQ=10]
 Change Setting[Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto] [IO=C88h; IRQ=5] [IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12]
[IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12] [IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12]
[IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12]
