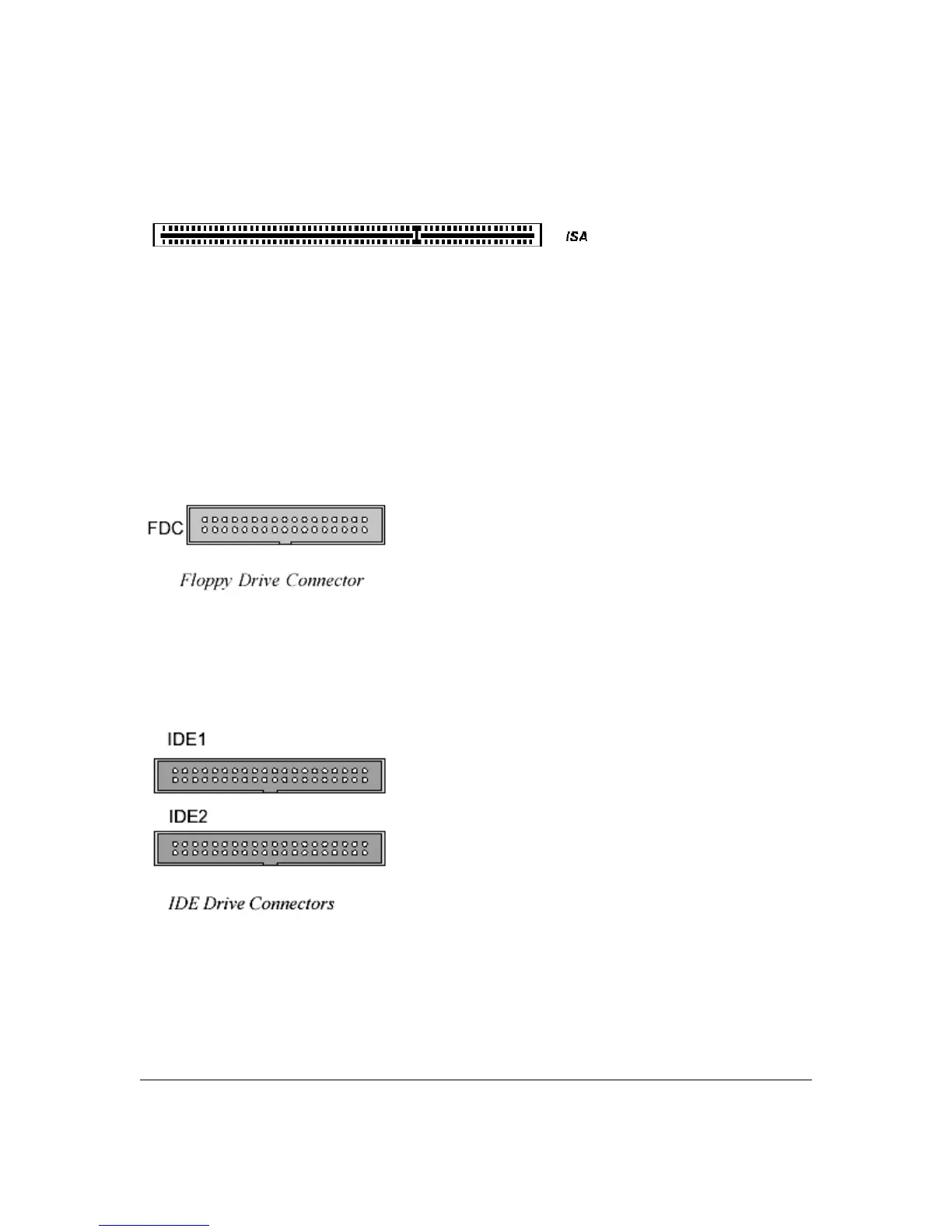

ISA Expansion Slot
There is one 16-bit, 10MHz ISA slot that lets you install additional system hardware via add-on
cards. See the section on installing internal peripherals in Chapter 3.
NOTE1: Due to space limitation in chassis, either PCI6 or ISA can be used.
Drive Connectors
There are drive connectors on the motherboard for connecting IDE and floppy disk drives.
J30: Floppy Disk Drive Connector
The connector J30 lets you attach one floppy disk drive to the motherboard using a standard FDD
ribbon cable.
J21, J22: IDE Drive Connectors
The two IDE drive connectors are marked IDE1, the primary channel, and IDE2, the secondary
channel. Each connector supports two drives, a Master and a Slave.
User’s Manual 2 - 8
