USB Ports
There are four high-speed USB 2.0 ports, USB 0 and USB 1, for connecting either USB 1.1 or 2.0
devices to the system. These ports are for “Type A” USB cable connectors. It does not matter if

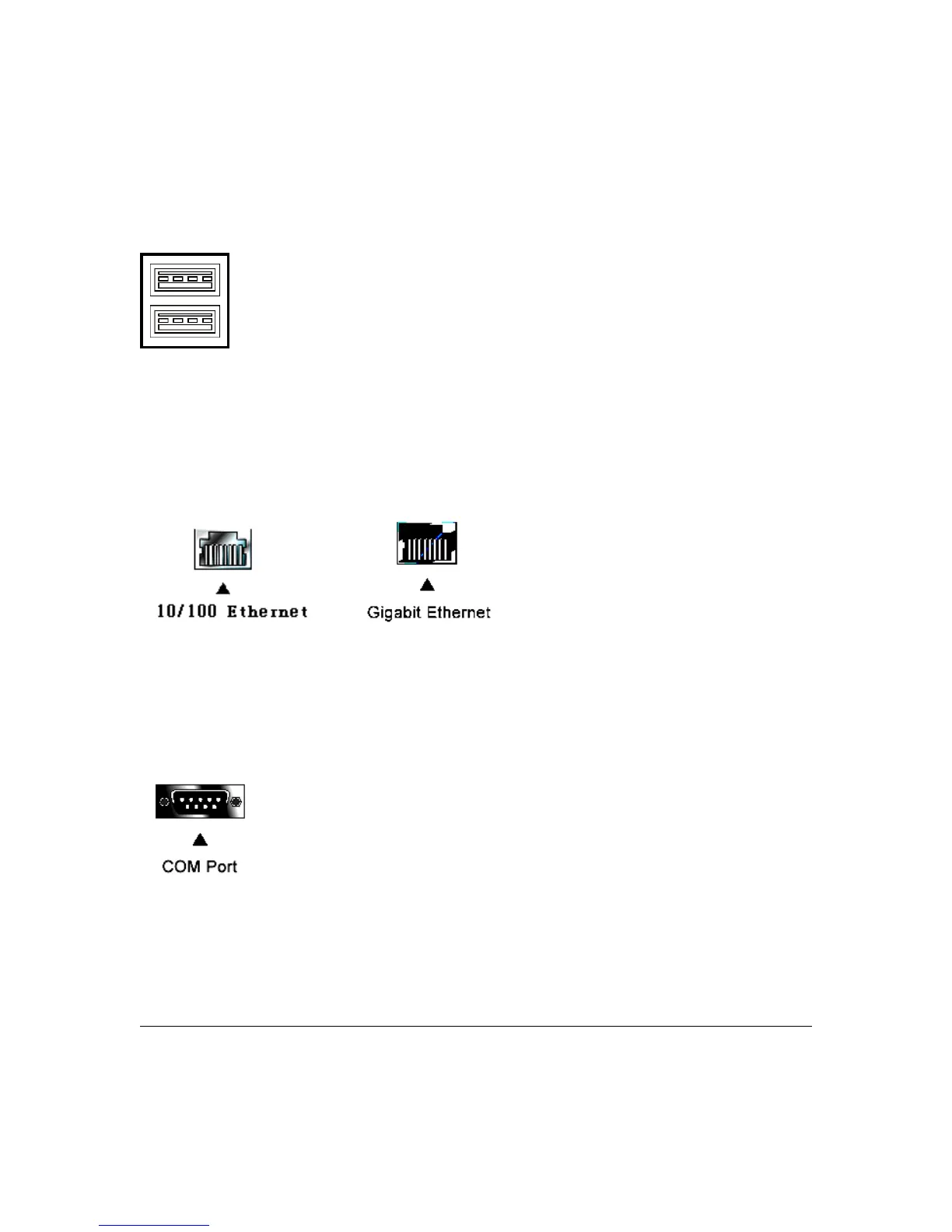

the system is on when you connect or disconnect USB devices. See the graphic below.
Gigabit Ethernet Port & 10/100Mbps Ethernet Port
Gigabit Ethernet Port and 10/100 Ethernet Port are RJ-45 connectors for standard Cat 5 LAN
cabling. The connector attaches to the onboard Intel Kenai-II CSA Gigabit Ethernet LAN
controller and Intel 82562ET 10/100 LAN controller respectively. It does not matter if the system
is on when connecting or disconnecting a LAN cable.
COM Serial Port
The COM Serial port has a 9-pin connector and can operate at speeds up to 115,200bps. Do not
connect or disconnect a serial port when the system is turned on.
