Motherboard Layout

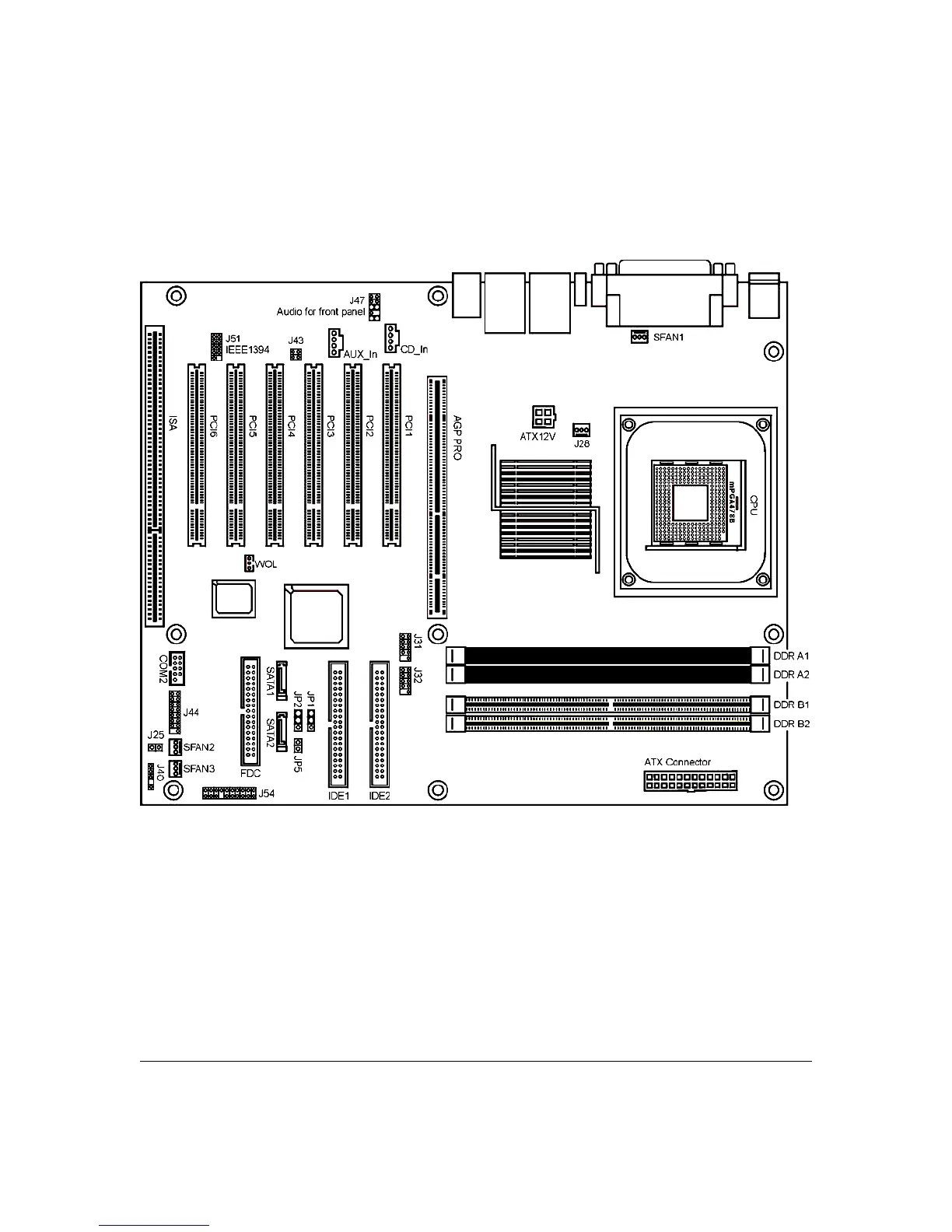

The location of motherboard components is shown below.
BC875PLG
User’s Manual 2 - 2
Motherboard Layout Key
This picture represents the latest board revision available at the time of publishing.
The board you receive may or may not look exactly like the above picture.
BCM reserves the right to make changes without notice to this product.
