Selecting a Processor
This motherboard supports all Intel Pentium 4 processors. The motherboard’s BIOS automatically
detect the required settings and configure the CMOS Setup Utility.
Installing the Processor
It is important to review all of the instructions before beginning the installation procedure.
Carefully handle the processor by its edges, and take all precautions against electrostatic
discharge. The boxed Intel Pentium 4 processor comes with a Heatsink and Thermal Interface
Material applicator. Non-boxed processors follow the same procedures, but the accessories may
have a different appearance.
The following illustrations are a generic representation and may not show the components’ exact
appearance.

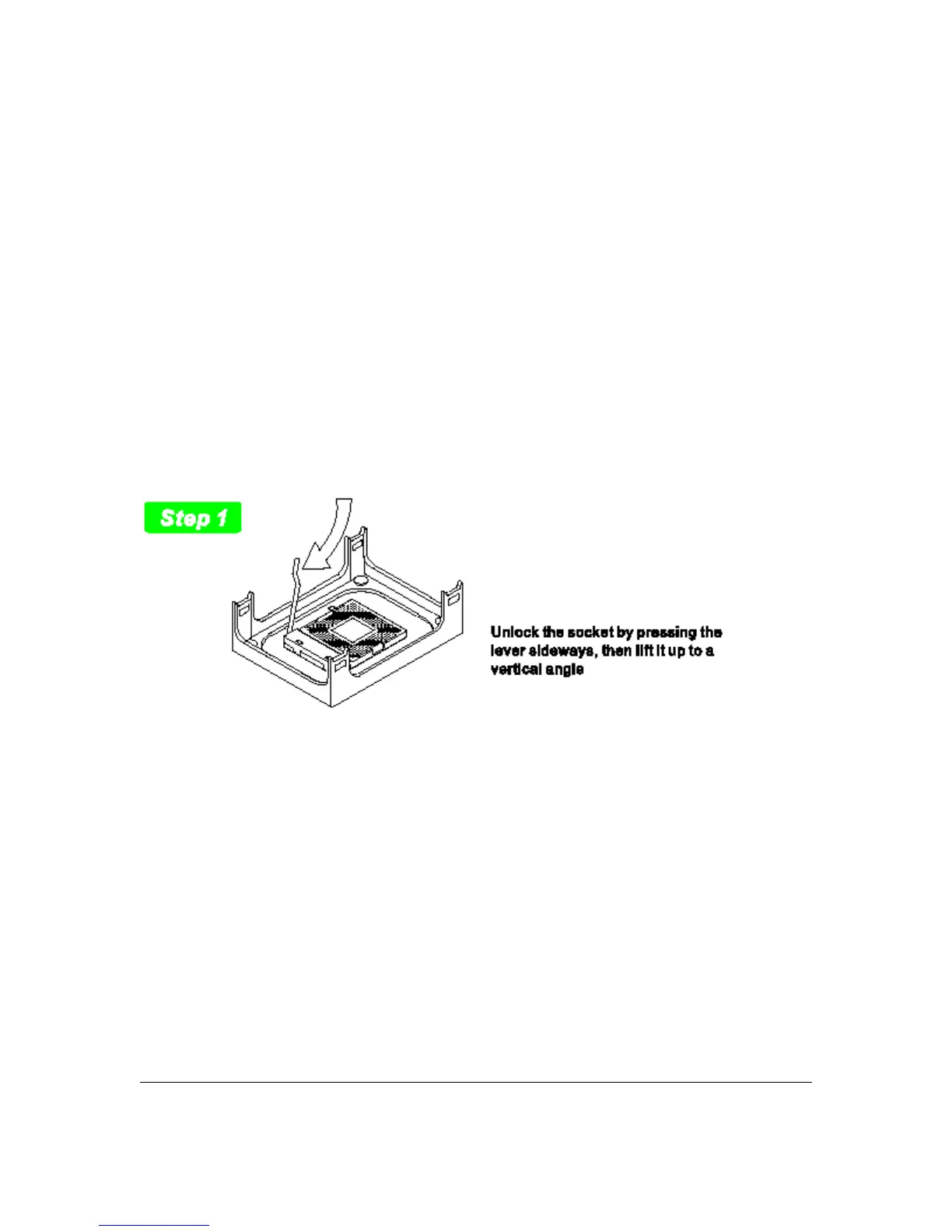

1. Unlock the socket by pressing the lever sideways, then lift it up to a vertical angle.
3 – 2 User’s Manual
