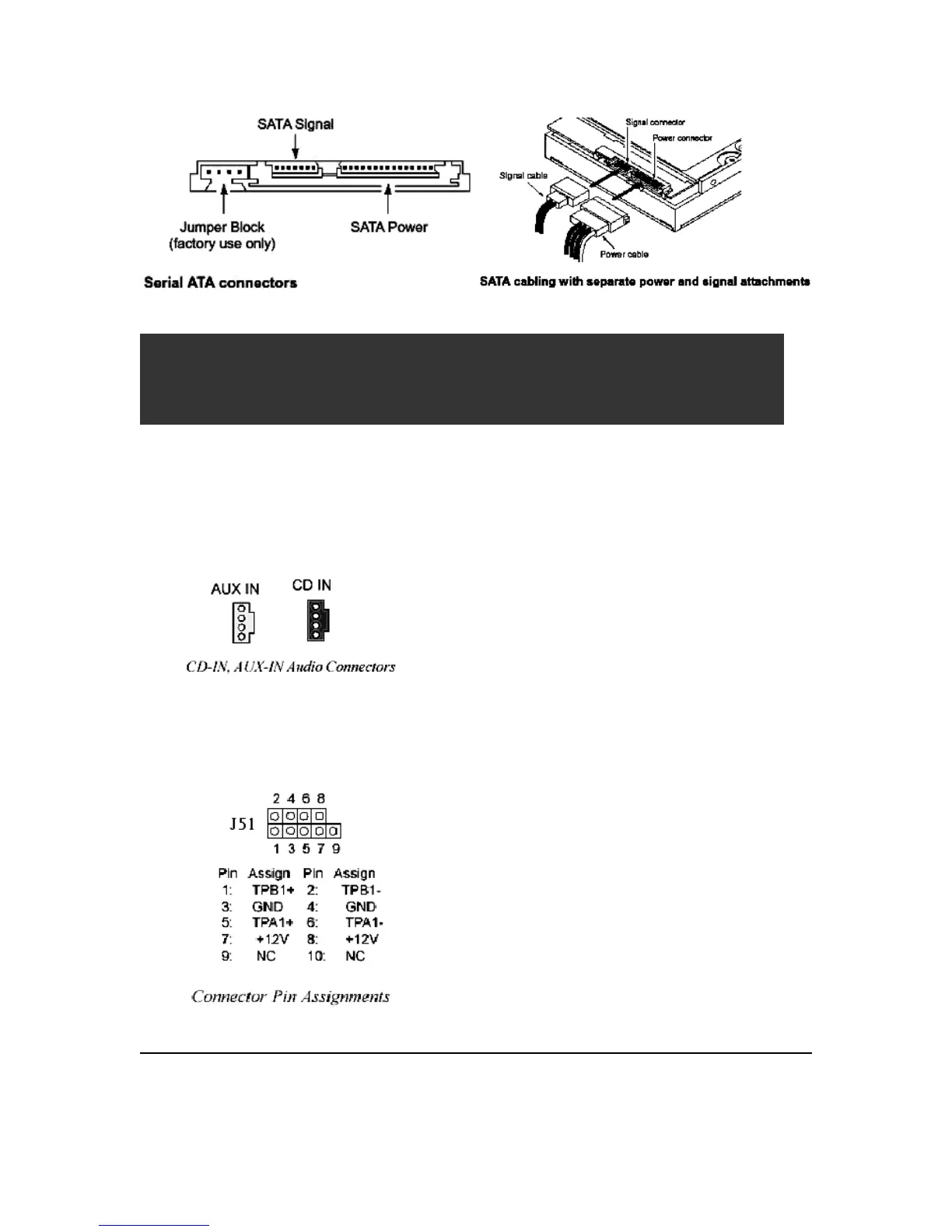

J45, J48: Audio Connectors
These two connectors, CD-IN and AUX-IN, let you attach audio-in cables from internal
peripherals, such as a CD-ROM or DVD-ROM drive. The connectors provide an audio input
connection between a device and the integrated audio subsystem.
J51: IEEE-1394 Connectors
The connector, J51, provide onboard support for devices using the IEEE-1394 standard. The
IEEE-1394 standard provides high speed digital interface for audio/video appliances such as
digital video camcorders, digital television, storage peripherals and other PC portable devices.
User’s Manual 2-10
More Information about S-ATA HDD:
Serial ATA drives are designed for easy installation with no jumpers, terminators, or other settings. It is not
necessary to set any jumpers on this drive for proper operation. The jumper block adjacent to the signal connector
is for factory use only.
