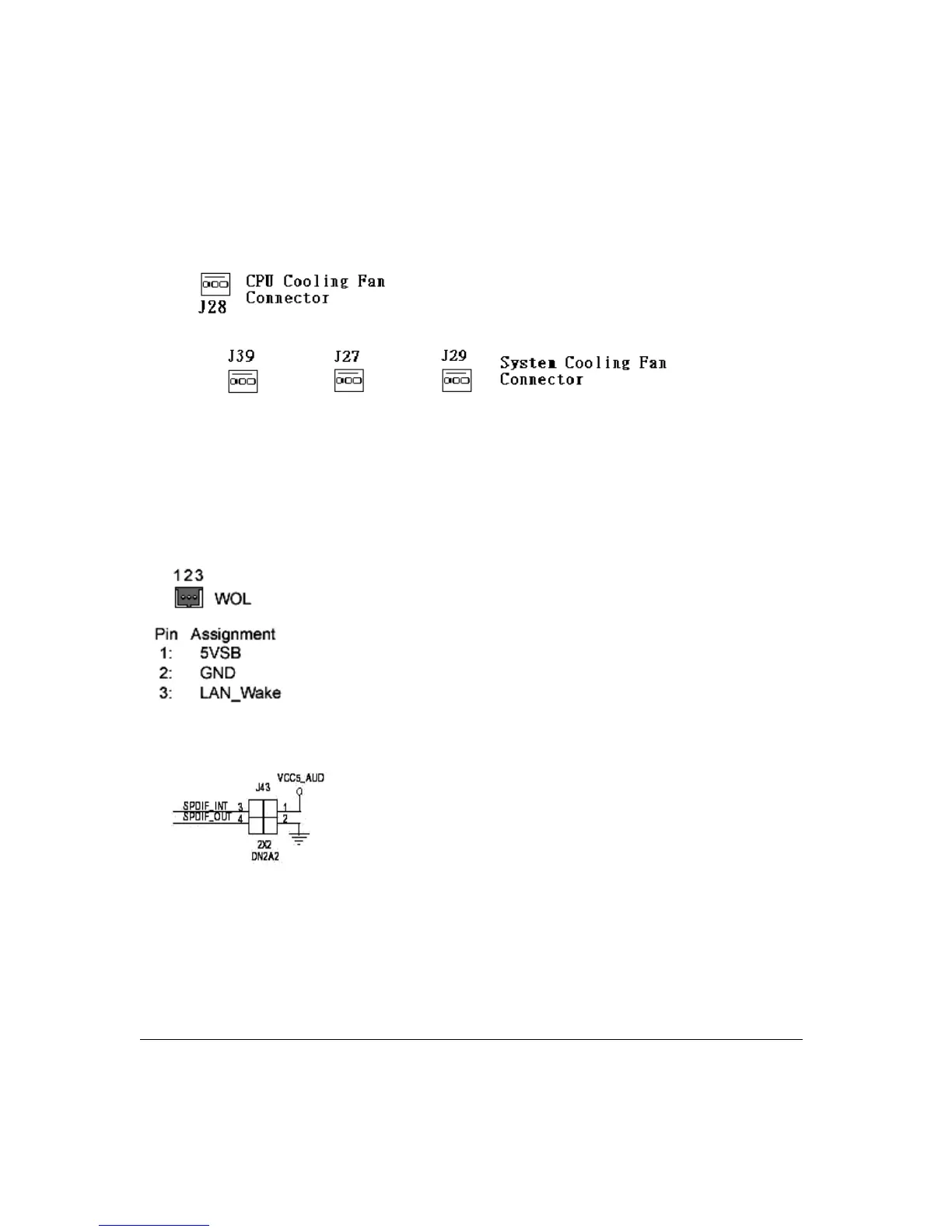

J28, J39, J27, J29: CPU & System Fan Connectors
These 3-pin connectors provide power to the CPU cooling fan (J7), to the System cooling fans
(J39, J27, J29). These connectors all support fan speed monitoring. A temperature monitor detects
the CPU and internal system temperatures. You can set a system shutdown temperature in the PC
Health section of the CMOS Setup Utility.
WOL: Wake On LAN
This connector, WOL, lets you attach a managed network adapter to the motherboard via a
Wake-on-LAN cable. When the system is off, the managed network adapter uses an alternate
power source to monitor the network. If it receives a wake-up packet from the server the system
is remotely and automatically powered up.
J43: S/PDIF
Pin Assignment
1 VCC
2 GND
3 SPDIF_IN
4 SPDIF_OUT
User’s Manual 2-12
