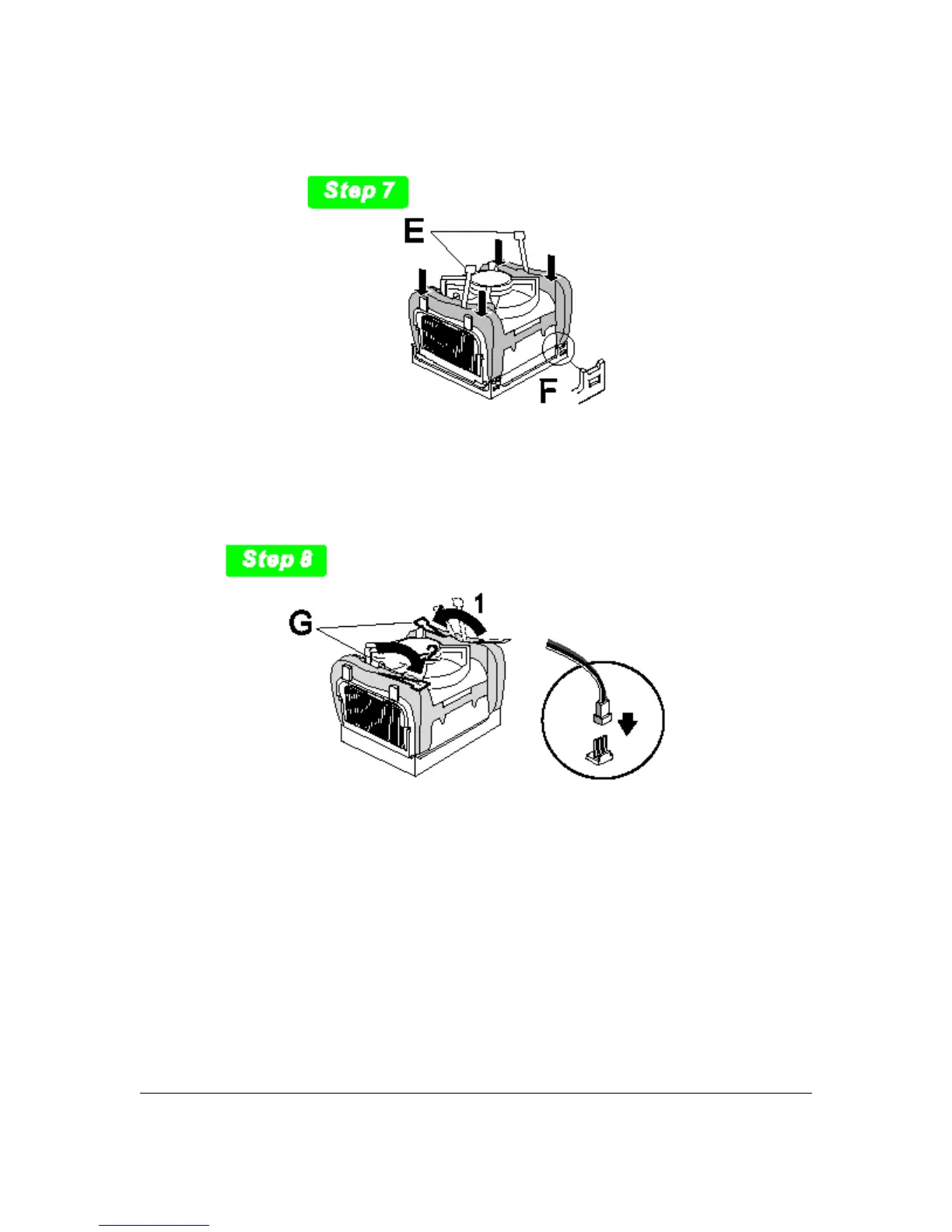

7. Align the Heatsink and clip assembly with the Retention Mechanism and place it on the
processor. The Heatsink is symmetrical.
8. With the clip levers in the up position (E), push down on all four clip frame corners to secure to
the Retention Mechanism hooks (F). Close the clip levers (G). The levers require force to be
completely closed. Connect the processor fan cable connector to the motherboard header.
