1.6.3 Onboard LEDs
The mainboard comes with a “Power On LED” (green) to indicate the system power status. When power
cable is connect to the power source. The “Power LED” lights will be on to indicate that the system has
standby power. This is a reminder that you should shut down the system and unplug the power cable

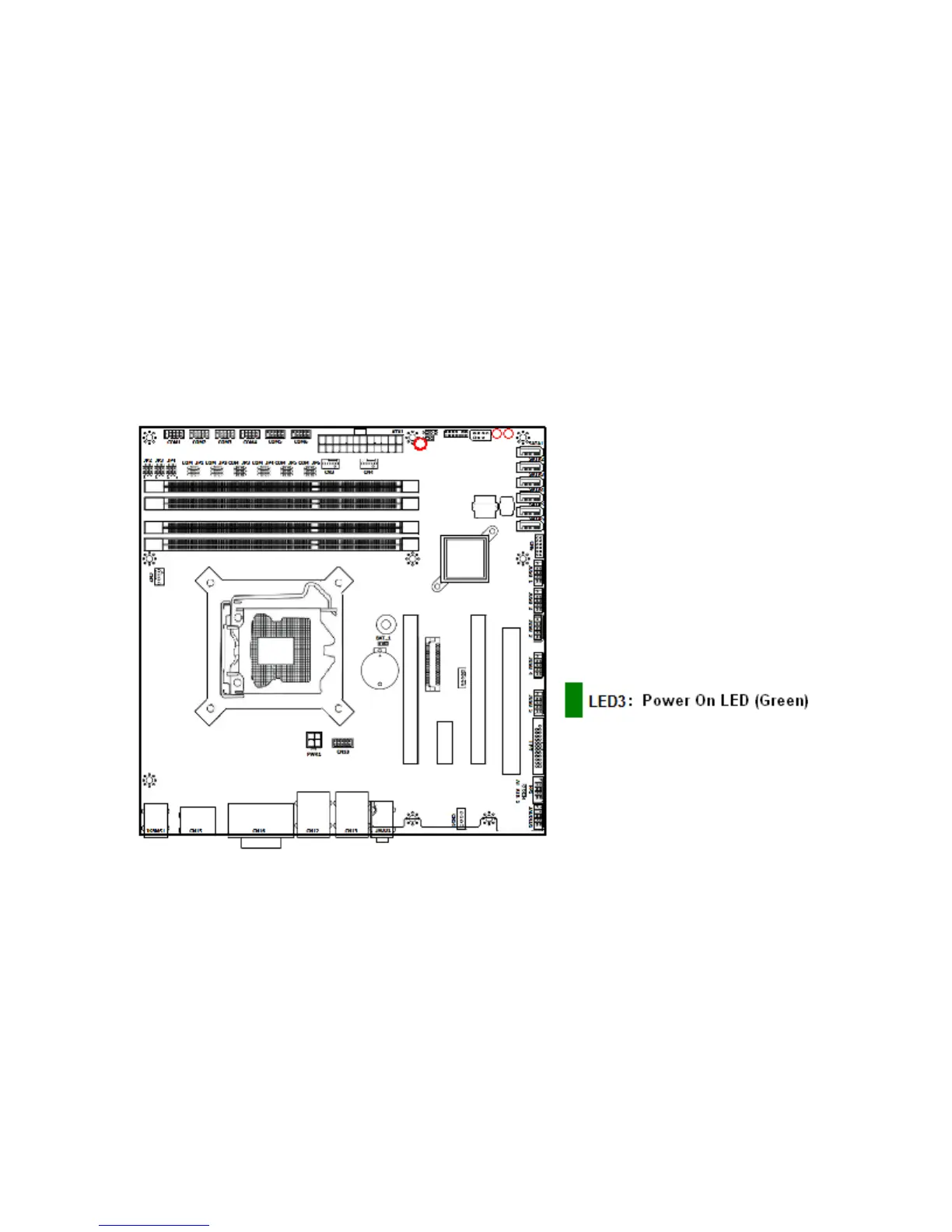

before adding/ removing or plugging in any mainboard component. The illustration below shows the
locations of onboard LEDs.
LED1 =VCC+5V (reserved)
LED2 =VSB+5V (reserved)
LED3 = +5V (Power)
