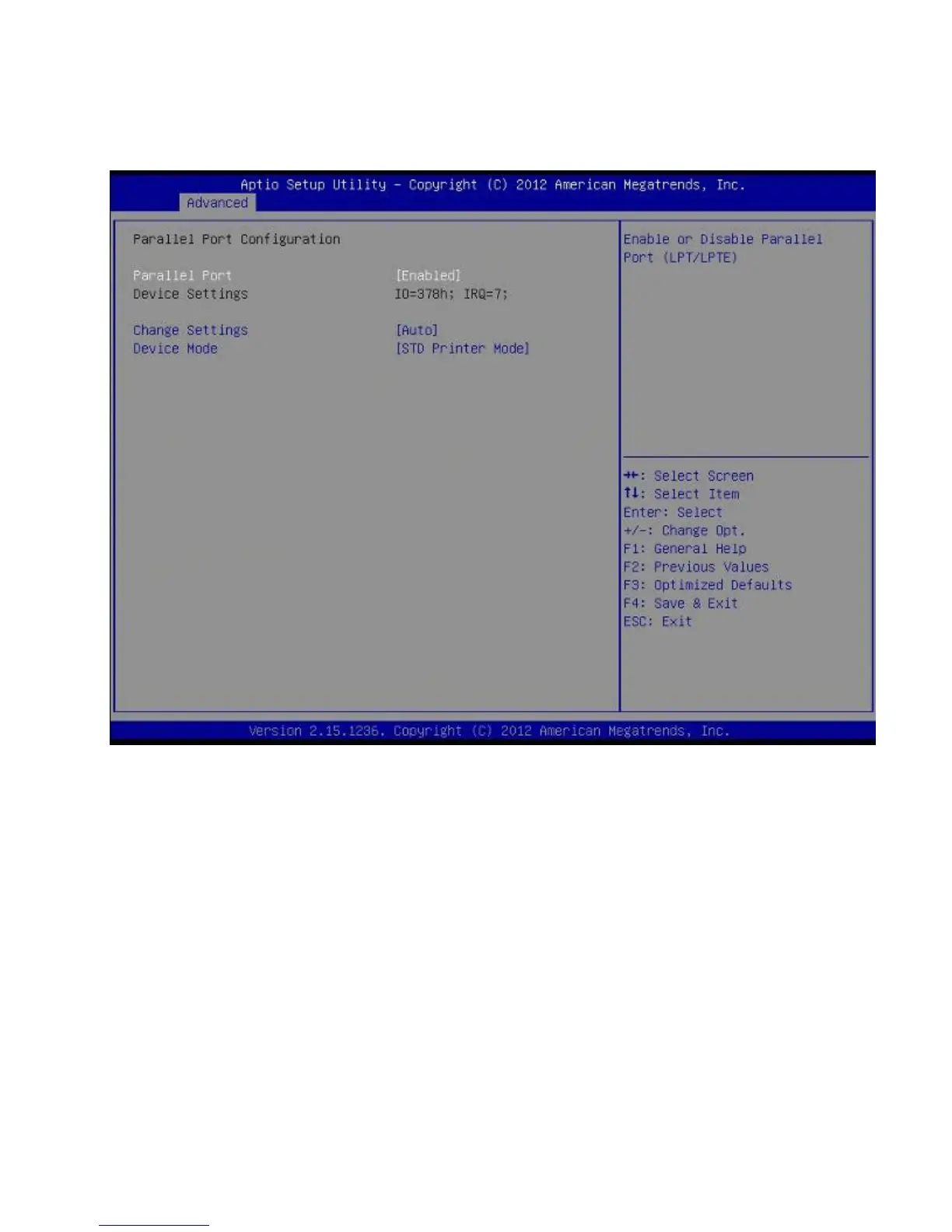

3.3.15 Parallel Port Configuration
 Parallel Port [Enable]
Use this item to enable or disable the onboard parallel port.
Configuration options: [Disabled] [Enabled]
 Change Settings [Auto]
Use this item to select an optional setting for Super IO device.
Configuration Options: [Auto] [IO=378h; IRQ=7] [IO=378h; IRQ=6,7,9,11,12] [IO=278h; IRQ=6,7,9,11,12]
 Device Mode [STD Printer Mode]
Use this item to change the Printer Port mode.
Configuration Options: [STD Printer Mode] [SPP Mode] [EPP-1.9 and SPP Mode] [EPP-1.7 and SPP
Mode] [ECP Mode] [ECP Mode and EPP-1.9 Mode] [ECP Mode and EPP-1.7 Mode]
