BCM RX87Q - Installing the CPU

24
1.7.1 Installing the CPU
To install a CPU

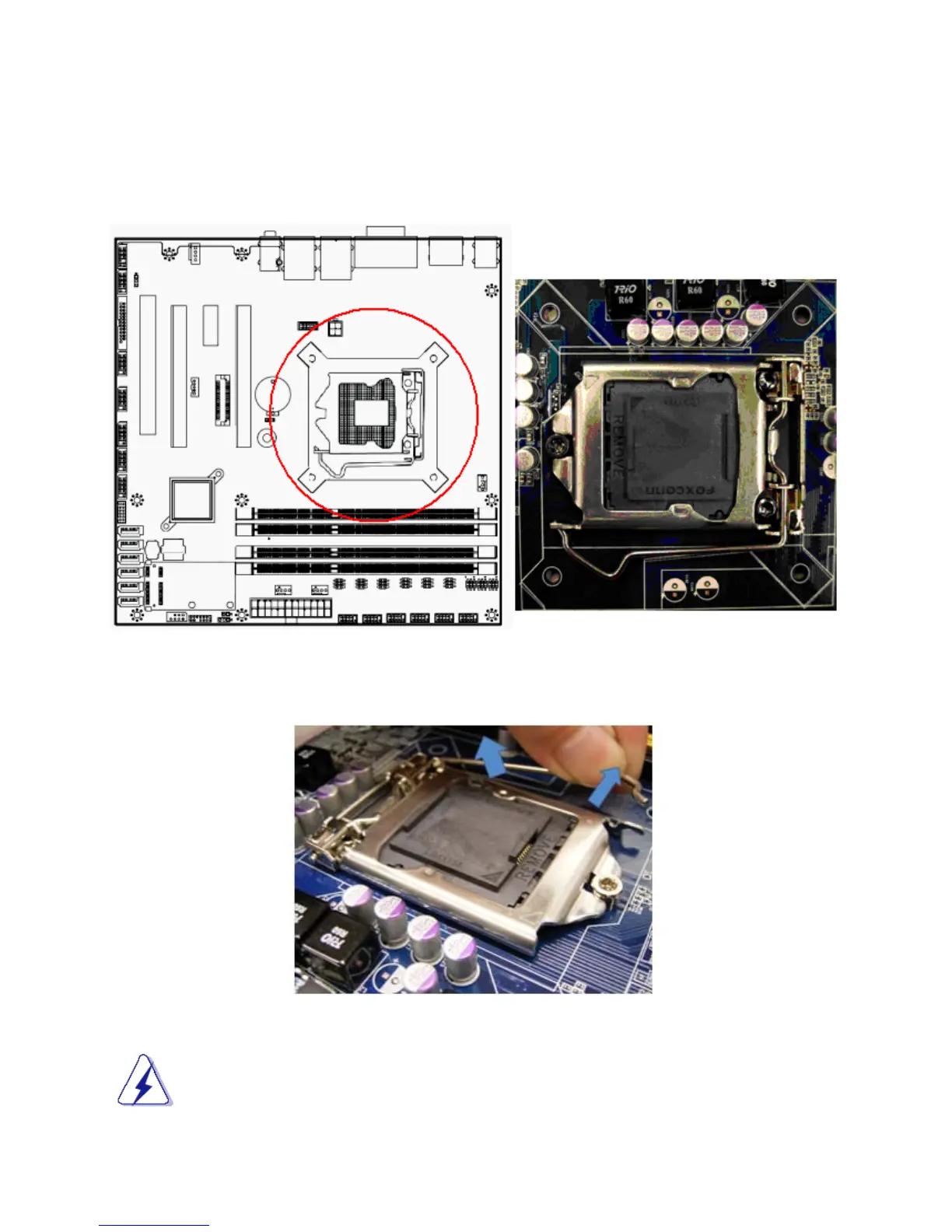

1. Locate the CPU socket (LGA1150 Socket) on the mainboard.
2. Unlatch the “CPU Socket Lever” by pressing the lever down and move it away from the main structure
of the socket.
To prevent damage to the socket pins, do not remove the “CPU Socket Cover” (PnP cap)
unless you are going to install a CPU.
