BCM RX87Q - Serial Port 4 Configuration

72
3.3.13 Serial Port 4 configuration
Set Parameters of Serial Port 4

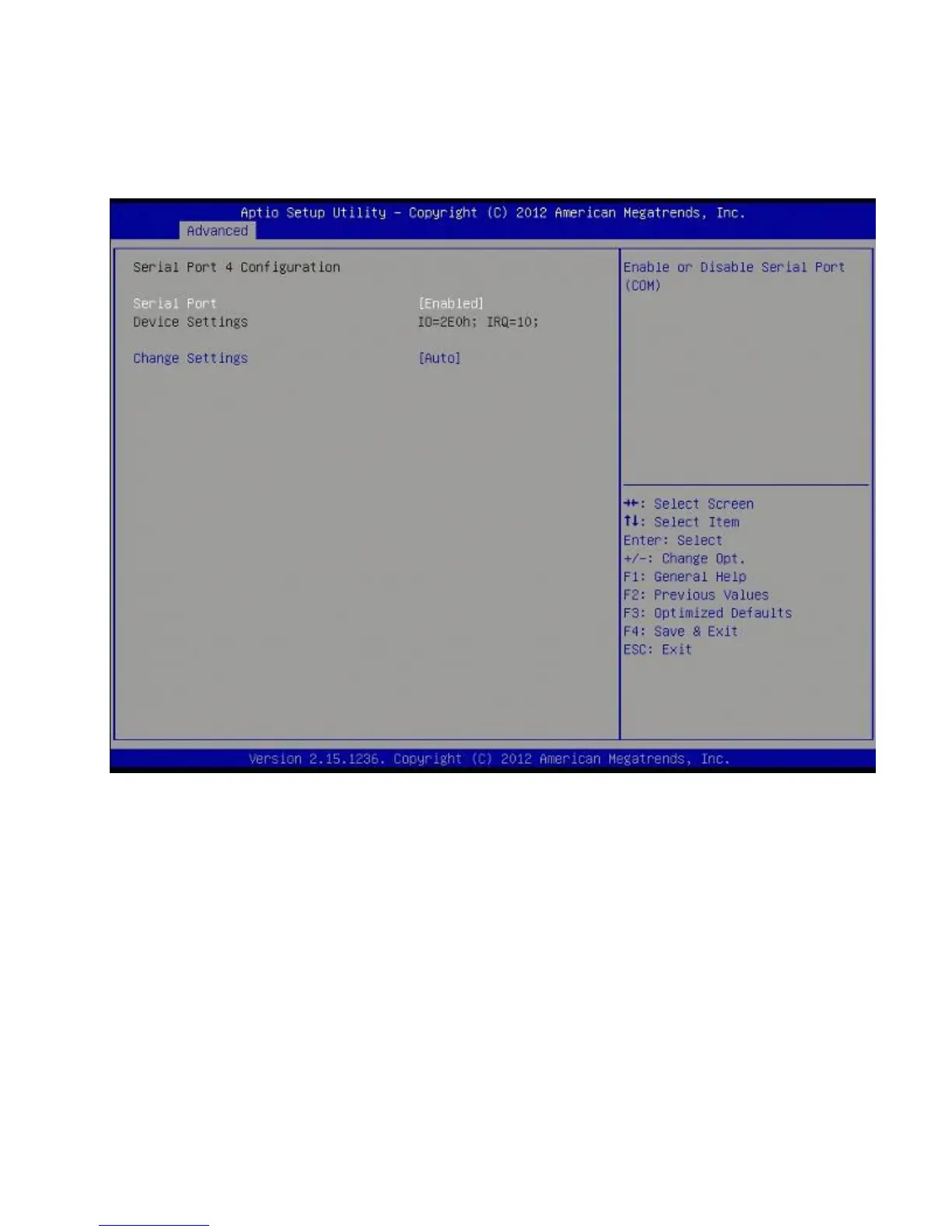

Serial Port 4 Configuration
 Serial Port [Enable]
Enable or Disable Serial Port.
Configuration options: [Disabled] [Enabled]
 Device Setting [IO=2E0h; IRQ=10]
 Change Setting[Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto] [IO=2E0h; IRQ=10] [IO=3F8h; IRQ=5, 10] [IO=2F8h; IRQ=5, 10] [IO=3E8h;
IRQ=5, 10] [IO=2E8h; IRQ=5, 10] [IO=2E0h; IRQ=5, 10] [IO=2F0h; IRQ=5, 10]
