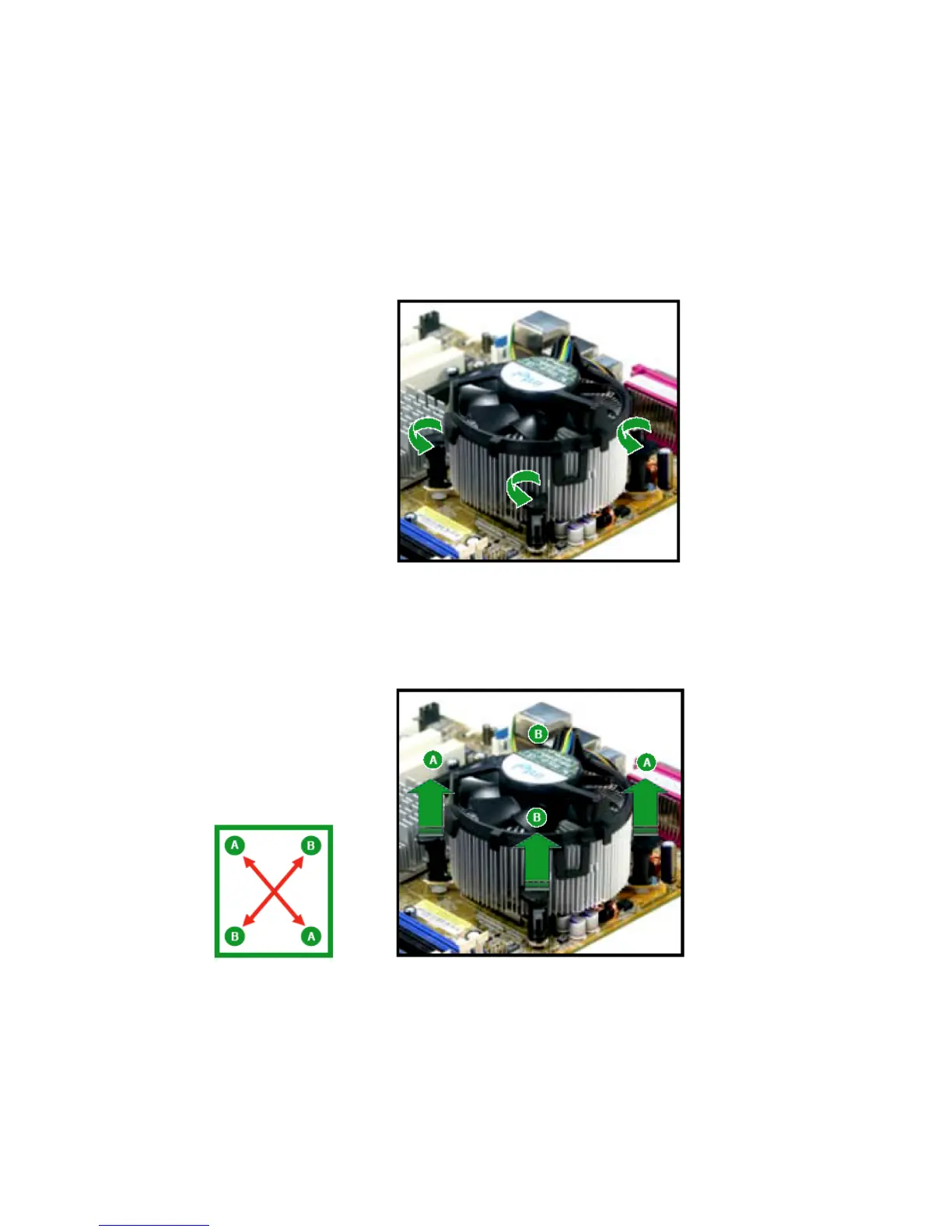

1.7.3 Uninstalling the CPU Heatsink and Fan.
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the connector on the mainboard.
2. Rotate each fastener counterclockwise.
4. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly
from the mainboard.
