BCM RX87Q - LPT Port Connector: LPT1; Front Panel Connectors: F_PANEL

44

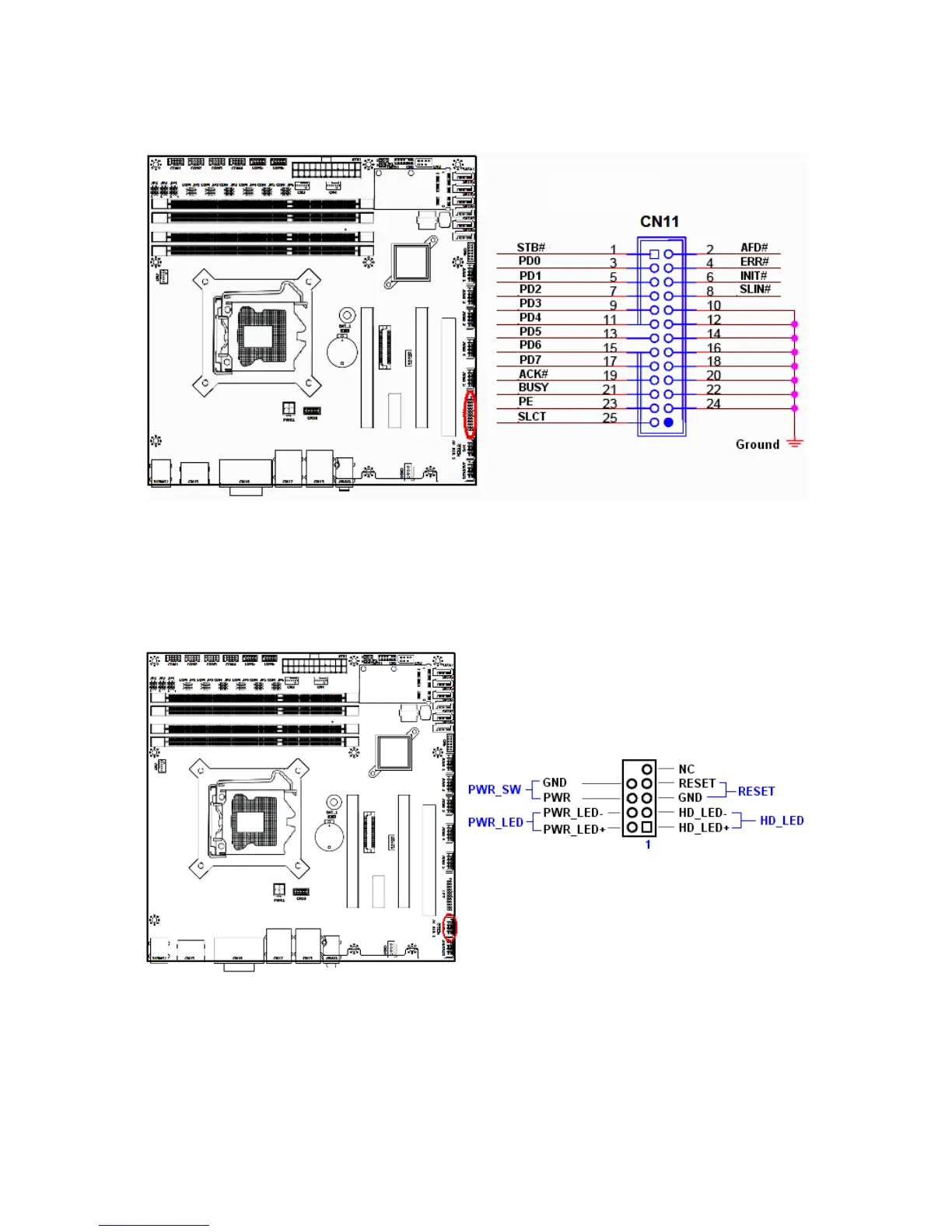

1.11.8 LPT Port Connector: CN11
1.11.9
Front Panel Connectors: FP_1
These connectors are for electrical connections to the front panel switches and LEDs. The “F_PANEL1”
connector is compliant with Intel® Front Panel I/O Connectivity Design Guide.
