BCM RX87Q - ME Lock; Digital I;O Connector: DIO

45

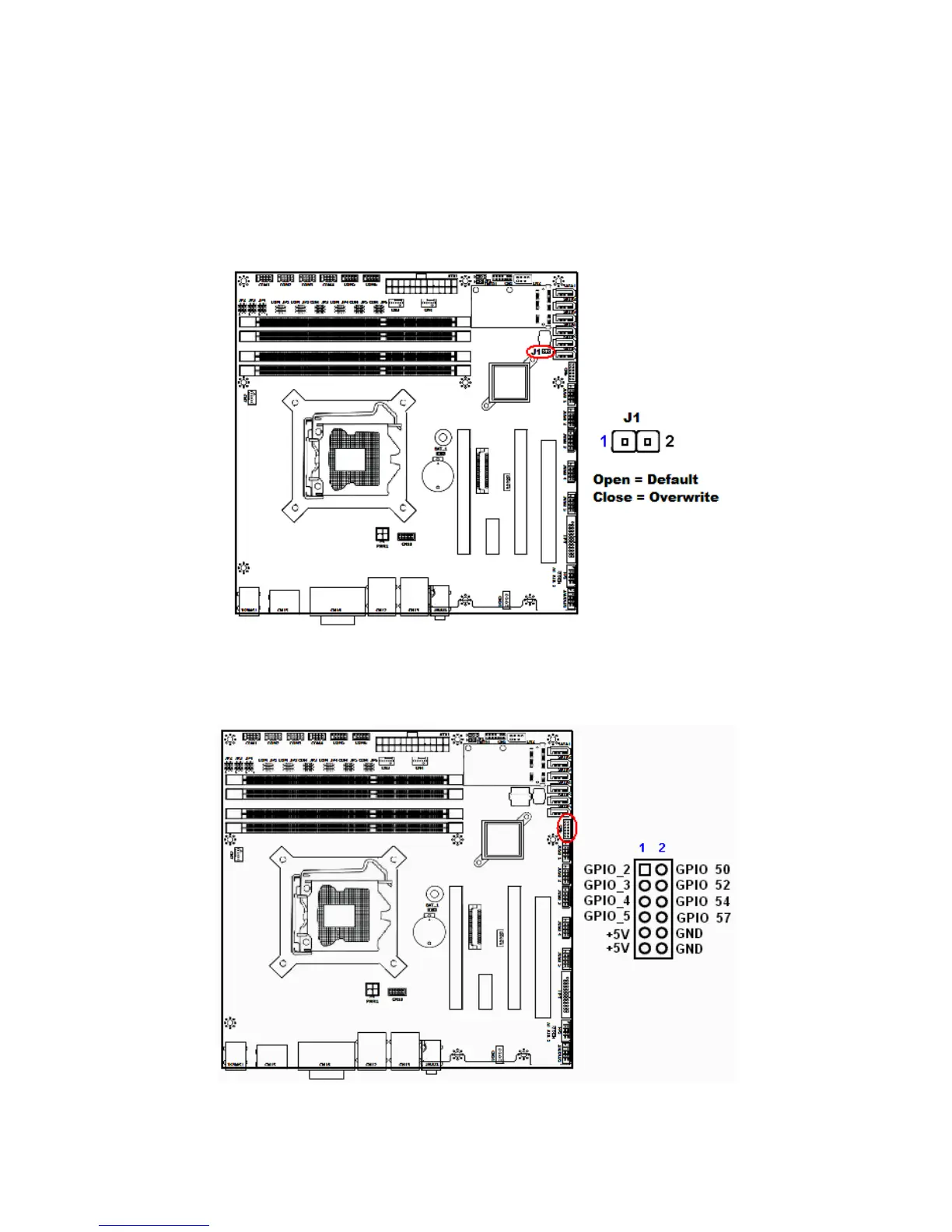

1.11.10 ME Lock Overwrite: J1
The “ME Lock Overwrite” header provides an option to program the entire BIOS even when the ME region
had ME lock applied during board manufacturing to prevent unintentionally write to BIOS ME region, ME
lock is recommended by Intel for system manufacture.
1.11.11 Digital I/O Connector: CN6
This header provides connections to GPIO ports.
