BCM RX87Q - Page 85

85

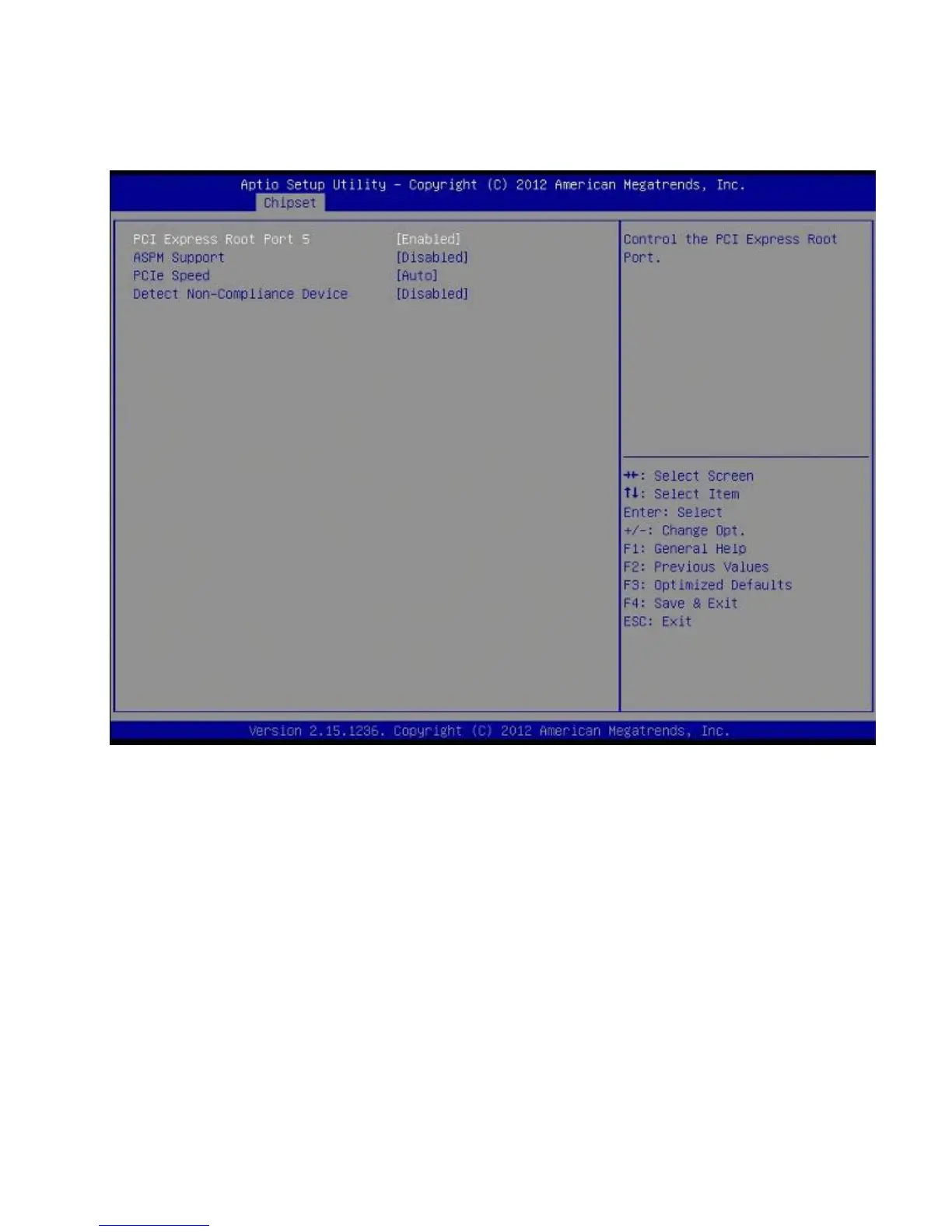

3.4.1.3 PCI Express Root Port 5
 PCI Express Root Port 5 [Enabled]
Control the PCI Express Root Port.
Configuration options: [Disabled] [Enabled]
 ASPM Support [Disabled]
Set the ASPM Level1: Force L0s – Force all links to L0s State, AUTO – BIOS auto configure, Disabled –
Disables ASPM
Configuration options: [Disabled] [L0s] [L1] [L0sL1] [AUTO]
 PCIe Speed [Auto]
Select PCI Express port speed.
Configuration options: [AUTO] [Gen1] [Gen2]
 Detect Non-Compliance Device [Disabled]
Detect Non-Compliance PCI Express Device. If enable, it will take more time at POST time
