BCN3D Epsilon W50 - Diagram

User Manual 18

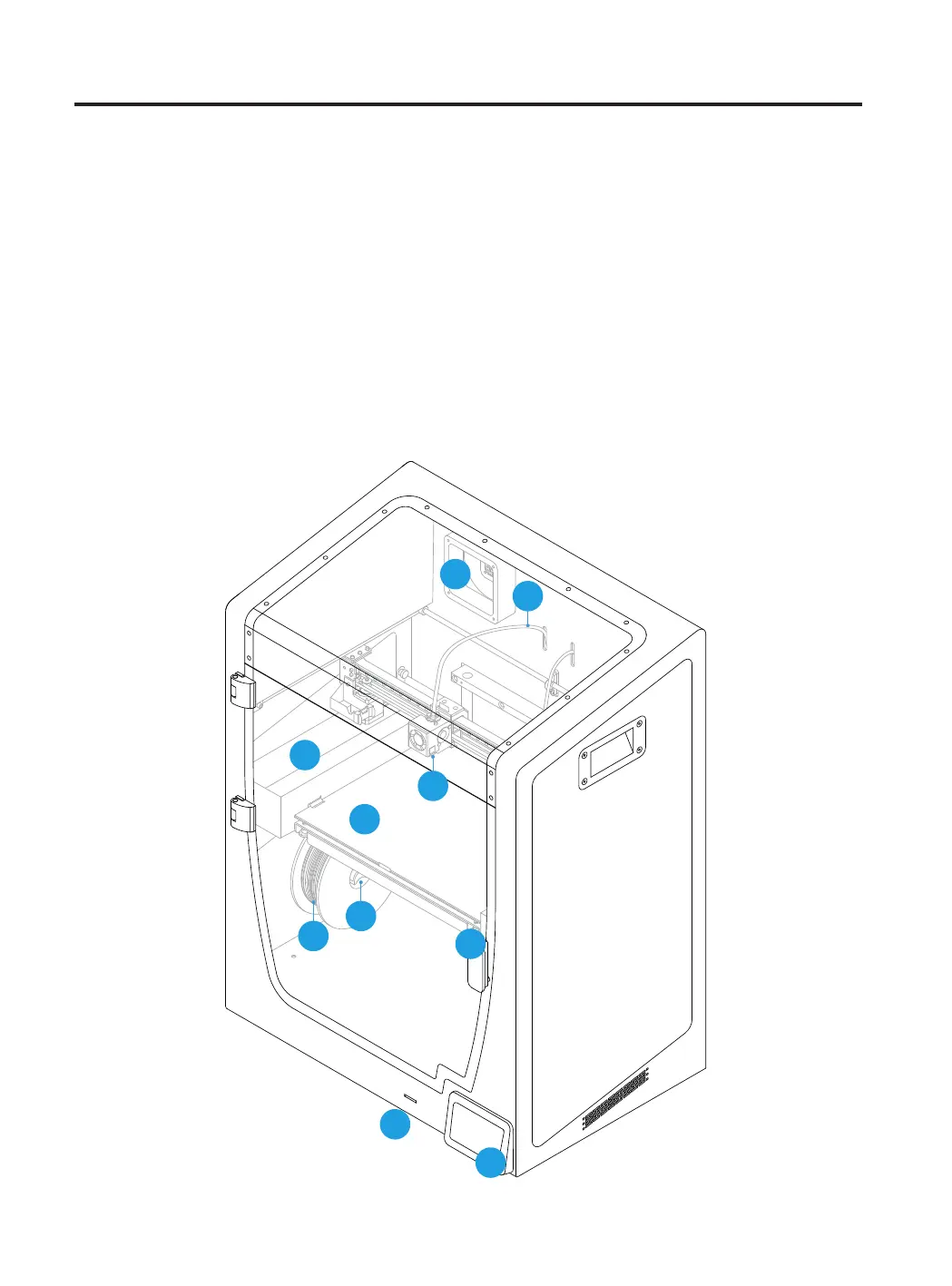

Diagram
1. Bowden tube
2. Extruder
3. Hotend
4. Glass printing surface
5. Purge Tank
6. SD card reader
7. Touchscreen
8. Spool holder
9. Filament spool
10. External filament spool
11. External spool holder
12. Power switch
13. Power plug
14. USB port
15. Ethernet port
16. Door handle
17. Filter fan
18. HEPA/Carbon filter
19. Filament Runout Sensor (FRS)
18
5
4
16
7
6
8
9
3
1
