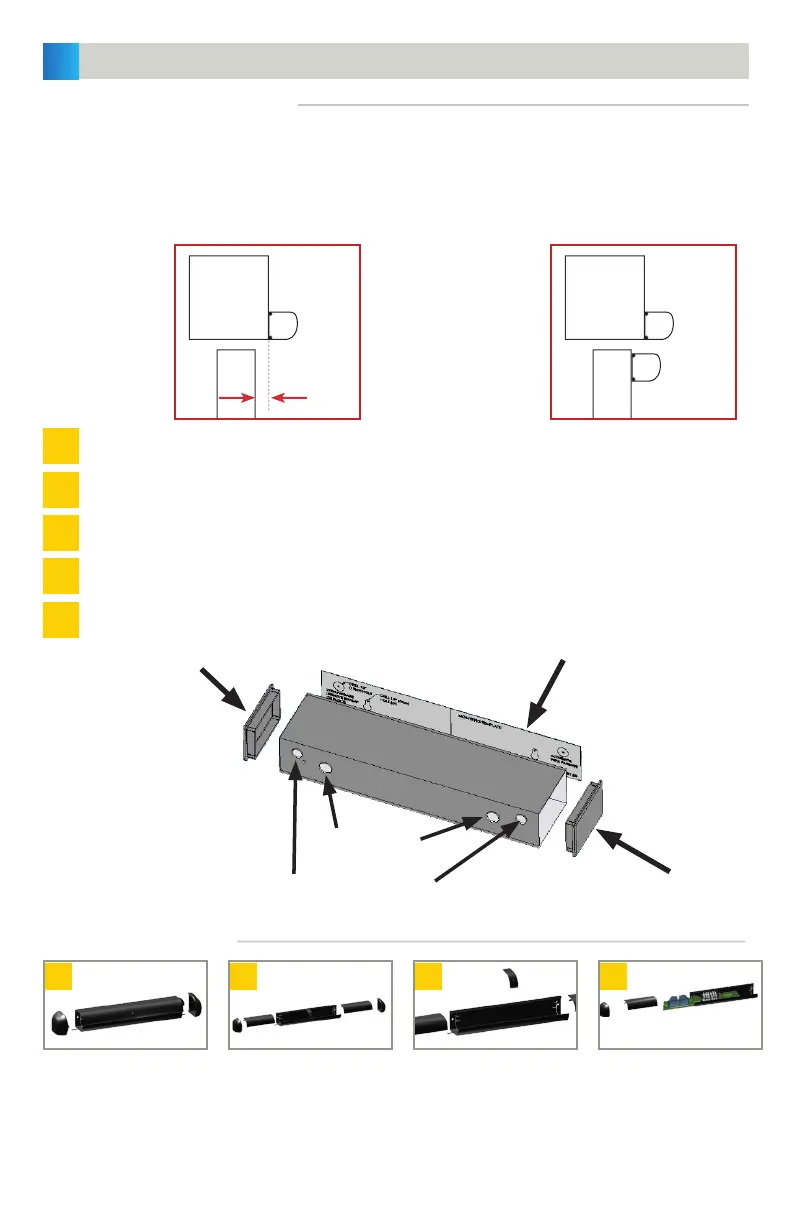

BEA BODYGUARD-T - MECHANICAL INSTALLATION; Bodymount Installation Requirements; Sensor Preparation Steps

75.5905.06 BODYGUARD-T 20190402 Page 3 of 12
1
1
4
5
2
3
1 2 3 4
Bodymounts are required for Bodyguard-T installations with one or both of the following circumstances:
• reveal (i.e. distance from door face to Bodyguard mounting surface) is less than 3 inches
• SuperScan-T is also used
Disregard this sub-section and proceed to "Sensor Preparation" if a Bodymount is not required for this application.
BODYMOUNT INSTALLATION
MECHANICAL INSTALLATION
REVEAL: WITH SUPERSCAN:
Door
Header
Door
Face
Bodyguard
Door
Header
Door
Face
Bodyguard
SuperScan
Apply the Bodymount mounting template to the desired location.
Drill pilot holes for mounting and wire passage.
Partially drill the 2 mounting screws into the pilot holes.
Remove the left end cap of the Bodymount for wiring harness routing.
Slide extrusion over mounting screws and hand-tighten the screws to secure to the block.
EXTRUSION
MOUNTING TEMPLATE
WIRE PASSAGE HOLES
MOUNTING
SCREW HOLES
END CAP
END CAP
SENSOR PREPARATION
Remove both end caps
from the sensor by
unscrewing each Phillips-
head screw.
Slide out each lens at
its respective end of the
sensor.
Pull out the center eye
shield from the top, while
rotating out. Do this
carefully, to avoid damage
to the light tube on the
inner side of the shield.
Slide the PCB out of the
extrusion and set aside.
