Page 2 of 4 75.5835.05 FALCON FAMILY 20190822Page 2 of 4 75.5835.05 FALCON FAMILY 20190822
1
2
1
2 3
0-9
1
2
FALCON (mtg ht: 16 ft) FALCON WIDE (mtg ht: 11.5 ft)FALCON XL (mtg ht: 8 ft)
• The sensor must be firmly fastened in order not to vibrate.
• The sensor must not be placed directly behind a panel or any kind of material.
• The sensor must not have any object likely to move or vibrate in its sensing field.
• The sensor must not have any fluorescent lighting in its sensing field.

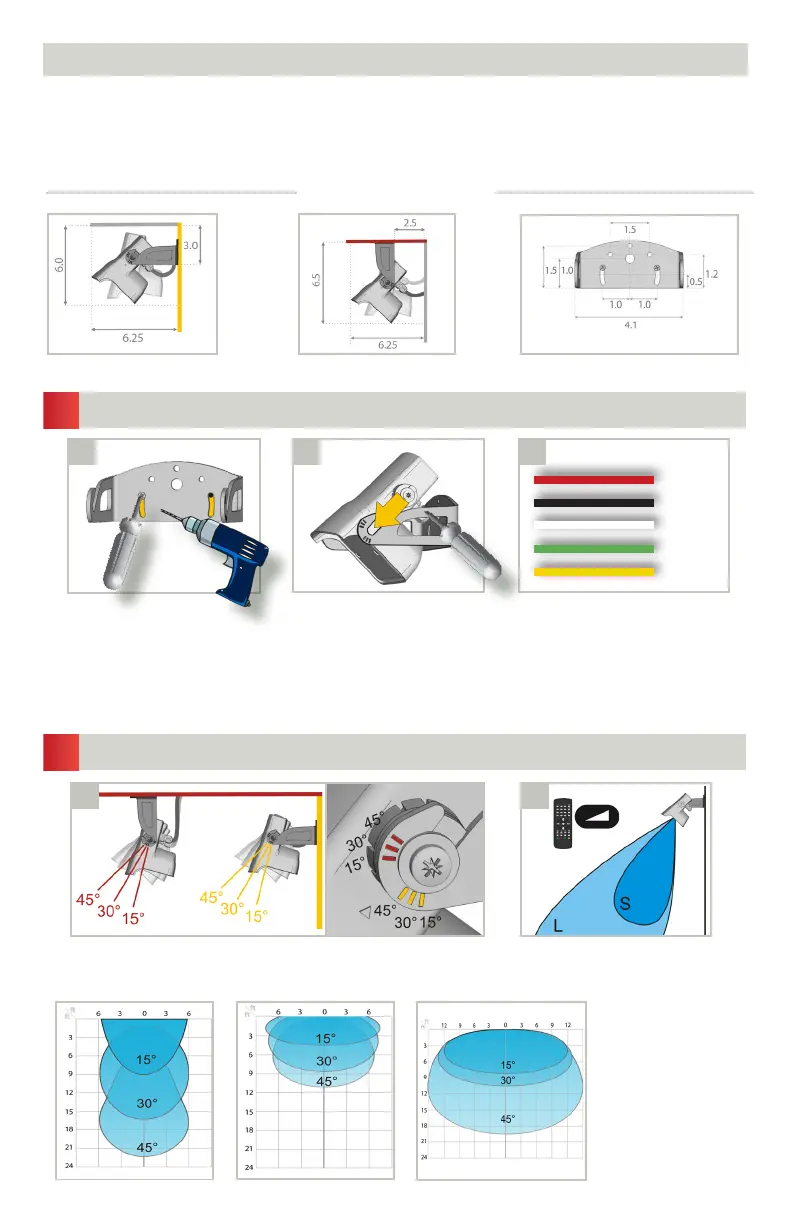

MOUNTING & WIRING
MOUNTING ADJUSTMENT
INSTALLATION TIPS
RED
BLACK
WHITE
GREEN
YELLOW
COM
NO
12-24
VAC/VDC
NC
US 
red 
black 
white 
green 
yellow 
 EURO
 green
 brown
 white
 yellow
 gray
European wire color
cross-reference:
Position the sensor on the bracket
and fasten the screws firmly.
Remove the bracket from the
sensor. Drill 2 holes accordingly.
Mount the bracket firmly.
Connect the wires to the door controller.
Choose between NO and NC contact.
Adjust the angle of the sensor to position the detection field.
Adjust the field size with the remote
control or the push buttons.
CEILING
WALL
All detection field
dimensions were measured
in optimal conditions and
with field size value 9.
Wall mounting Ceiling mounting Bracket dimensions
DIMENSIONS (inches)
